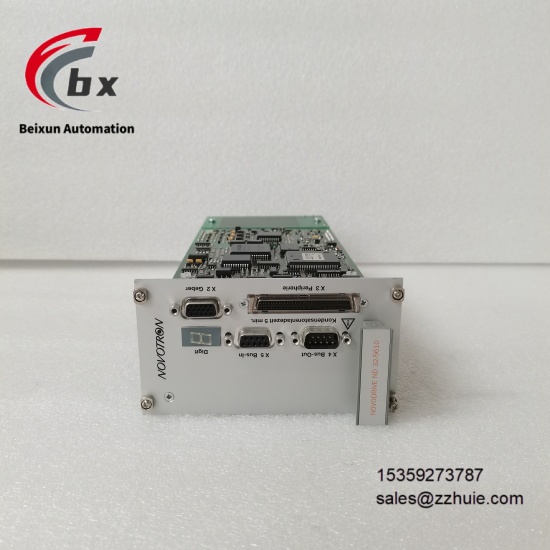

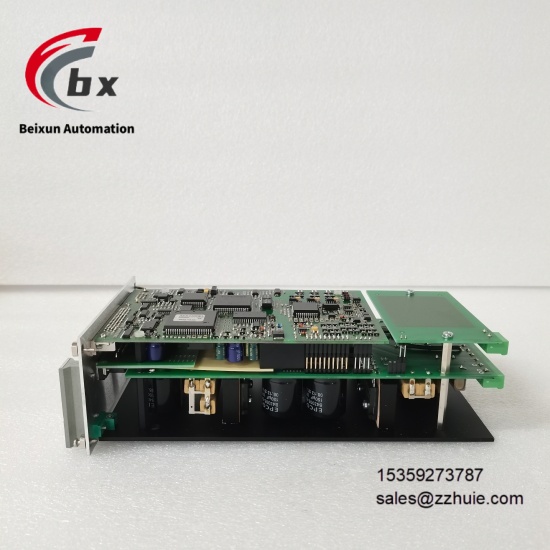

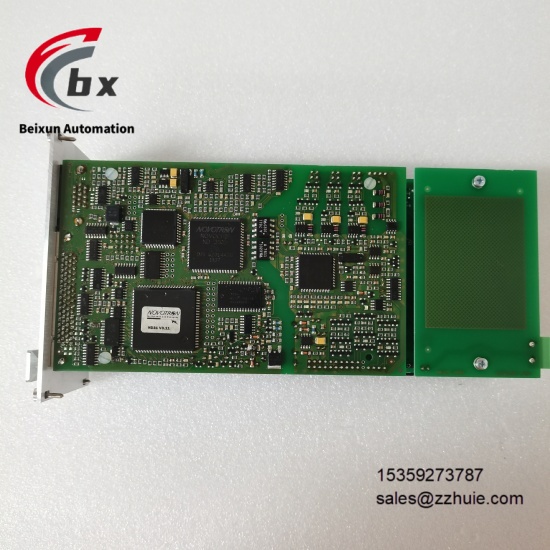

NOVOTRON ND32-5610 ND32-5610VS-101-011-31 Servo converter
Specific Parameters
Brand NOVOTRON
Product Series Servo System Series
Product Type Industrial Servo Converter, Precision Control Module
Main Model ND32-5610
Full Configuration Model ND32-5610VS-101-011-31
Country of Origin Not Clearly Marked (Implemented in Accordance with Industrial Control Industry Practices)
Rated Power Supply 220V
Output Frequency 50kHz
Operating Temperature Range -10℃ to 60℃
Storage Temperature Range -40℃ to 105℃
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions 150mm×100mm×30mm
Physical Weight 1.2kg
Digital Inputs/Outputs 32 Channels
Supported Protocols Ethernet/IP, Modbus TCP/IP
Oscillation Accuracy ±1%
Package Specifications Multiple Packages Optional (44 Pins to 100 Pins)
Core Functions Bidirectional Conversion of Digital and Analog Signals, Speed and Position Control of Servo Motors
Mounting Method Wall-Mounted, Rack-Mounted
Certification Standards CE, RoHS
Warranty Period 12 Months
Product Performance
Adopting high-precision conversion chips and advanced signal processing technology, it realizes error-free bidirectional conversion between digital signals and analog signals, with an oscillation accuracy of ±1%, eliminating the need for external oscillators, reducing the number of parts and the system failure rate.
It has high-precision motion control capability, can precisely regulate the speed and position of servo motors, adapts to multi-axis motion control scenarios, and can realize motion control of more than 64 axes in a 1ms cycle, meeting the needs of precision industrial control.
It has a fast response speed and efficient signal processing capability, can quickly respond to external control commands, ensure the timeliness and accuracy of servo motor movement, and improve industrial production efficiency.
Manufactured with high-quality components, it has a sturdy and durable structure, excellent anti-electromagnetic interference performance, can resist the interference of complex electromagnetic environments in industrial fields, and ensure the stability of signal transmission and equipment operation.
The operating temperature range covers -10℃ to 60℃, and the storage temperature range reaches -40℃ to 105℃. It can operate stably for a long time in harsh industrial environments such as high and low temperatures and humidity without performance degradation.
Supports mainstream industrial communication protocols such as Ethernet/IP and Modbus TCP/IP, can be seamlessly integrated into various industrial automation systems, and is convenient for linkage control with PLC, HMI and other equipment.
It has good scalability, can be expanded and combined according to actual production needs, realizes centralized control of more servo converters, and adapts to industrial production scenarios of different scales.
Adopting wall-mounted and rack-mounted dual installation methods, it has a compact structure and small size, occupies little installation space, is easy to install and disassemble, and facilitates equipment maintenance and system upgrades.
The code flash and data flash can be rewritten up to 100,000 times, with high flexibility in data writing and erasing, eliminating the need for additional external memory and reducing system configuration costs.
Equipped with complete protection functions, including built-in overcurrent, undervoltage, overtemperature, overload and other protection mechanisms, it can real-time monitor the equipment operation status, avoid equipment damage, and ensure the safe and stable operation of the system.
