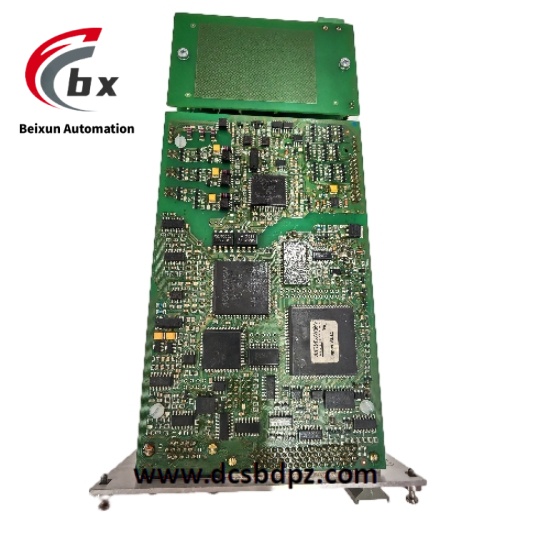

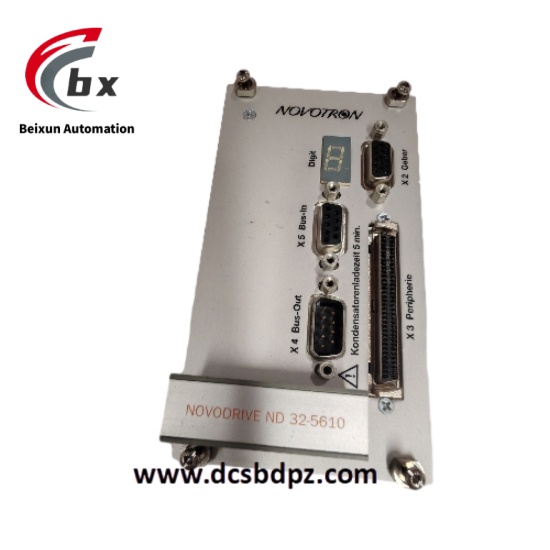

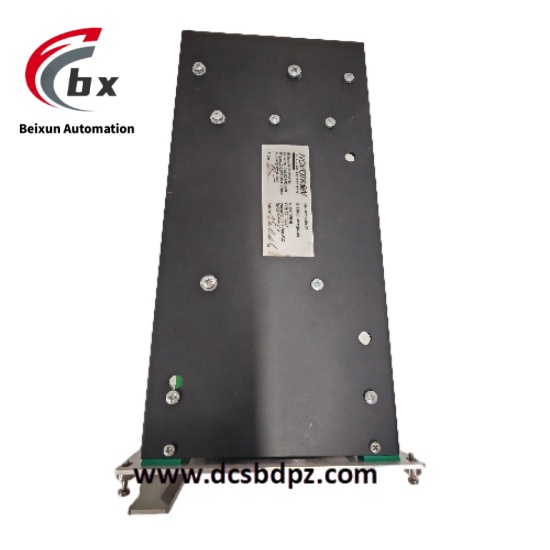

Novotron ND32-5610 ND32-5610VS-001-000-00 servo drive

Specific Parameters

Electrical Parameters
Rated Supply Voltage: 400V AC (three-phase)
Supply Voltage Range: 400V AC ±10%
Rated Output Current: 10A eff
Peak Output Current: 20A eff
DC Bus Voltage: 560V DC
Control Signal Input: Digital pulse/direction signals, analog 0-10V
Isolation Level: 2kV AC between input and output (1 minute)
Protection Functions: Overcurrent protection, overvoltage protection, overtemperature protection, short-circuit protection
Environmental Parameters
Operating Temperature: 0°C to 55°C
Storage Temperature: -25°C to 70°C
Relative Humidity: 5% to 95% (non-condensing)
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Mounting Method: 35mm standard DIN rail mounting (compliant with EN 60715)
Protection Class: IP20 (module itself)
Cooling Method: Compatible with natural cooling and forced air cooling

Product Performance

The ND32-5610 series adopts high-precision current loop and speed loop control algorithms, with position control accuracy up to ±0.01mm (when paired with 17-bit encoder). The dynamic response frequency is ≥1kHz, supporting rapid acceleration and deceleration operations with torque response time ≤1ms. The wide voltage input design ensures stable operation within ±10% grid fluctuation range, with conversion efficiency ≥94% under rated conditions.

Built-in adaptive filters and vibration suppression functions effectively reduce mechanical resonance during high-speed operation. Comprehensive protection circuits with response time ≤50μs can real-time monitor abnormal conditions such as overload and overtemperature and cut off output. Supporting parameter self-tuning function, control parameters are automatically optimized through software, with mean time between failures (MTBF) ≥100,000 hours, meeting industrial-grade continuous operation requirements.
