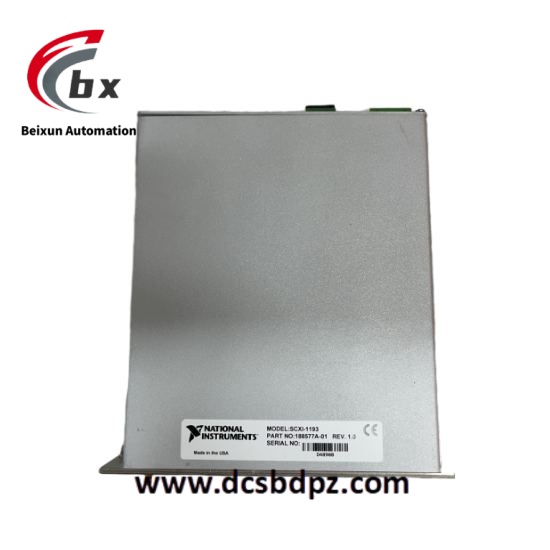

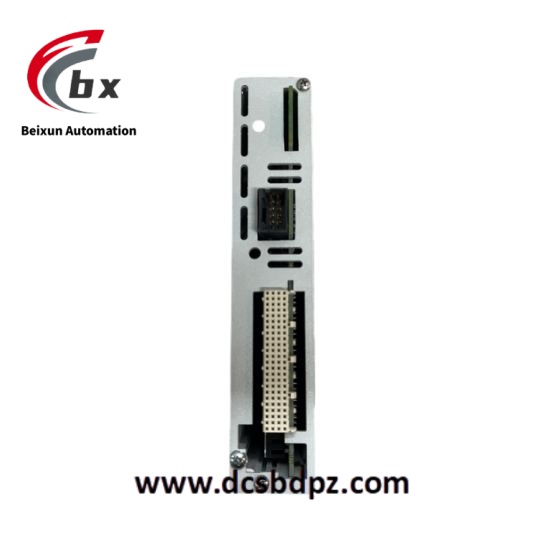

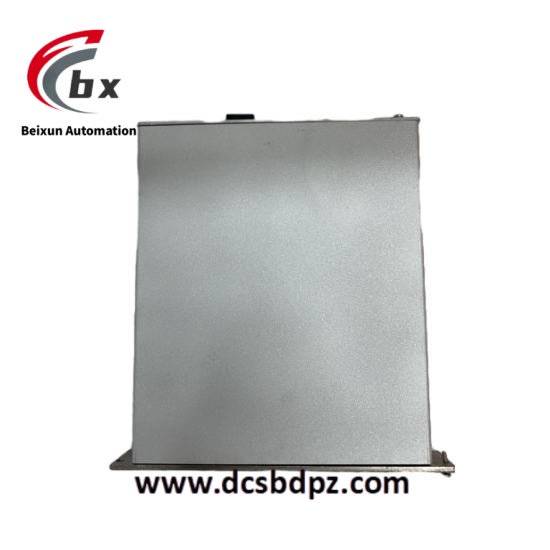

National Instruments SCXI-1193 Multiplexer switch module
Electrical parameters: The required DC power is+5V DC (50mA),+18.5V DC to+25V DC (170mA), and -18.5V DC to -25V DC (170mA).
Channel parameters: 32 channels, capable of implementing various topology structures, such as four-way 8 × 1 multiplexer, four-way 4 × 1 terminating multiplexer, two-way 16 × 1 multiplexer, etc.

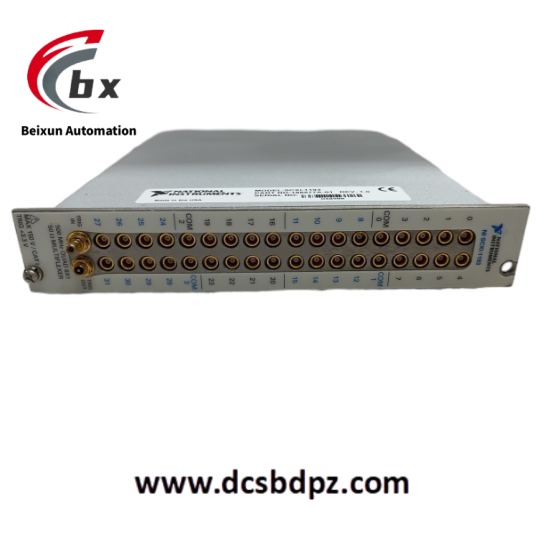

Connector type: 36 MCX sockets for I/O connection, 2 SMB sockets for trigger connection.
Physical parameters: The size is 1.2 x 6.8 x 7.8 inches and the weight is 2 ounces.
Working environment: The recommended working temperature range is 0 ° C to 50 ° C, the storage temperature range is -20 ° C to 70 ° C, and the non condensing humidity range is 5% to 85%.
Product Performance
High channel density: The 32 channel design can support large-scale signal routing and control, meeting the needs of multi-channel signal processing.
Wide frequency range: Supports a frequency range from DC to over 500MHz, suitable for various high-frequency signal processing scenarios.
Flexible configuration: Multiple topology structures can be implemented through programming, providing rich configuration options to adapt to different application needs.
Signal stability: High density push in MCX connectors are used to ensure the stability and reliability of signal transmission.
Scanning rate: The maximum scanning rate is 100 operations per second, which can quickly switch channels and achieve timely processing of different signals.
