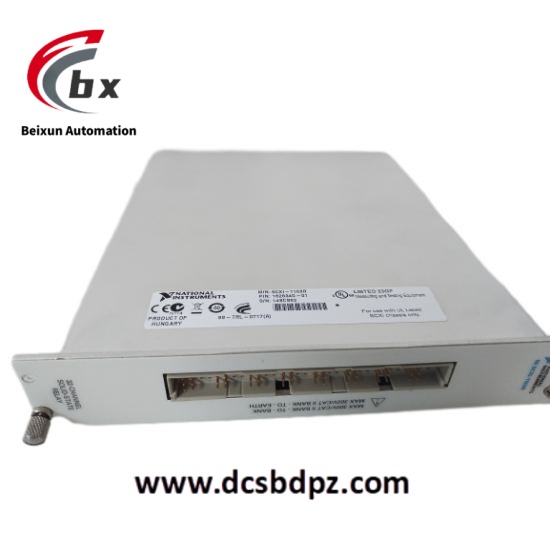

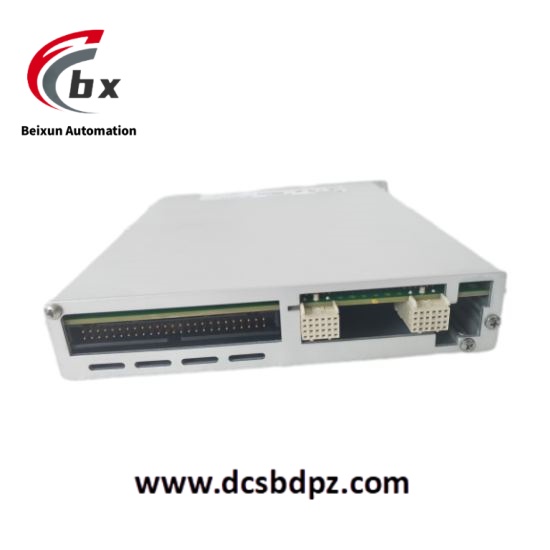

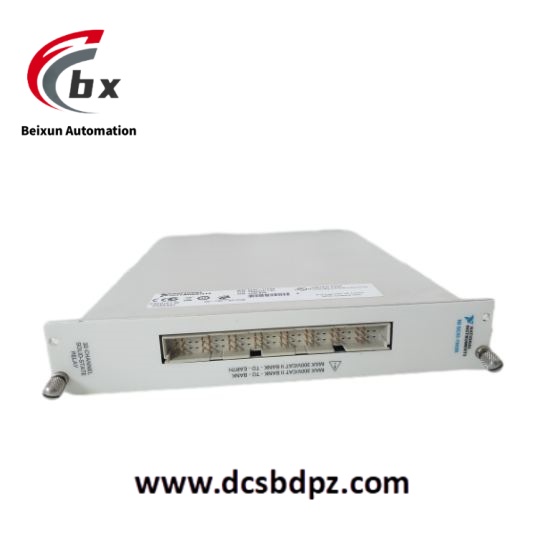

National Instruments SCXI-1163R Relay switch module
Relay specifications: 32 optically isolated solid-state relays.
Relay type: Form A (normally open).
Maximum switch voltage: 240V AC/240V DC.
Maximum switch capacity: 200mA.
Maximum operating voltage: 450V.
Maximum leakage current: 1 μ A.
I/O connector: 48 pin DIN C male.
Size: 6.8 x 8.0 x 1.2 inches.
Weight: 625g.
Recommended working temperature range: 0-50 ° C.
Product Performance
Good electrical isolation performance: Optical isolated solid-state relays provide excellent electrical isolation, effectively eliminating grounding loop problems, isolating the host from voltage that may damage equipment, and enhancing system stability and safety.
Strong switching capability: capable of switching high voltage loads up to 240V AC/DC and currents up to 200mA, suitable for controlling various electrical signals.
Flexible programming method: Supports various software programming such as LabVIEW, LabWindows, NI DAQ, etc., making it convenient for users to choose according to their own needs and development environment, which helps to shorten the development time of data acquisition and control applications.
High reliability: Due to the use of solid-state relays with no moving parts and no mechanical wear, they have a longer service life and higher reliability. Compared to electromechanical relays, they can better adapt to frequent switching work scenarios.
