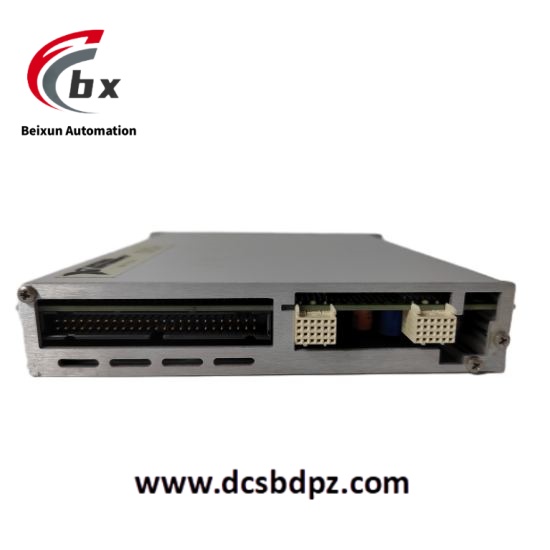

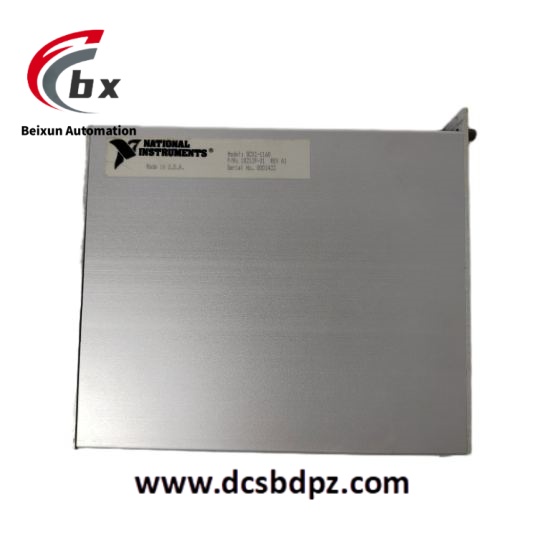

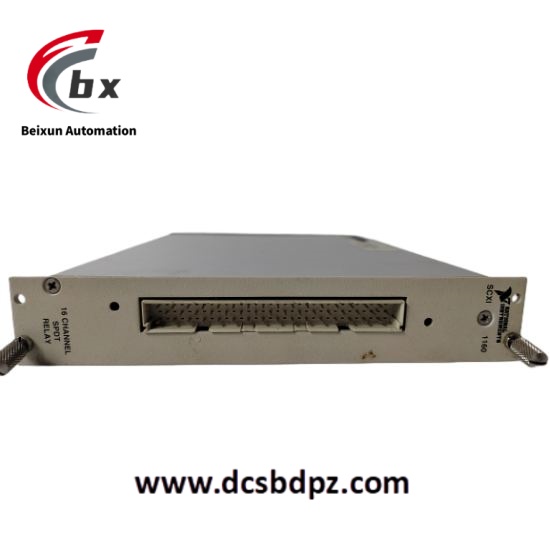

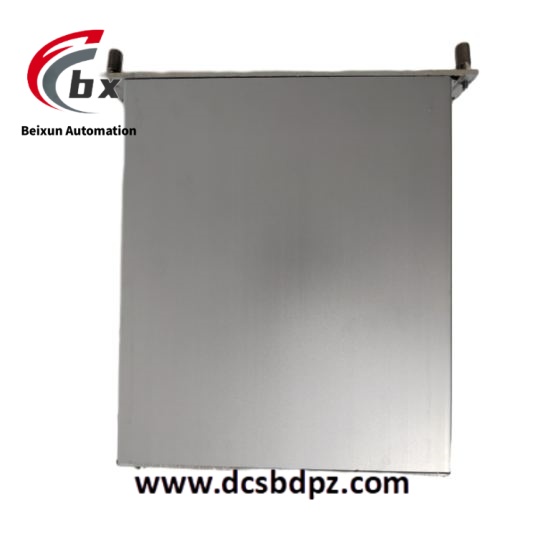

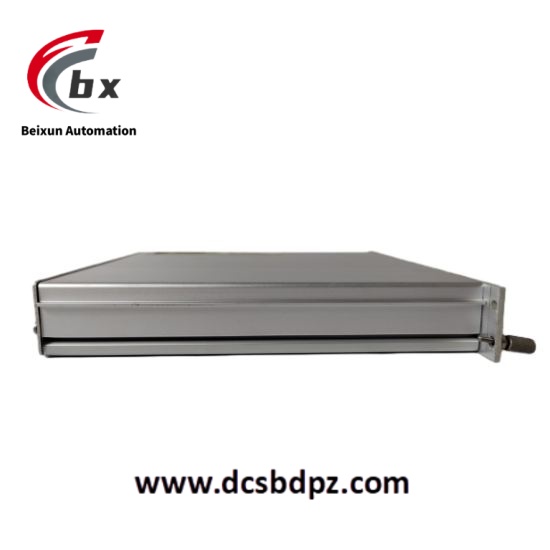

National Instruments SCXI-1160 Universal relay switch module
Relay specifications: 16 Form C (double pole double throw) relays.
Maximum switch capacity: 2A at 250V RMS and 2A at 30V DC.
Maximum switching rate: 50 times/second (low-level load).
Relay action and release time: 10ms.
Offset voltage: typical value of 3 μ V.
Relay type: electromechanical, latch type.
Electrical isolation: Contact to coil 250V RMS isolation.
Size: 1.2 x 6.8 x 8.0 inches.
Certification: UL certification.
Product Performance
Strong signal processing capability: able to switch, route, and control medium level signals, suitable for various electrical signal control scenarios.
Low on resistance and thermal offset: The negligible on resistance and low thermal offset characteristics ensure the accuracy and stability of signal transmission, reducing signal distortion and errors caused by resistance and thermal effects.
Good software compatibility: using NI Switch driver software, compatible with LabVIEW, LabWindows/CVI and other software packages, making it convenient for users to program and control.
High scalability: Multiple modules can be combined and used to control and switch thousands of signals in one or more chassis, meeting the needs of large-scale signal control.
