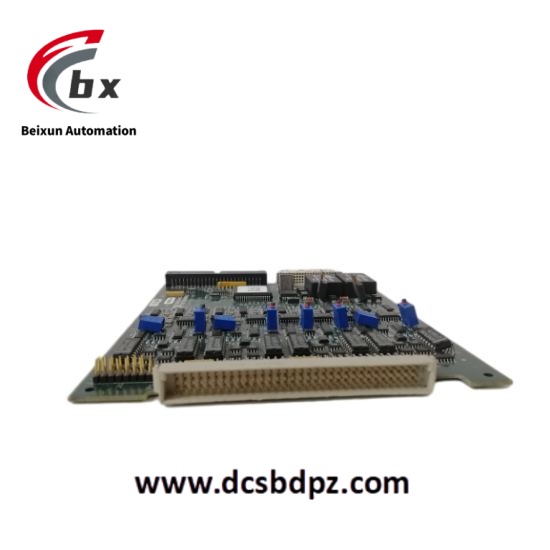

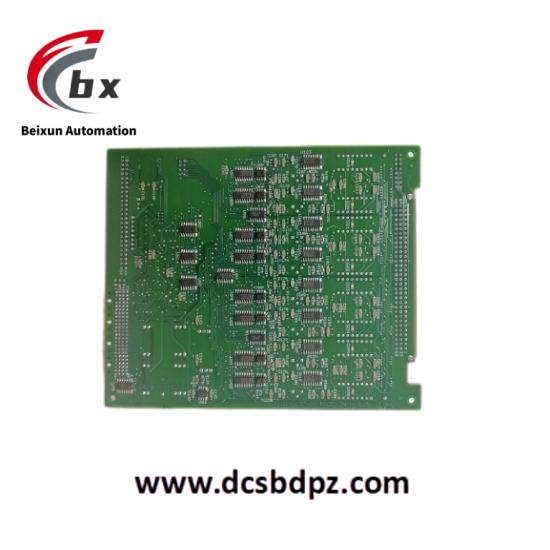

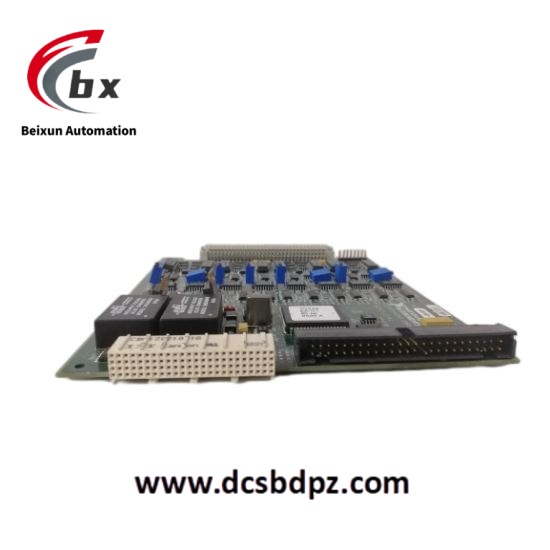

National Instruments SCXI-1141 Low pass filter input module
Number of channels: 8 channels.
Filter type: 8th order elliptical filter.
Cut off frequency range: 10 Hz to 25 kHz.
Sampling rate: up to 333 kS/s.
Attenuation rate: 135 dB/octave band.
Input range: ± 50 mV to ± 5 V.
Voltage: ± 5 V (measurement category I channel to ground), ± 10 V (measurement category I channel to channel).
Size: 1.2 x 6.8 x 8.0 inches.
Product Performance
Superior filtering performance: using an 8th order elliptical filter with good filtering characteristics, it can achieve sharp filter roll off, effectively filter out high-frequency noise and interference in the signal, and perform well in anti aliasing applications.
Programmable gain: Each channel has a programmable gain with an input range of ± 50 mV to ± 5 V, which can be flexibly adjusted according to the actual signal amplitude to achieve the best measurement accuracy and dynamic range.
Flexible cut-off frequency setting: By combining analog filters and switched capacitor filters, 10000 discrete software programmable cut-off frequencies can be provided, ensuring flexibility while maintaining the low noise performance of traditional continuous time active filters.
External clock synchronization: With external clock input and output functions, it is convenient to synchronize with external clock sources in tracking filter applications, accurately set the filter cutoff frequency, and meet some application scenarios with high requirements for clock synchronization.
High reliability and stability: Using high-quality electrical and mechanical components, and undergoing strict quality control and testing, it can operate stably and reliably in harsh industrial environments or laboratory conditions.
