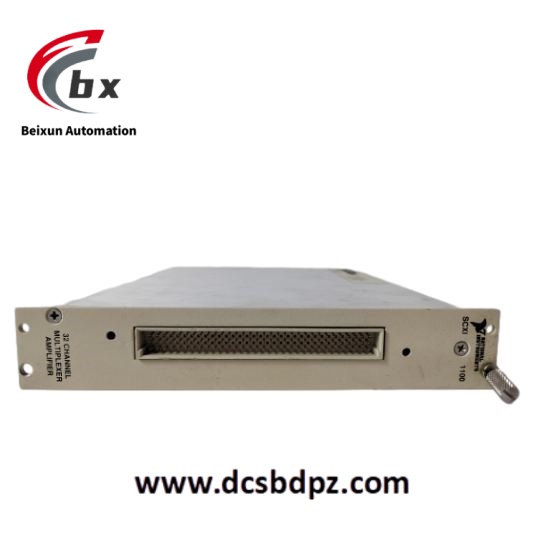

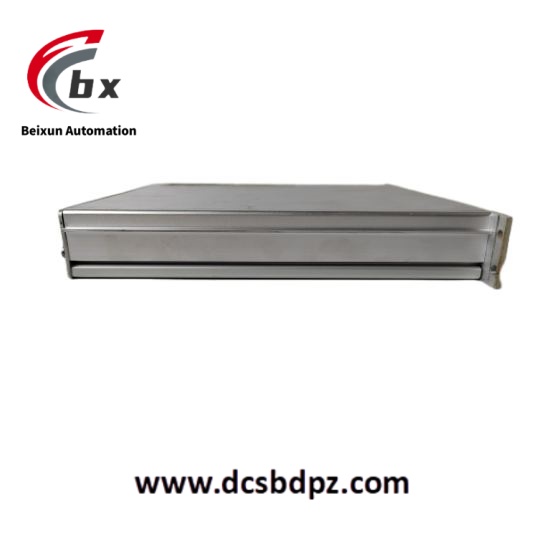

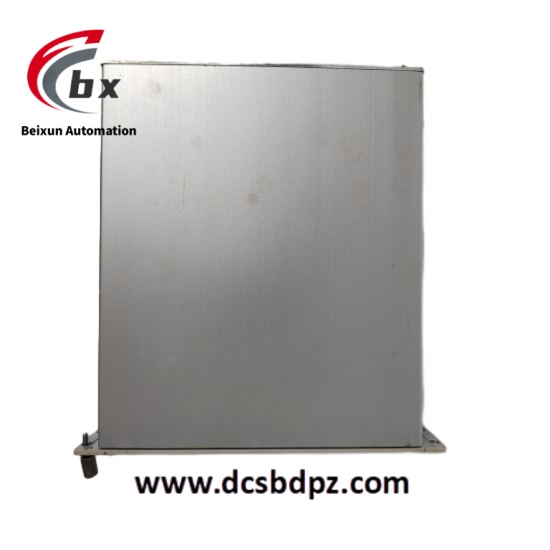

National Instruments SCXI-1100 Measurement system module
Number of channels: 32 differential channels.
Input coupling: DC coupling.
Maximum operating voltage: ± 10V.

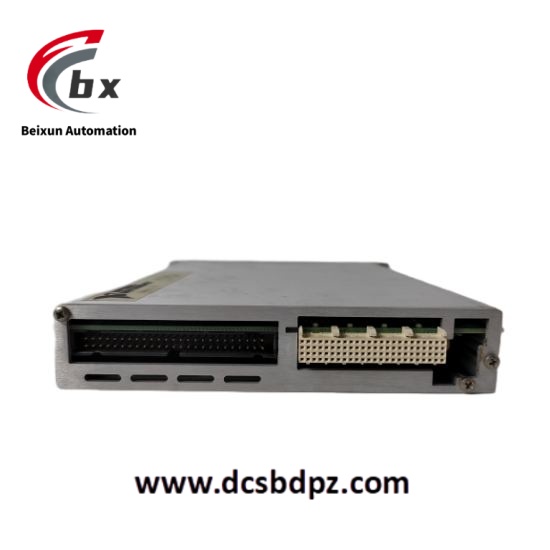

I/O connector: The front connector is a 96 pin DIN C-type male connector, and the rear connector is a 50 pin ribbon cable male connector.
Size: 1.2 x 6.8 x 8.0 inches.
Recommended working temperature range: 0 ℃ to 50 ℃.
Related part numbers: 776572-00, 181690-01, etc.
Compatible devices: Can be used with NI’s MIO boards (such as PC-LPM-16, Lab LC, Lab PC+, etc.), but these boards can only perform single channel reading and cannot scan modules. It can also be used in conjunction with various terminal blocks, such as SCXI-1300, SCXI-1303, etc.
Product Performance
Strong signal conditioning capability: able to adjust voltage signals of different amplitudes, adapt to signals ranging from millivolts to volts, and meet the output signal measurement needs of various sensors and testing instruments.
Practical filtering function: A 4Hz low-pass filter can be selected through jumper wires, which can effectively filter out high-frequency noise in the signal, making the collected data more accurate and stable, especially suitable for measuring slowly changing signals.
High channel multiplexing efficiency: 32 differential channels adopt multiplexing technology, which can transmit signals from multiple channels to one channel of the control data acquisition instrument in a time-sharing manner, improving the channel utilization of the data acquisition system and reducing costs.
Rich software support: tightly integrated with NI’s software platform (such as LabVIEW), users can easily configure module parameters, control the data acquisition process, and perform data analysis and visualization display through the software, enabling convenient and fast implementation of various measurement and control tasks.
