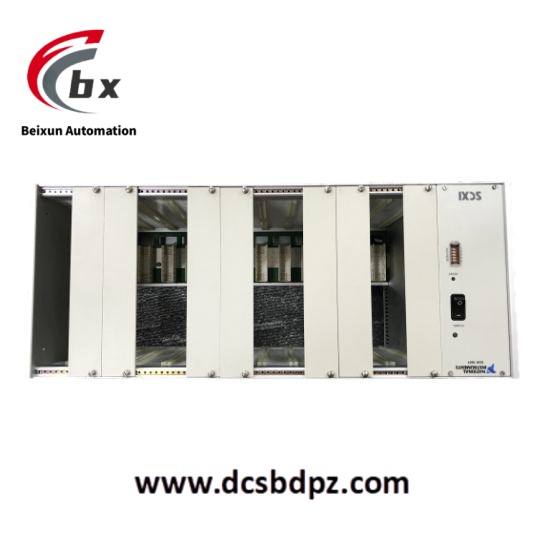

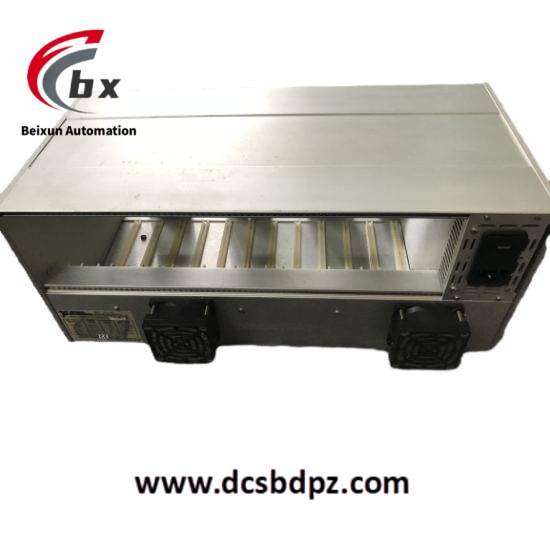

National Instruments SCXI-1001 Signal conditioning chassis
Specific parameters
Number of slots: 4
Maximum sampling rate: 1 ms/s
Resolution: 16 bits
Input channels: up to 64 differential channels or 128 single ended channels
Input voltage range: ± 10 V
Input impedance: 1 M Ω | | 10 pF
Output channels: up to 64
Output voltage range: ± 10 V
Output impedance: 100 Ω
Analog bandwidth: DC to 200 kHz
Digital I/O: 8 bidirectional lines
Trigger lines: 8
Size: 211 mm × 43 mm × 219 mm
Weight: 1.1 kg
Working temperature range: 0 ° C to 55 ° C
Relative humidity: 10% to 90%, non condensing
Power requirements: 5 V DC, 2.5 A
Product Performance
Multi channel acquisition capability: Provides multiple input channels to simultaneously acquire multiple signals, greatly improving the efficiency and flexibility of data acquisition, suitable for applications that require monitoring multiple signals simultaneously.
High precision measurement: Equipped with high-precision converters and high resolution, it can achieve accurate data measurement and acquisition, ensuring the accuracy and reliability of the collected data, and meeting the high requirements for measurement accuracy in experimental and industrial applications.
High speed sampling: With a high-speed sampling rate, it can collect and convert digital signals at a high speed, meeting the needs of real-time data acquisition and measurement, and accurately capturing rapidly changing signals.
Programmable and Scalable: It usually has programmability, and users can set parameters and customize functions through programming or configuring software. It also has expansion slots or interfaces that can be connected to other modules or devices for expansion, enabling more functions and applications.
Flexible connection methods: Supports multiple connection methods, such as plug-in connectors or terminal blocks, making it convenient for users to connect and wire, and easy to install and maintain.
