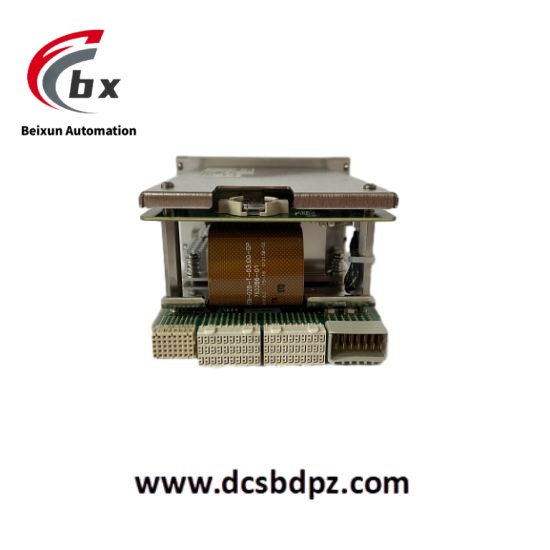

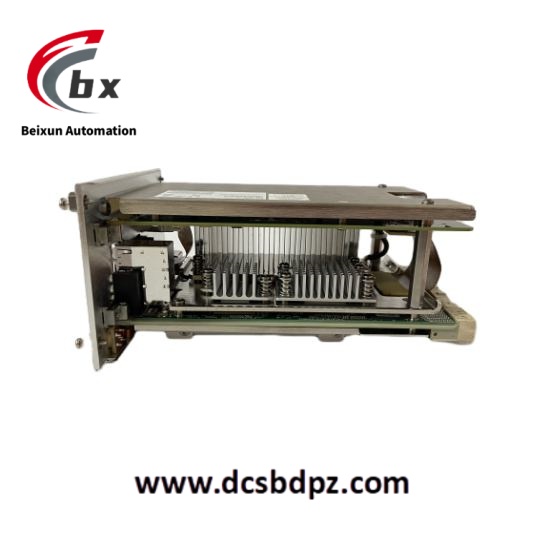

National Instruments PXIE-8840QC High performance embedded controller
Specific parameters
Processor: Adopting Intel Core i7-5700EQ quad core processor, based on Broadwell architecture, manufactured in 14nm process, with a base frequency of 2.6GHz and a maximum turbo frequency of 3.4GHz, equipped with 6MB Intel Smart Cache.
Memory and Storage: The standard configuration is 4GB single channel 1600MHz DDR3L RAM, which can be expanded up to 8GB. It integrates a hard drive to provide stable storage space, but the specific hard drive capacity may vary depending on the configuration.
Interface:
Ethernet ports: Two 10/100/1000BASE TX (Gigabit) Ethernet ports, supporting high-speed data transmission.
USB interface: Two USB 3.0 ports and four USB 2.0 ports, convenient for connecting various peripherals.
Other interfaces: may include other peripheral interfaces such as ExpressCard, as well as a serial port and other peripheral I/O, depending on the product configuration.
Bandwidth: Depending on different configurations, the maximum bandwidth can be 2GB/s or 8GB/s.
Operating System: Supports operating systems such as Windows, Linux, and VxWorks.
Physical characteristics: Four width 3U PXI Express module, weighing 2.91 lbs, recommended operating temperature range of 5 ° C to 50 ° C, storage temperature range of -40 ° C to 65 ° C.
Product Performance
High performance computing: The powerful quad core processor provides excellent computing power and can quickly handle complex testing and control tasks, making it suitable for processor intensive applications and greatly reducing testing time.
Strong real-time performance: Supports real-time operating systems, ensuring real-time control and data collection capabilities, and performs well in application scenarios that require high-precision time synchronization and data processing.
Good scalability: Supports multiple modules and I/O cards, can be flexibly configured and expanded to meet different application needs. It also supports parallel processing of multiple controllers and can be extended to distributed systems, improving the scale and performance of testing and control.
Good compatibility: Compatible with NI’s hardware and software, easy to integrate and expand existing systems, reducing the cost of system construction and upgrades.
Easy to use: Provides user-friendly software and graphical interface for users to quickly develop and debug applications.
High reliability: Adopting industrial grade design and materials, it can operate stably in harsh environments, suitable for long-term continuous work, and can ensure the stability and reliability of the system.
