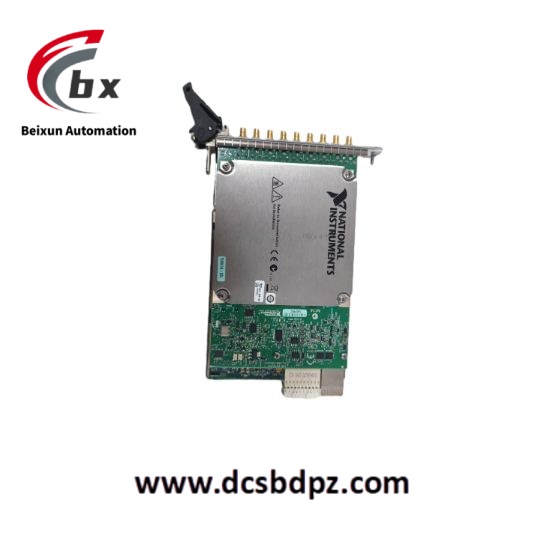

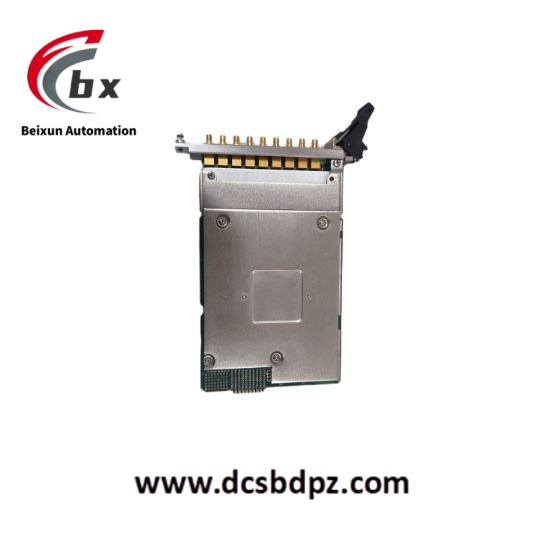

National Instruments PXIE-5105 Oscilloscope module
Number of channels: 8 channels.
Bandwidth: 60MHz.
Sampling rate: Real time sampling rate up to 60MS/s (millions of samples per second).
Resolution: 12 bits.
Input range: Independent channels can choose 50mVpp to 30Vpp input.
Memory: There are three types of onboard memory available: 16MB, 128MB, and 512MB.
Trigger mode: Supports multiple trigger modes such as edge, window, lag, and digital trigger.
Size: 8.43 x 0.8 x 5.1 inches, weight is 18.3 ounces.
Power consumption: 23W.
Working temperature: 0 ° C to 55 ° C, storage temperature is -40 ° C to 71 ° C.
Product performance
High resolution and high precision: A 12 bit resolution can accurately quantify input signals, capture detailed information of signals, reduce measurement errors, and is of great significance for detecting and analyzing weak signals, helping to improve measurement accuracy and reliability.
Multi channel synchronous acquisition: With the ability to sample 8 channels simultaneously and good synchronization between channels, it can be used for synchronous monitoring and analysis of multiple related signals, meeting the needs of multi signal synchronous measurement in complex systems. For example, in scenarios such as three-phase power system monitoring and multi-channel audio signal processing, it can accurately obtain the phase relationship and timing characteristics between each channel signal.
Flexible input configuration: Each channel can independently set parameters such as coupling mode, impedance, voltage range, and filtering, which can adapt to different types and amplitudes of input signals, enhancing the universality and flexibility of the instrument, and facilitating users to customize configurations according to actual measurement needs.
Rich triggering functions: Multiple triggering modes can help users accurately capture signal events of interest. Even in complex signal environments, they can quickly locate the signal segments that need to be analyzed, improving the efficiency and pertinence of signal acquisition.
Powerful synchronization capability: With NI’s SMC technology, not only can multiple PXIE-5105 devices be synchronized within a single chassis, but they can also be synchronized with other NI analog and digital instruments to build large-scale mixed signal testing systems, providing strong support for the testing and verification of complex systems.
