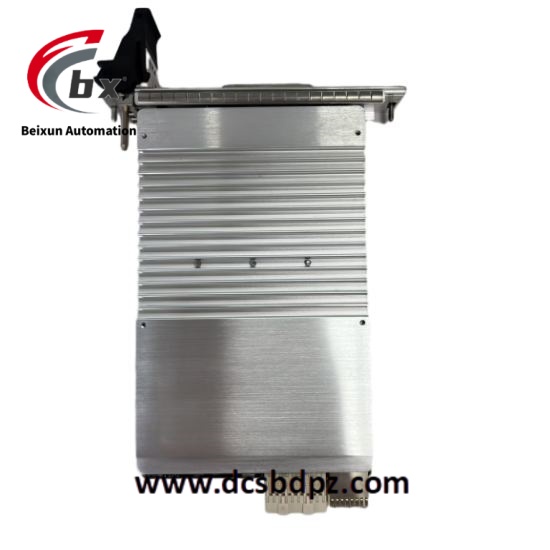

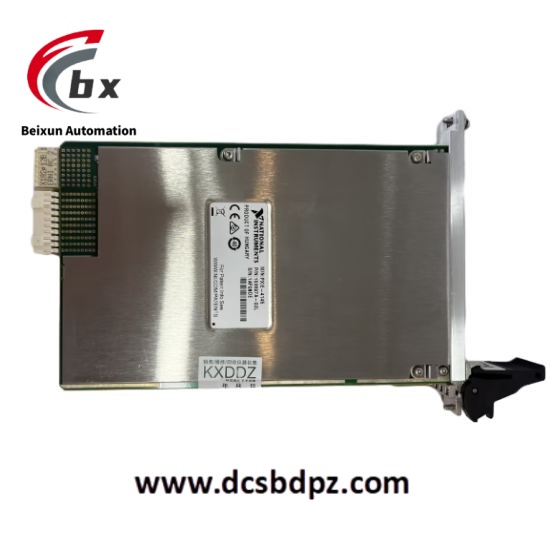

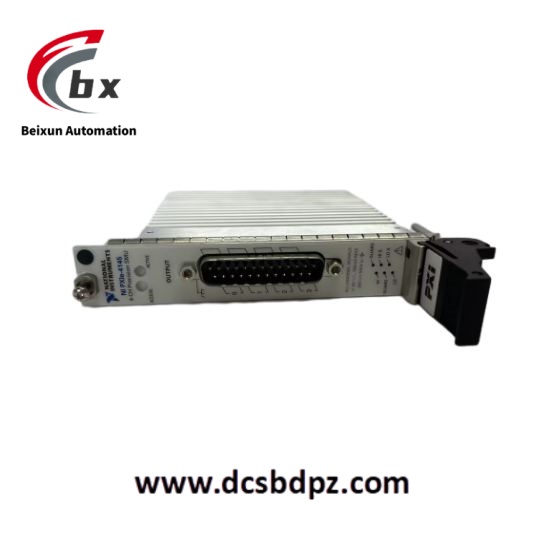

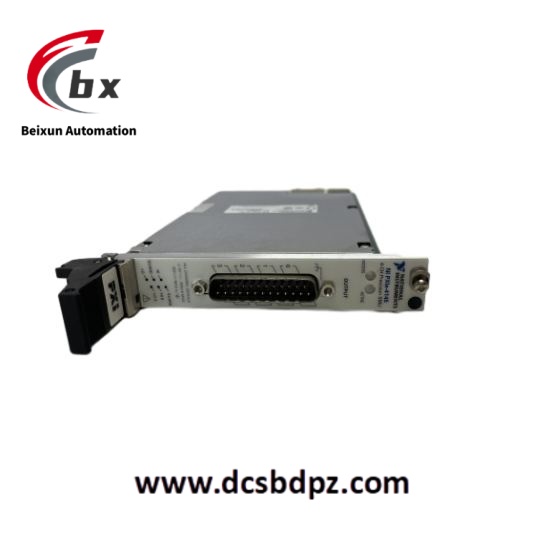

National Instruments PXIE-4145 Scalable embedded controller module
Specific parameters
Electrical parameters: Input voltage range of 12-48VDC, output voltage of 5VDC, maximum output current of 10A, efficiency greater than 90%.
Size and weight: The size is 170mm x 105mm x 32mm, and the weight is approximately 120g.
Temperature range: The operating temperature range is from -20 ° C to+50 ° C, and the storage temperature range is from -40 ° C to+70 ° C.
SMU channel parameters: 4 channels, voltage range -6V to 6V, current range -500mA to 500mA, current sensitivity 15pA.
Product Performance
High precision measurement: As a 4-channel source measurement unit (SMU), each channel integrates remote (4-wire) sensing function, which can achieve accurate measurement and ensure high-precision data acquisition.
High speed sampling and processing: With a high sampling rate, it helps to shorten measurement time, capture the transient characteristics of the device, and enable fast IV characteristic analysis of the device under test (DUT). The equipped processor and memory resources support efficient data processing and can meet the high real-time requirements of applications.
Rich interfaces: With a wide range of I/O and communication interfaces, including multiple digital input/output (DIO), analog input/output (AIO), serial communication interfaces (such as RS-232, RS-485, CAN, etc.), and Ethernet interfaces, it can easily connect various sensors, actuators, and other devices to achieve complex automation control and data acquisition tasks.
Flexible synchronization function: With the help of a high-speed sequence engine, synchronization between multiple SMUs or with other instruments such as switches or high-speed digital testing modules can be achieved. In addition, SourceAdapt technology can adjust the response of PXIE-4145 to any load to achieve optimal response, maximize stability, and reduce transient characteristics.
