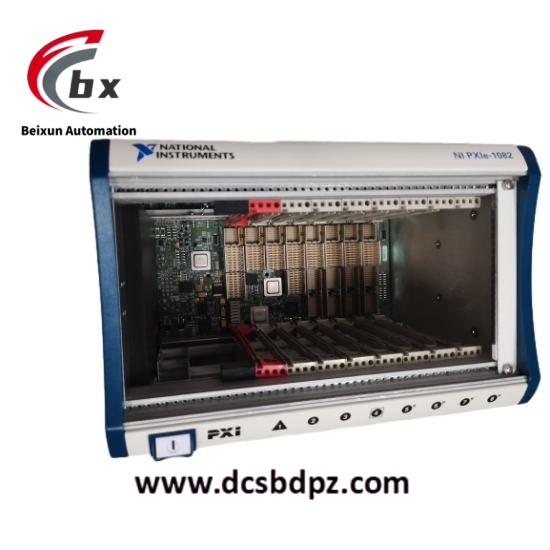

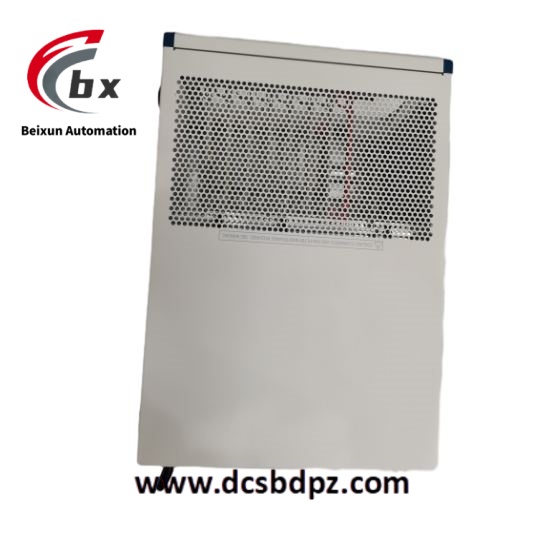

National Instruments PXIE-1082 High performance PXI Express chassis
Specific parameters
Physical specifications: The dimensions are 6.97 inches (height) x 10.69 inches (width) x 15.61 inches (depth), and the weight is 19.4 pounds.
Electrical specifications: The working voltage range is 90-264V AC.
Temperature range: The recommended working temperature range is 0-55 ° C, and the storage temperature range is -40-71 ° C.
Humidity range: The non condensing working humidity range is 10-90%, and the storage humidity range is 5-95%.
Vibration specifications: Within the frequency range of 5Hz-500Hz, the random vibration during operation is 0.3grms, and during non operation it is 2.4grms.
Number of slots: 8, including 1 PXI Express system slot and 7 peripheral slots (7 PXI Express compatible, 4 PXI compatible, and 1 PXI Express system timed compatible).
System bandwidth: The maximum system bandwidth is 8GB/s, and the slot bandwidth is 2GB/s.
Clock specifications: Provide a low jitter internal 10MHz reference clock for PXI slots, with a stability of 25ppm; Provide a low jitter internal 100MHz reference clock with a stability of 25ppm for PXI Express slots.
Product performance
High bandwidth: Supports PCI Express Gen 3, providing high data transmission speed and throughput to meet high bandwidth application requirements, such as high-speed measurement, data flow, and high channel density system solutions.
Module compatibility: It can accept 3U PXI, PXI Express, CompactPCI, and CompactPCI Express modules, and has four hybrid slots that are compatible with standard PXI and CompactPCI modules, with strong module compatibility and expandability.
Synchronization and Coordination: Equipped with a built-in high-speed clock and trigger bus, as well as timing and synchronization functions that comply with the latest PXI specifications, including built-in 10MHz and 100MHz reference clocks, PXI trigger bus, PXI star trigger, etc., to ensure precise synchronization and coordinated operation between multiple modules.
Heat dissipation and noise control: The variable speed fan controller can automatically adjust the fan speed according to the temperature, optimize the cooling effect, and control noise emissions. The noise is 43.6dBA at 0-30 ° C, achieving quiet operation.
Reliability: After rigorous testing, it has high reliability, and its power, temperature, and fan monitoring functions ensure stable system operation.
