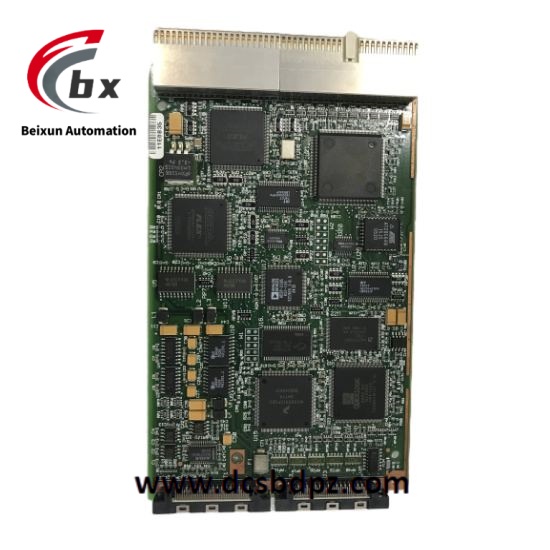

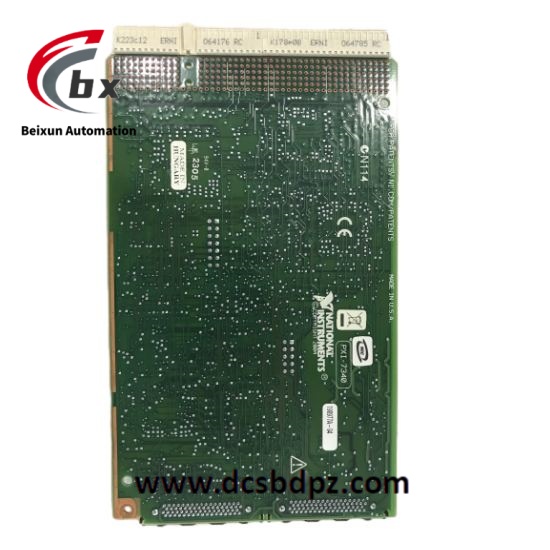

National Instruments PXI-7340 High performance motion controller
Specific parameters
Axis number: Supports 2-axis or 4-axis motion control.
Processor: Adopting a dual processor architecture combining 32-bit CPU and DSP, paired with customized FPGA.
Analog input/output: 8 analog inputs, 4 analog outputs.
Maximum update rate: 62.5 μ s/axis.
Digital I/O: 4 8-bit digital I/O ports.
Size: 6.3 x 3.9 inches.
Weight: 6 ounces.
Working voltage: The maximum working voltage of the channel to ground is 12V (category I), and the maximum working voltage of the channel to channel is 22V (category I).
Product Performance
Powerful control capability: Utilizing DSP for all closed-loop control, including position tracking, PID closed-loop control calculation, and motion trajectory generation, enabling high-precision motion control.
Excellent real-time performance: Customized FPGA performs hard real-time functions such as fast encoder interface, position capture and breakpoint function, motion I/O processing, and step pulse generation, ensuring the stability and accuracy of the system in real-time applications.
Multi tasking: Embedded CPUs run multitasking and a constant working framework, handling host communication, command processing, multi axis interpolation, error handling, general digital I/O, and integrated functions of the overall motion framework. They can simultaneously handle multiple tasks and improve system efficiency.
Fast communication: The FIFO bus interface and large capacity settings enable fast communication, reducing the complex motion processing burden on the host PC and optimizing system performance.
Good software compatibility: Using NI Motion driver software, it is compatible with various software packages and application development environments such as LabVIEW, LabWindows/CVI, Microsoft Visual C++, Microsoft Visual Basic, and AKD Workbench software, making it convenient for users to program and develop.
