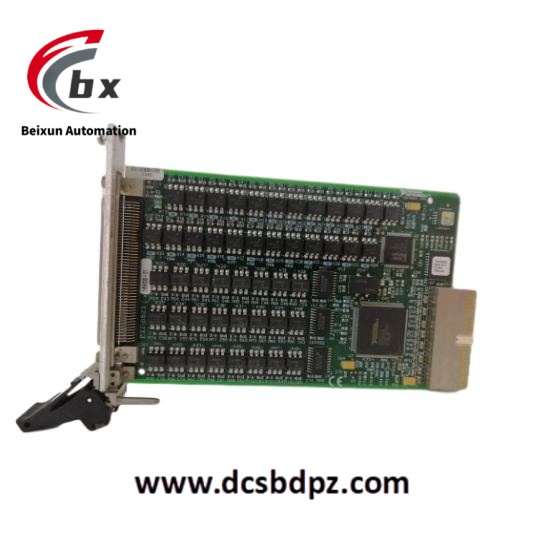

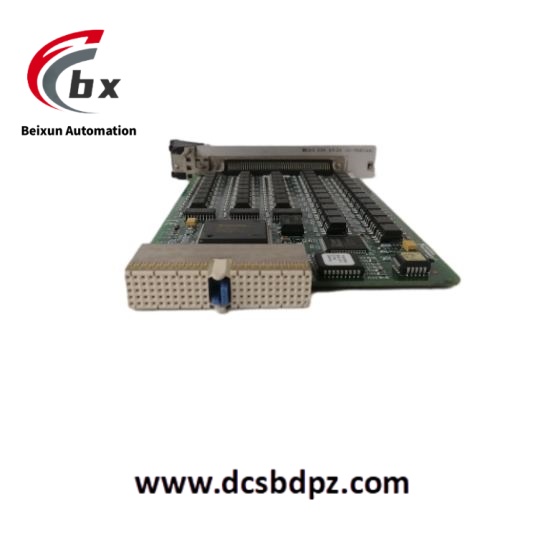

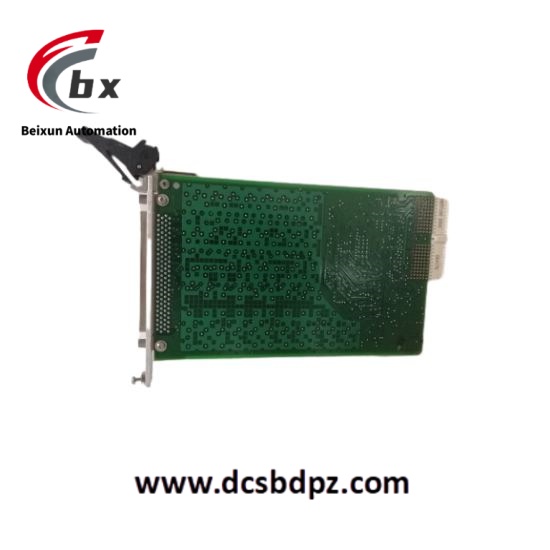

National Instruments PXI-6527 High performance digital I/O module
Digital I/O channels: 48 bits, including 24 input channels and 24 output channels.
Input range: 0 to 28 VDC.
Input current: maximum 1.5 mA per channel at 5 V, maximum 8 mA per channel at 24 V.
Logic level: 2 VDC to 28 VDC is logic high, 0 V to 1 V is logic low.
Channel isolation: The input provides 60 VDC isolation between the PC and the channel.
Output switch current: up to 120 mA.
Connector: 100 pin key controlled female cable connector.
Power requirement: Maximum power of 500 mA at+5 VDC.
Size: 6.3 x 3.9 inches.
Working temperature range: 0 to 50 ° C.
Storage temperature range: -20 to 70 ° C.
Product Performance
High speed signal processing: capable of processing high-speed digital signals, meeting the demand for fast signal response in industrial automation and testing systems.
High reliability: Designed with sturdy materials, it can withstand harsh industrial environments. The isolation design between channels can effectively reduce noise interference, protect the system from electrical shocks, and ensure long-term stable operation.
Strong compatibility: It can run on Windows 2000/NT/XP systems and is fully compatible with various software programs such as LabVIEW, Lab Windows/CVI, and Measurement Studio, making it convenient for users to program and integrate systems.
Flexible configuration: NI-DAQ can generate messages for one or more user selected input lines, and perform other programming operations or set outputs based on state changes to meet the needs of different application scenarios.
