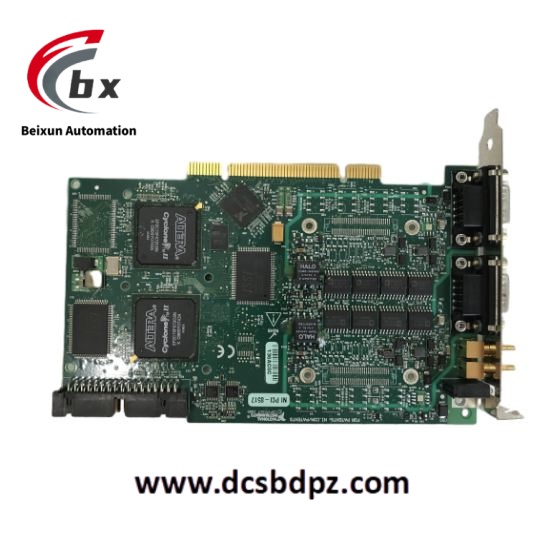

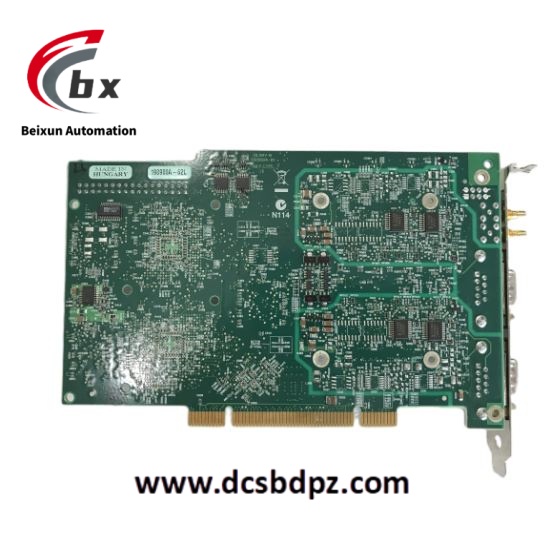

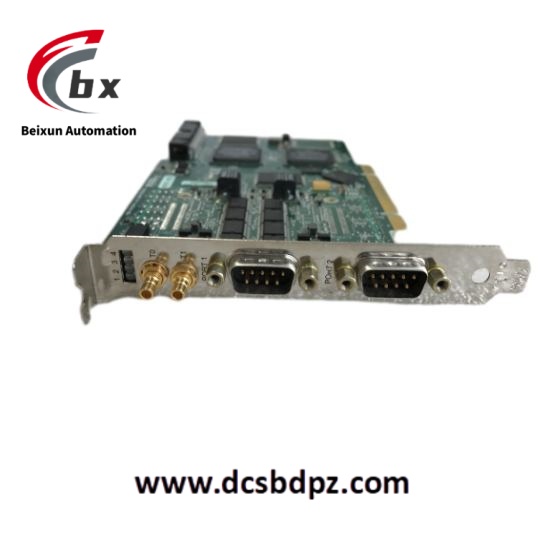

National Instruments PCI-8517 FlexRay interface device module
Specific parameters
Model: PCI-8517
Part number: 780685-02
Type: FlexRay interface device
Transceiver: NXP TJA1080
Minimum baud rate: 1Mbps
Maximum baud rate: 10Mbps
Trigger line: 7 inputs/outputs
Clock line: 1 input/output
Front panel synchronous connector: 2 inputs/outputs
Power requirements: 210mA at+5V DC (± 5%) and 940mA at+3.3V DC (± 5%)
Size: 4.2 inches x 6.6 inches
Weight: 0.22 pounds
Operating system compatibility: Windows XP 32-bit, Windows 7 32-bit, Windows 10 32-bit
Product Performance
High speed communication capability: Supports baud rates ranging from 1Mbps to 10Mbps, meeting the needs of high-speed data transmission. It can quickly process FlexRay signals and frames, making it suitable for scenarios with high real-time requirements.
Reliable interface design: Two FlexRay interfaces can work independently, connect different networks separately, and are supported by TJA1080 transceivers, ensuring communication stability and reliability in various application scenarios such as normal and cold start.
Flexible configuration options: The database can be edited and imported through software, making it convenient for users to configure according to different application needs. It also has power management functions such as sleep mode, which can optimize power consumption according to actual working conditions.
Powerful software support: compatible with multiple operating systems and development languages, combined with NI’s driver software and development tools, convenient for users to program and develop, and can efficiently implement various functions.
