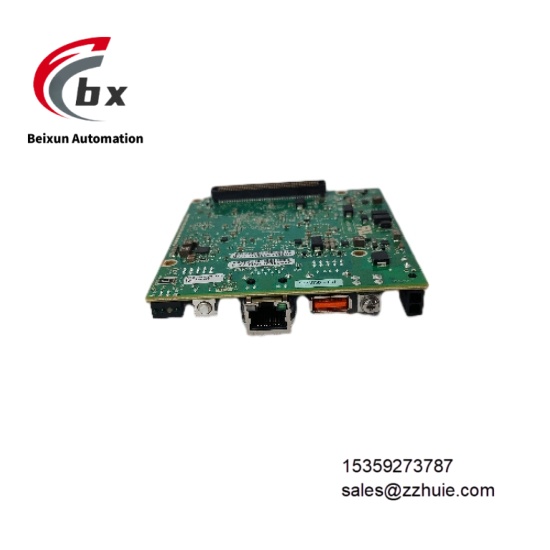

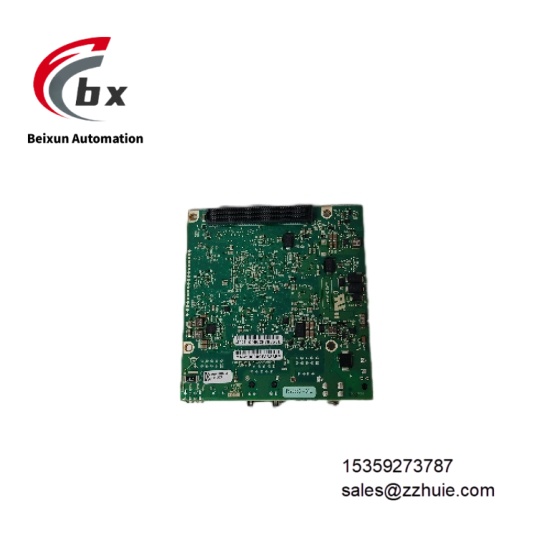

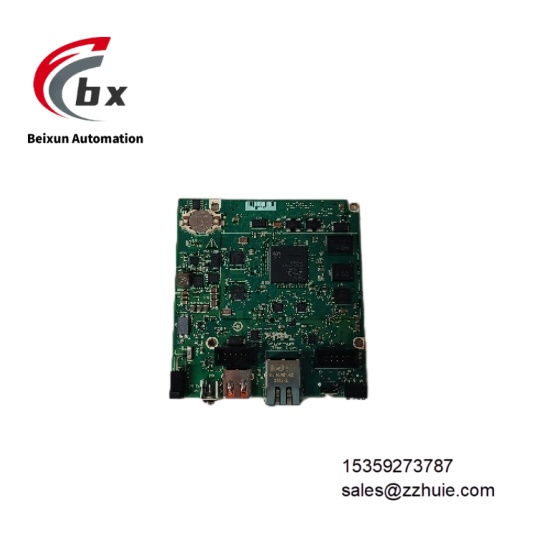

National Instrument SBRIO-9607 Embedded real-time controller

Specific Parameters

Brand National Instrument (NI)

Product Series Single-Board RIO Series Embedded Real-Time Controllers

Product Type Embedded Real-Time Controller (with integrated FPGA)

Model SBRIO-9607

Processor Freescale i.MX6 Quad, 4-core ARM Cortex-A9, 1GHz主频

FPGA Xilinx Zynq-7020, including Artix-7 FPGA (85K logic cells)

System Memory 1GB DDR3L SDRAM (for processor); 512MB DDR3L SDRAM (for FPGA)

Storage 4GB eMMC flash memory; supports Micro SDHC/XC expansion (up to 2TB)

Analog Input Channels 8 differential input channels, 16-bit resolution

Analog Input Range ±10V, ±5V, ±2V, ±1V, 0-10V (configurable)

Analog Output Channels 4 channels, 16-bit resolution, output range ±10V

Digital I/O Channels 40 configurable digital I/O channels (controlled by FPGA)

Communication Interfaces 2 Gigabit Ethernet ports (supports IEEE 802.3); 2 USB 2.0 host ports; 1 USB OTG port; 1 RS-232/485 serial port

Real-Time Operating System NI Linux Real-Time

Operating Voltage DC 9V – 30V

Operating Current Typical 600mA (12V input); Maximum 1.2A (12V input)

Operating Temperature Range -40℃ – 70℃

Storage Temperature Range -40℃ – 85℃

Relative Humidity 5% – 95% Non-condensing

Protection Level IP20 (board-level)

Vibration Rating 5g rms (5Hz – 500Hz)

Shock Rating 50g (11ms, half-sine wave)

Dimensions 146mm×102mm×25mm (L×W×H)

Weight Approximately 150g

Certification CE, UL, CSA, FCC Part 15 Class A, IEC 61010-1

Expansion Interfaces 2 NI RIO Mezzanine Card (RMC) interfaces

Product Performance

Integrates a 4-core ARM Cortex-A9 real-time processor and Artix-7 FPGA to realize collaborative work of real-time control and high-speed parallel signal processing, balancing control response speed and data processing capability

8 high-resolution analog input and 4 analog output channels, supporting multi-range voltage input configuration, can directly adapt to various industrial sensors and actuators with high integration

40 configurable digital I/O channels, realizing custom timing control through FPGA, supporting high-speed digital signal acquisition and output, adapting to complex industrial control logic requirements

Supports multiple communication interfaces such as Gigabit Ethernet, USB, RS-232/485, compatible with industrial protocols such as Modbus and TCP/IP, enabling seamless interconnection with upper computers, industrial networks and third-party equipment

Equipped with NI Linux Real-Time operating system, supporting LabVIEW, C/C++ programming and development, providing rich industrial control algorithm libraries and development tools, simplifying system development and debugging processes

Has a wide operating temperature range of -40℃ – 70℃, excellent vibration and shock resistance, can operate stably for a long time in harsh industrial sites with strong environmental adaptability

Integrates overvoltage protection, electrostatic protection and electromagnetic compatibility design, which can effectively resist electromagnetic interference and voltage fluctuations in industrial sites, ensuring reliable equipment operation

Provides 2 RMC expansion interfaces, supporting various function expansion modules, which can flexibly expand I/O interfaces and communication functions according to on-site needs, with strong expandability

High-reliability design, MTBF ≥500,000 hours, fully meeting the rigorous requirements of 24-hour uninterrupted operation in industrial sites
