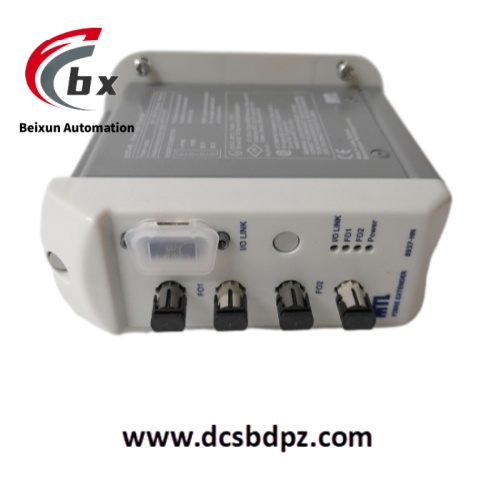

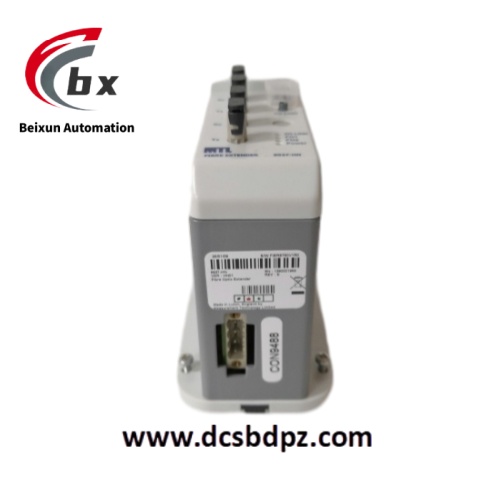

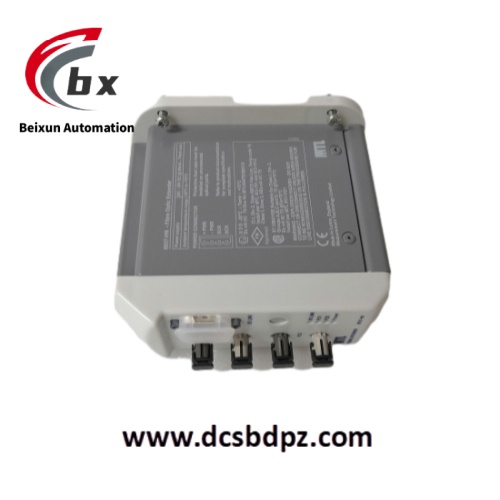

MTL 8937-HN Fiber optic expansion module

Specific Parameters

Electrical Parameters
Operating Voltage: 24V DC or 48V DC
Channel Configuration: 8 digital input channels
Signal Types: DC signals, AC signals
Fiber Type: Single-mode fiber
Isolation Level: 2.5kV AC between input and output (1 minute)
Communication Interfaces: Fiber optic communication, Ethernet compatible
Environmental Parameters
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +90°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Compliant with EN 61000-6-2 industrial environment standards
Mechanical Parameters
Mounting Method: 35mm standard DIN rail mounting (compliant with EN 60715)
Protection Class: IP20 (module itself)
Housing Material: Flame-retardant ABS plastic

Product Performance

8937-HN adopts high-precision signal conversion circuits, ensuring analog-to-digital and digital-to-analog conversion error ≤0.1%, meeting industrial-grade measurement accuracy requirements. The single-mode fiber transmission design supports up to 20km transmission without repeaters, with signal transmission delay ≤10ms, ensuring real-time performance of long-distance data transmission.

2.5kV AC electrical isolation between input and output channels effectively blocks electrical connections between hazardous and safe areas, suppresses ground loop interference, with common mode rejection ratio ≥90dB. The wide temperature design ensures stable operation in extreme temperature environments from -40°C to +85°C, with mean time between failures (MTBF) ≥100,000 hours.

The module is compatible with multiple industrial communication protocols, seamlessly interfacing with mainstream control systems, supporting hot-swap maintenance without affecting overall system operation during replacement. The housing uses flame-retardant material certified by UL 94 V-0, enhancing safety in industrial environments.
