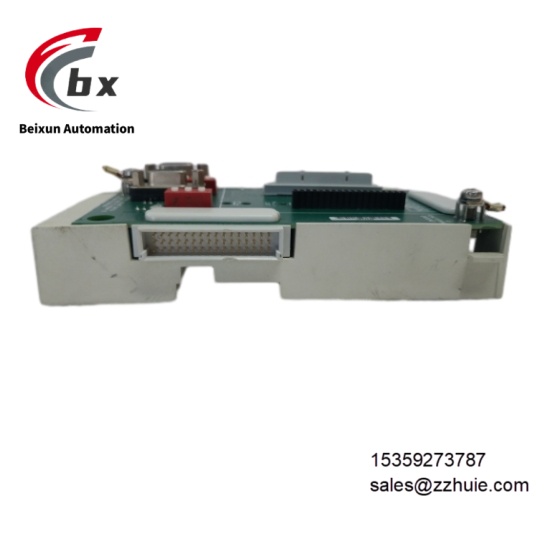

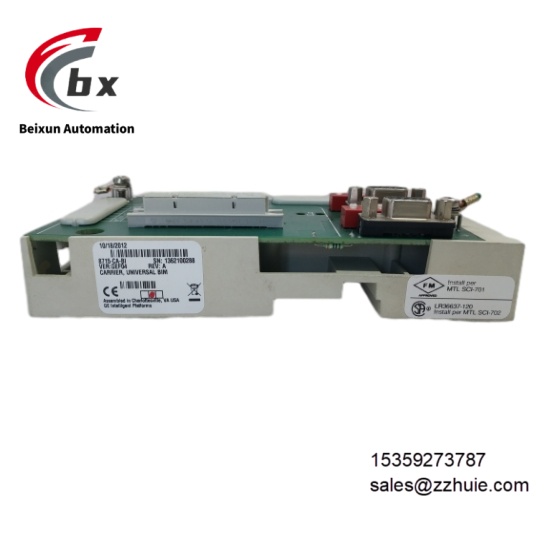

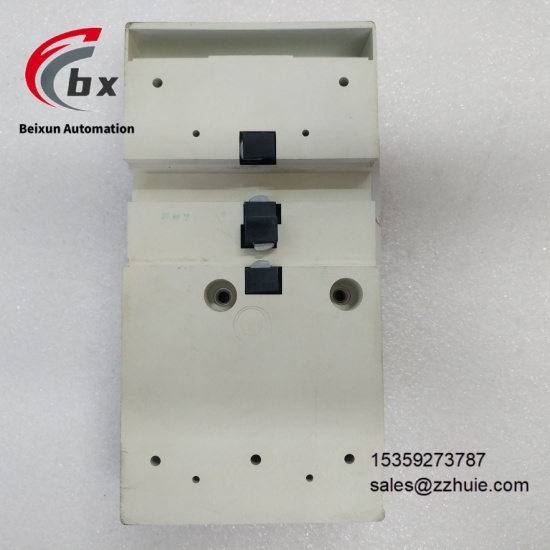

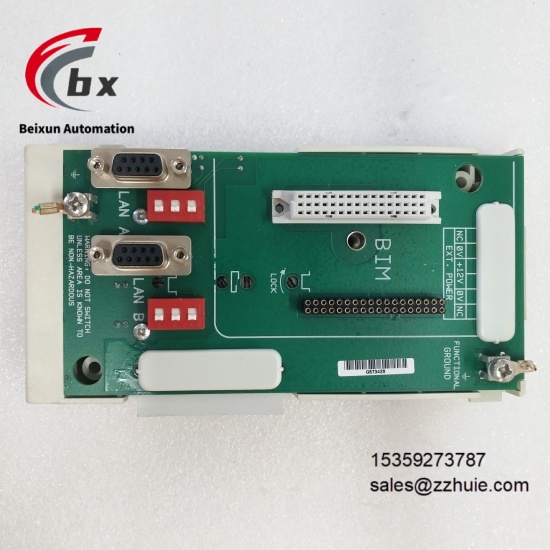

MTL 8715-CA-BI Bus Interface Module (BIM)

MTL 8715-CA-BI Bus Interface Module (BIM)

SPECIFIC PARAMETERS​

Brand MTL​

Product Series 8000 Series​

Product Type Bus Interface Module HART Transparent Isolator​

Working Voltage 24VDC 18-32VDC​

Working Current 100mA​

Working Temperature -20℃ to +60℃​

Storage Temperature -20℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing​

Insulation Voltage 1500VAC​

Frequency Response DC to 10kHz​

Linearity Error ±0.1%​

Input Signal 4-20mA DC 1-5V DC​

Output Signal 4-20mA DC 1-5V DC​

Communication Protocols Profibus-DP Modbus Ethernet HART​

LAN Communication Rate Up to 6Mbaud​

Profibus Rate 9.6kbaud to 12Mbaud​

I/O Expansion Capability Support 24 I/O Modules​

Size 22.5mm×99mm×114mm​

Weight 0.16kg 0.35kg​

Installation Method 35mm DIN Rail Mounting Panel Mounting​

Protection Level IP20​

Safety Certification Intrinsically Safe Explosion-proof Certification CE​

Configuration Storage Non-volatile Memory​

Diagnostic Function Extended Diagnosis of Module and Channel Status​

PRODUCT PERFORMANCE​

Has HART signal bidirectional transparent transmission capability, enabling remote configuration and diagnosis of HART instruments in hazardous areas​

Supports Profibus-DP bus protocol, which can synchronously transmit data of 24 I/O modules to the upper control system​

Built-in 1500VAC electrical isolation unit, which can effectively isolate the circuits on the safe side and the hazardous side to prevent fault crosstalk​

Adopt redundant design and self-diagnosis function, which can real-time feedback the operation status of modules and channels to ensure system stability​

Supports heat exchange and online replacement functions, which can complete module maintenance without interrupting system operation​

Has low linearity error, and the accuracy of ±0.1% can ensure the accuracy of analog signal transmission​

Adapt to multiple types of industrial field buses, and can be flexibly connected to automation control systems of different brands​

Adopt ultra-thin and compact design, support high-density installation, and save space in industrial field control cabinets​

Pass intrinsic safety explosion-proof certification, and can be directly applied to flammable and explosive hazardous industrial environments​

Built-in non-volatile memory, which can store module configuration parameters for a long time without loss of power​
