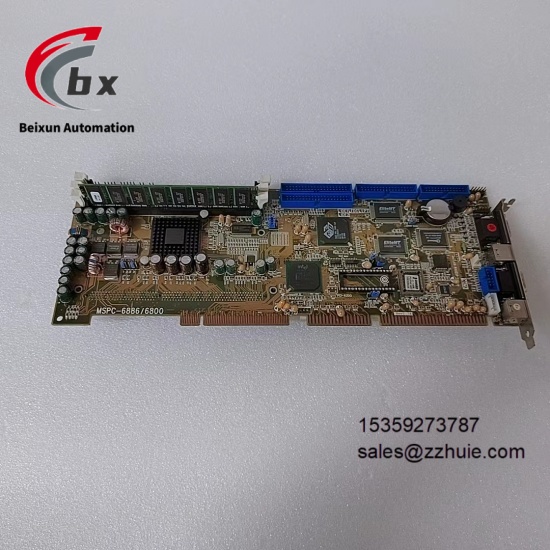

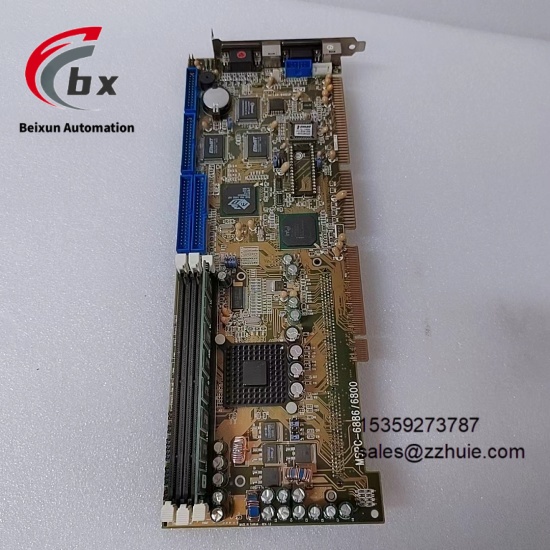

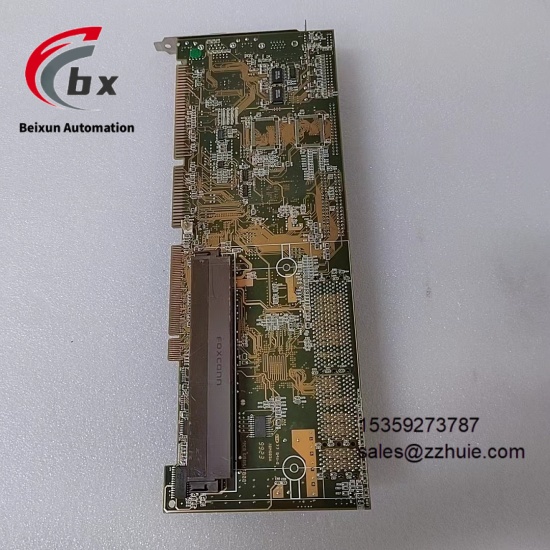

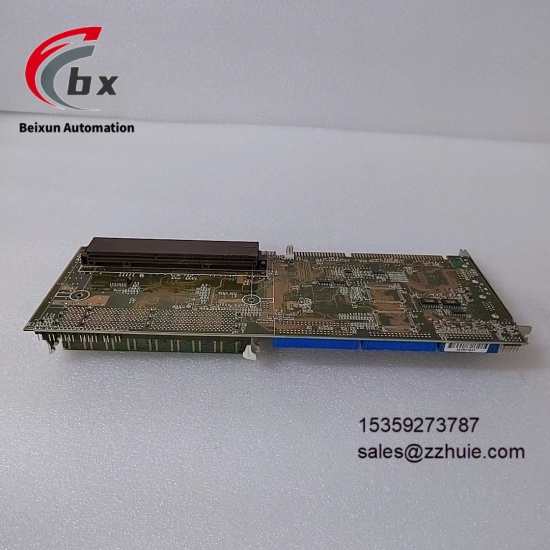

MSPC-6886 6800 Single board computer module

MSPC-6886 6800 Single board computer module

Specific Parameters

Brand Macrotek (American Brand)

Product Series MSPC Series PCI/ISA Single-Board Computer

Product Type Industrial-Grade PCI/ISA Single-Board Computer

Model MSPC-6886 6800

Chipset Intel 82371EB

Processor Supports Pentium II/III, Celeron processors on Socket 1

Memory Configuration 3×168-pin DIMM slots, supporting 8MB-256MB SDRAM/EDO memory modules

BIOS AWARD PCI BIOS with plug-and-play, green functions and power management

Interface Configuration VGA, USB, COM, Parallel Port, Infrared Port, supporting RS-232, Ethernet

Bus Type Compatible with PCI, ISA dual bus

Operating Voltage 220V AC

Firmware Version V2.0.0

Program Capacity 2048

Structural Feature Modular design, supporting hot-swapping

Physical Dimensions 340mm×122mm (Length×Width)

Installation Method Manual installation, compatible with standard industrial chassis

Compatible System Linux, VxWorks, Windows, RTOS Real-Time Operating System

Origin United States

Warranty Period One Year

Certification Compliant with industrial-grade reliability standards

Product Performance

Supports high-performance Pentium II/III processors and large-capacity memory expansion, with strong computing power, capable of efficiently processing complex industrial control logic and real-time data without lag or delay.

Integrates PCI and ISA dual-bus architecture, combined with rich interfaces and expansion slots, enabling flexible connection of various function cards, sensors and peripherals, adapting to function expansion needs of different scenarios.

Adopts industrial-grade components and modular design, supports hot-swapping function, facilitating maintenance and expansion. Modules can be replaced during equipment operation without affecting the overall system stability.

Compatible with multiple operating systems, selectable according to application scenarios. AWARD PCI BIOS has complete power management and plug-and-play functions, with outstanding adaptability and usability.

Has excellent anti-interference ability and environmental adaptability, can operate continuously for a long time under complex working conditions in industrial sites, providing stable and reliable computing support for automatic systems.

Integrates infrared port and multiple types of communication interfaces, enabling long-distance data transmission and multi-device linkage, meeting cross-device data interaction needs in industrial control.

Standard size design is compatible with mainstream industrial chassis, with strong installation compatibility, and can be quickly integrated into existing industrial control systems, shortening the project deployment cycle.
