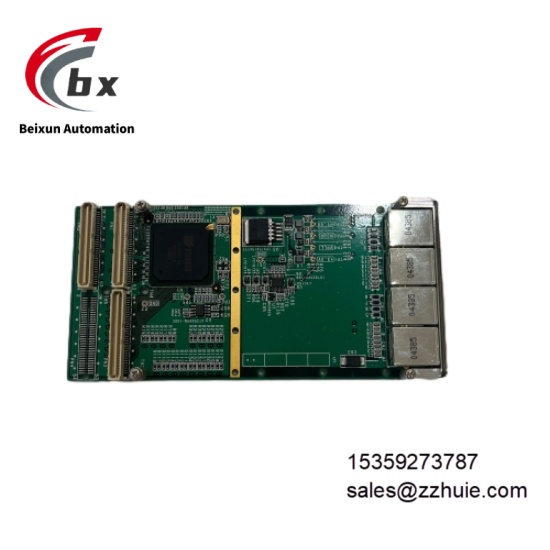

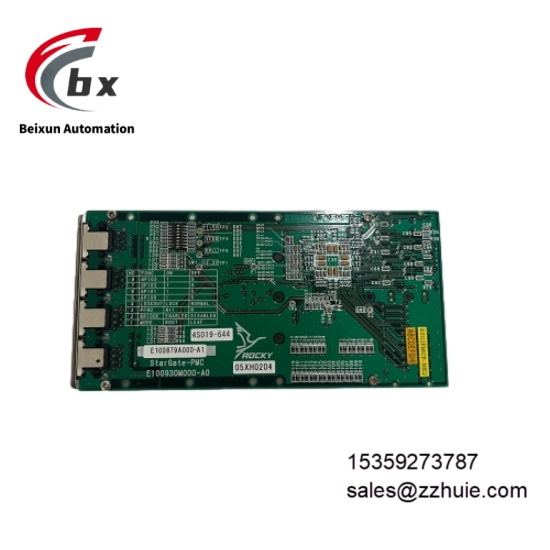

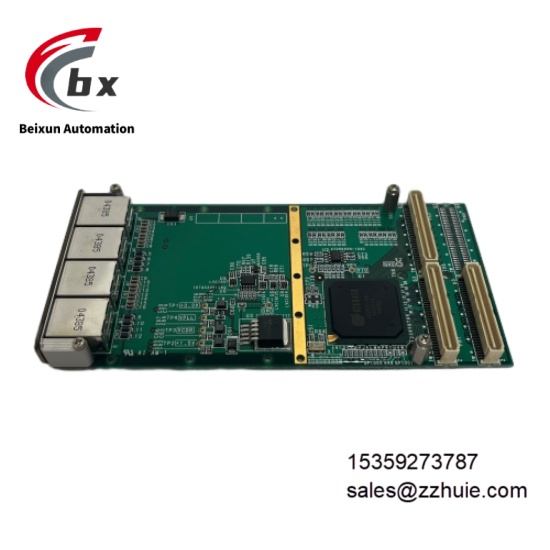

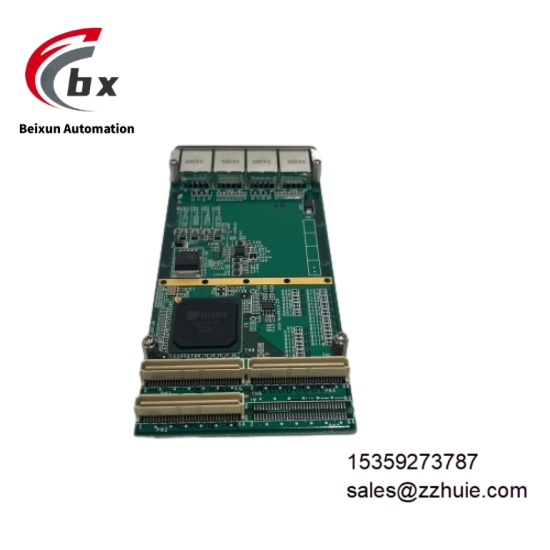

MOTOROLA RSG2PMC RSG2PMCF-NK2 Highly integrated power management unit
Specific Parameters
Electrical Parameters
Input Voltage: 8-36V DC wide-voltage adaptation, compatible with commonly used industrial power supply specificationsOutput Specification: Multiple configurations available; typical output combinations include 5V DC/3A, 12V DC/2A, 24V DC/1A, supporting customized outputConversion Efficiency: ≥92%, no obvious attenuation under full load, light load efficiency ≥85%Ripple and Noise: ≤50mVpp (at full load output), filter circuit suppresses voltage fluctuation interferenceProtection Functions: Integrated overcurrent protection (current limiting triggered when output current reaches 120% of rated value), overvoltage protection (output cut-off triggered when output voltage reaches 115% of rated value), short-circuit protection (instant output cut-off, automatic recovery after fault elimination), over-temperature protection (thermal shutdown triggered when internal temperature reaches 85℃)Monitoring Functions: Real-time collection of input voltage, output current and module temperature data, supporting fault information storage and uploadStandby Power Consumption: ≤1W (no-load state)
Mechanical Parameters
Overall Dimensions: 230mm (L) × 125mm (W) × 55mm (H)Housing Material: Die-cast aluminum alloy shell, anti-static coating on surface, with EMC shielding functionWeight: Approximately 1.8kgMounting Method: 35mm standard DIN rail mounting, supporting panel embedded fixingWiring Method: Plug-in spring terminal blocks, adapting to 1.5-4mm² single/multi-strand copper wires, terminals with anti-misplug latchesStatus Indication: 2 power status LEDs (green: normal output; red: fault alarm), 1 operation status LED (yellow: blinking indicates load operation)
Environmental Parameters
Operating Temperature: -20℃ to +70℃ (non-condensing environment)Storage Temperature: -40℃ to +85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP67, resistant to dust intrusion and short-term water immersion (1m water depth for 30 minutes)EMC Compliance: Complies with EN 55022 Class B (emission limits) and EN 55024 (immunity) standardsVibration Resistance: 10-500Hz frequency range, 0.5g acceleration (sine wave), 30 minutes of continuous testing per axis
Product Performance
Strong wide-voltage adaptability: 8-36V DC input range covers multiple power supply scenarios such as batteries and industrial power supplies, which can be directly connected to the system without additional voltage conversion modules.
Excellent conversion efficiency: ≥92% power conversion rate reduces energy consumption and heat dissipation requirements. The surface temperature of the module does not exceed 60℃ during full-load operation, without forced air cooling.
Comprehensive protection mechanism: Four-fold protection (overcurrent, overvoltage, short-circuit, over-temperature) and automatic restart function form closed-loop protection. The fault response time is ≤10ms, avoiding damage to the module and load equipment.
Accurate status monitoring: Real-time collection of voltage, current and temperature parameters. Fault information can be uploaded to the control system through internal interfaces, supporting preventive maintenance and rapid fault location.
High environmental tolerance: IP67 protection rating adapts to humid and dusty industrial sites; -20℃ to +70℃ operating temperature range covers extreme climate regions; anti-vibration design ensures structural stability during equipment transportation and operation.
