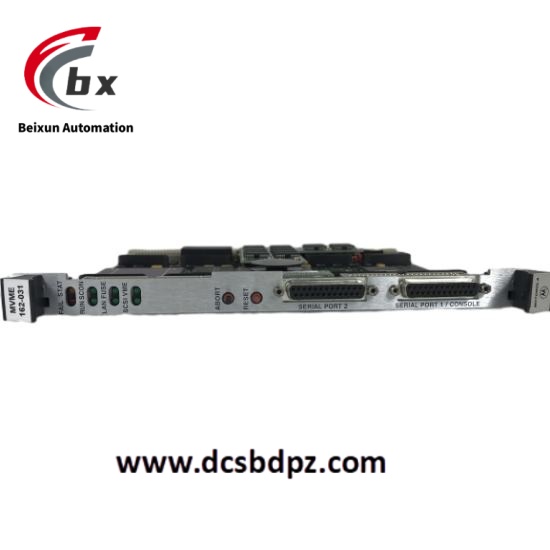

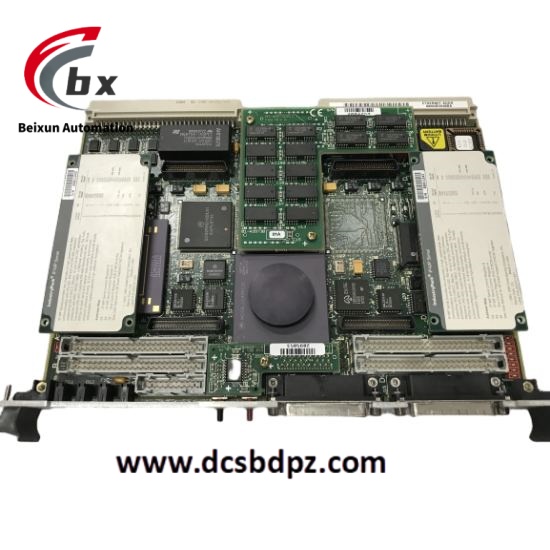

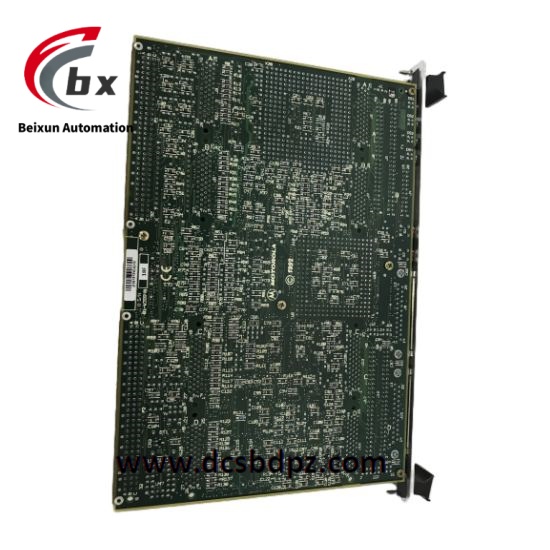

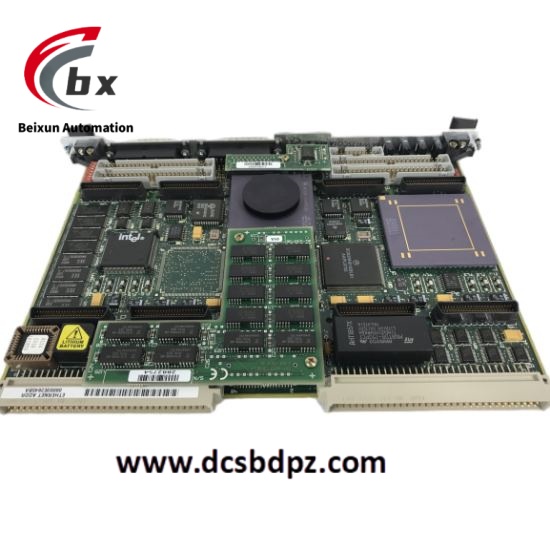

MOTOROLA MVME162-031 Single board computer module
Specific parameters
Processor: Optional 25MHz MC68LC040 enhanced 32-bit microprocessor with 8KB cache and MMU; Alternatively, a 25MHz MC68040 32-bit microprocessor with 8KB cache, MMU, and FPU is available.
Memory: Equipped with 1MB, 4MB, or 8MB shared dynamic random access memory (DRAM) with programmable parity check; There is also 512KB static random access memory (SRAM) with backup battery.
Storage: There is 1MB flash memory, the old motherboard uses one Intel 28F008SA, and the new motherboard uses four Intel 28F020s; At the same time, there is 8Kx8 non-volatile random access memory (NVRAM).
Timer: It has four 32-bit programmable timers and a programmable watchdog timer.
Interface: There are two serial ports (one EIA-232-D DCE, one EIA-232-D or EIA-530), optional SCSI bus interface, LAN Ethernet transceiver interface, with four MVIP IndustriePack interfaces, VMEbus interface using VMEchip2, supporting VMEbus system controller function, etc.
Product Performance
Strong environmental adaptability: The working temperature range is -40 ° C to+85 ° C, the relative humidity is 5% to 95% (no condensation), the seismic performance meets MIL-STD-810 standard, industrial grade components and three proof coating process are used, and the performance can still remain stable after continuous operation for 1000 hours in salt spray testing.
Good real-time performance: In the power monitoring system, a sampling accuracy of ± 1ms can be achieved, which can meet the requirements of strict real-time scenarios.
Good scalability: Supports up to 4 single width or 2 double width Industry Packs ® Modules, users can flexibly configure I/O, control, or interface functions according to their needs, and can also seamlessly integrate with other VMEbus compatible modules and systems.
