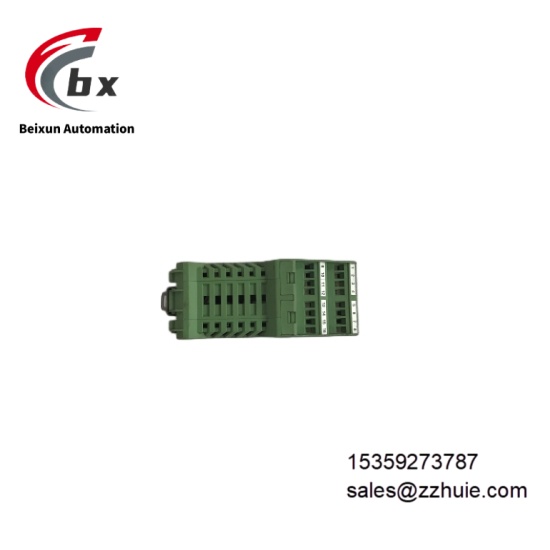

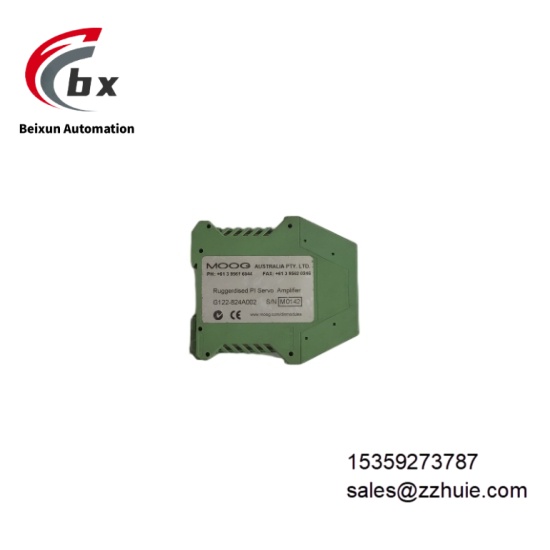

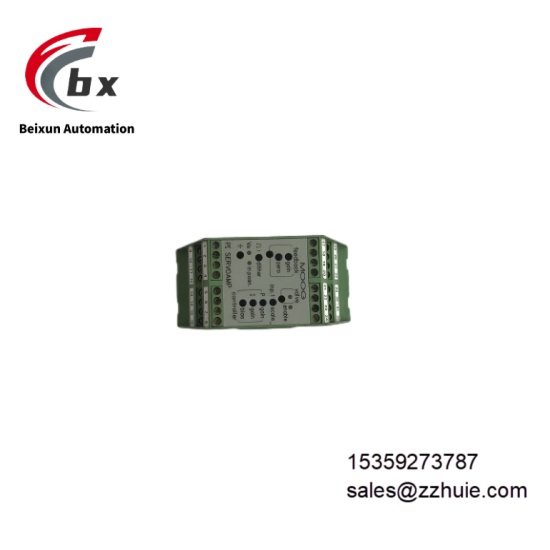

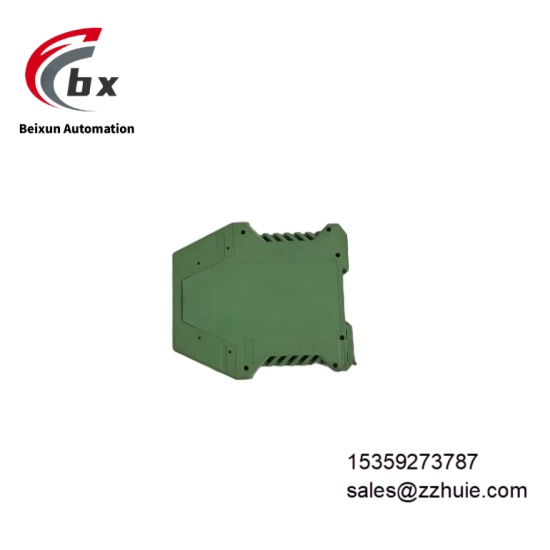

MOOG G122-824A002 servo amplifier
Specific Parameters
Electrical Parameters
Input Voltage Supports dual input voltage specifications, 12VDC~24VDC or 220VACOutput Voltage 0~10VDCOutput Frequency 50kHzResolution 16-bitControl Modes Supports proportional control, integral control and proportional-integral composite controlInput Signal Types Compatible with analog, digital and bus signalsRated Current 75mA@24V (no-load), 200mA@100mA (load)Communication Adaptation Supports multiple output protocols and sensor feedback excitationProtection Features Overvoltage protection, overcurrent protection, overtemperature protection, short circuit protectionCertification Standards Compliant with relevant CE certification standards
Mechanical Parameters
Overall Dimensions 100mm×80mm×20mm, compact structureWeight Approximately 200gMounting Method DIN rail mounting, compatible with standard industrial racksHousing Material High-strength aluminum alloy, resistant to electromagnetic interferenceConnection Method M12 connector, plug-in terminal blocksProtection Rating IP65, dustproof and waterproofStatus Indication Power (green), operation (yellow), communication (blue), fault (red) LED indicatorsHeat Dissipation Design Optimized heat dissipation structure, ensuring thermal stability under high load
Environmental Parameters
Operating Temperature -10℃~50℃, operation without derating over the entire temperature rangeStorage Temperature -40℃~85℃, meeting extreme storage and transportation requirementsRelative Humidity 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance Meets industrial EMC standards, external interference can be reduced by using shielded cables
Product Performance
Excellent control precision: 16-bit resolution combined with P-I control algorithm, realizing micron-level position and speed controlFast response speed: 50kHz output frequency ensures real-time command processing, improving system dynamic response performanceFlexible configuration: Supports multiple input signals and motor type adaptations, meeting customized control needsStable and reliable operation: High-quality materials and strict quality testing ensure long-term continuous operation without faultsConvenient operation and maintenance: Front panel integrates LED indicators and test points, simplifying parameter setting and fault diagnosisStrong environmental adaptability: IP65 protection rating and optimized heat dissipation design, adapting to complex industrial working conditionsExcellent compatibility: Can be seamlessly integrated into various control systems such as robots, machine tools and automated production lines
