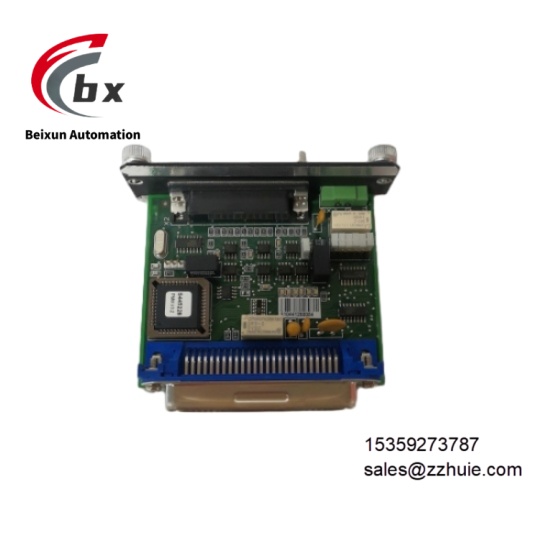

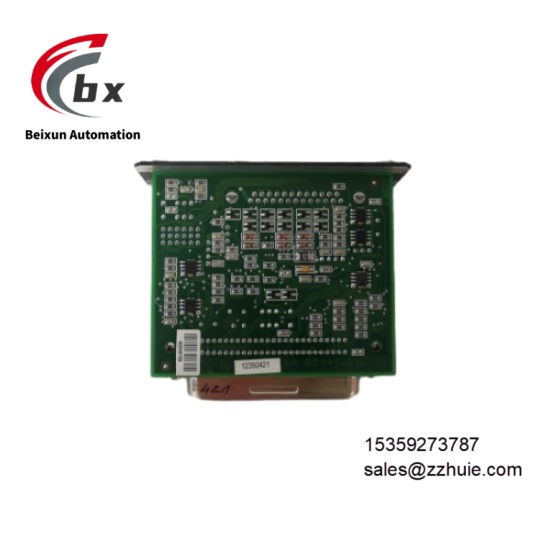

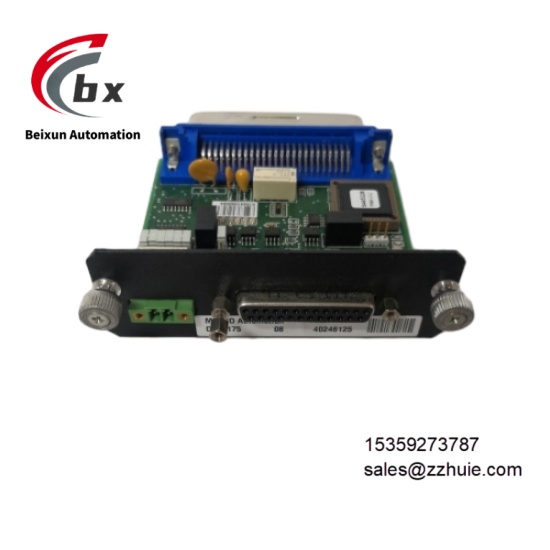

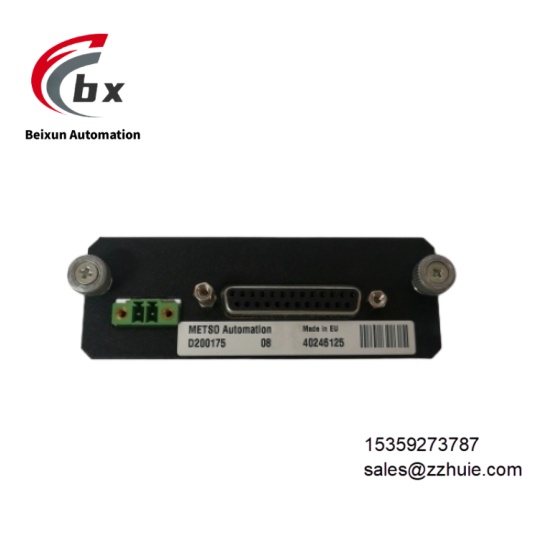

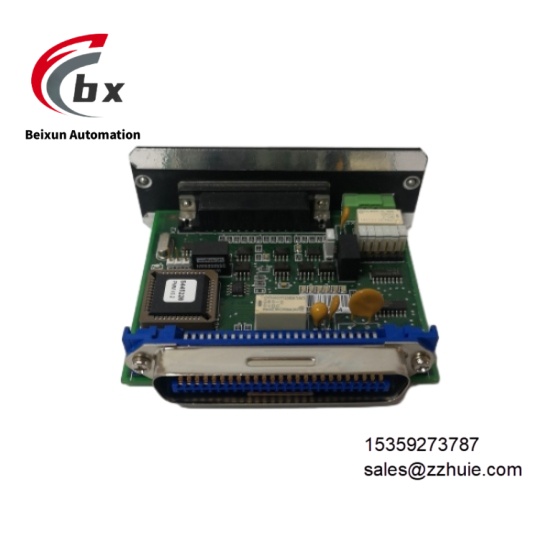

Metso D200175 Integrated module of servo control and network communication

Metso D200175 Integrated module of servo control and network communication

Specific Parameters​

Electrical Parameters​

Input Voltage 24V DC (±10% fluctuation tolerance), supports 110-220VAC to 24VDC external power adapter​

Output Current Continuous output current 12A, peak output current 36A (duration ≤3 seconds)​

Control Precision Position control precision ±0.01mm, speed control precision ±0.1% rated speed​

Bus Speed 133MHz, high-speed data processing and command transmission based on dedicated ASIC chip​

Communication Rate RS-232/422/485 interface up to 1.152Mbps, Ethernet interface up to 100Mbps​

Memory Configuration On-board 256MB DDR memory, 512MB E-disk storage, supports maximum 1TB external hard disk expansion​

Interface Quantity 4 serial ports (RS-232/422/485 software switchable), 2 Gigabit Ethernet ports, 2 USB 2.0 ports​

Communication Protocols Compatible with Modbus RTU, Profinet, EtherNet/IP, TCP/IP protocols, supports custom industrial protocols​

Operating Systems Adapts to Windows XP/7/10, Linux (Ubuntu 18.04 and above), WinCE 7.0 systems​

Mechanical Parameters​

Overall Dimensions 120mm×80mm×50mm (W×H×D), compact design compatible with standard industrial control cabinets​

Weight Approximately 0.6kg, lightweight modular structure facilitating installation and maintenance​

Mounting Method Supports 32/64-bit PCI slot installation, PCI-X expansion slot installation, compatible with 2U rack-mounted server layout​

Housing Material Industrial-grade 6061 aluminum alloy housing with anodized surface treatment, featuring electromagnetic shielding and high heat dissipation performance​

Connection Method Back plug-in terminal blocks (power terminals M4 screws, signal terminals M3 screws); front RJ45 Ethernet interfaces, USB interfaces​

Status Indication 7-segment LED nixie tube (displays current/speed/fault code); Power (green), Run (yellow), Fault (red), Communication (blue) LED indicators​

Protection Rating IP40, dust-proof design suitable for industrial workshop environments​

Environmental Parameters​

Operating Temperature -25℃ to 65℃, no performance derating over the entire temperature range​

Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity and high-altitude (≤3000m) industrial scenarios​

Vibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration in 10Hz-500Hz frequency range (duration 1 hour)​

Shock Resistance Complies with IEC 60068-2-27 standard, 15g acceleration (duration 11ms, 3 times each in X/Y/Z directions)​

EMC Compliance Radiation disturbance complies with EN 55011 Class A, immunity complies with EN 61000-4-2 (±8kV contact discharge), EN 61000-4-3 (±10kV radiated immunity)​

Product Performance​

Excellent control precision, position control ±0.01mm and speed control ±0.1% error, meeting the motion needs of precision equipment​

Strong driving capability, 12A continuous current and 36A peak current output, adapting to medium and high-power servo motors​

High communication efficiency, 133MHz bus + Gigabit Ethernet, realizing no delay in control commands and data transmission​

Good expansion compatibility, multi-interface and multi-protocol support, adapting to different brands of industrial equipment and control systems​

Strong environmental adaptability, -25℃ to 65℃ wide temperature operation + IP40 protection, tolerating complex working conditions such as dust and temperature fluctuations​

Comprehensive diagnostic functions, real-time monitoring of current, temperature, and communication status, intuitive display of fault codes, shortening troubleshooting time​

High programming flexibility, supporting C/C++ and ladder diagram programming, customizable control logic and communication processes​

High operational stability, industrial-grade components and redundant design, Mean Time Between Failures (MTBF) ≥1,800,000 hours​
