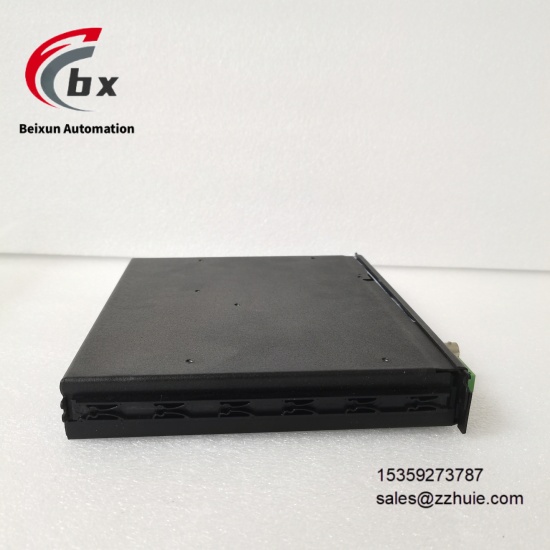

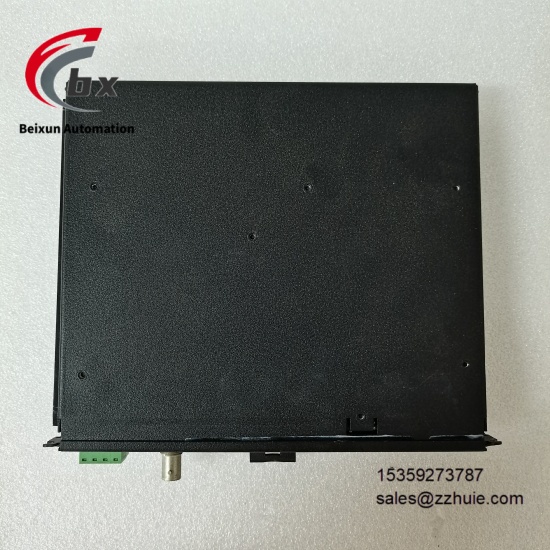

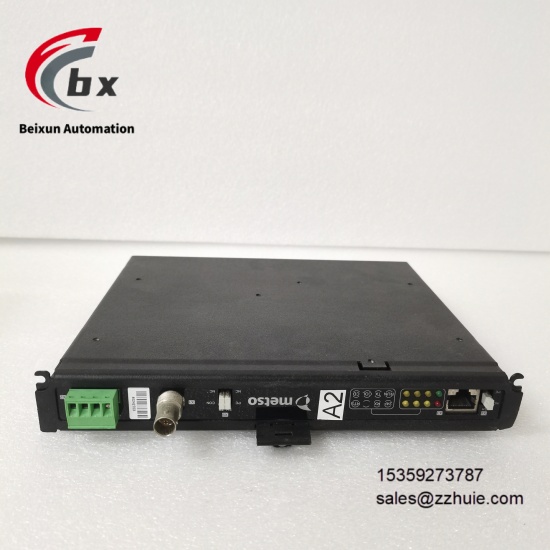

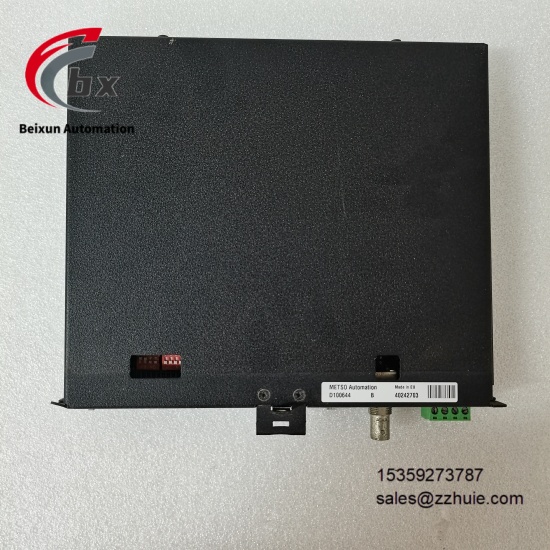

Metso D100644 Fieldbus signal converter
Specific Parameters
Brand Metso
Product Series Control System Series
Product Type Bus Signal Converter, Ethernet Coax Fieldbus Signal Converter
Model D100644
Country of Origin Finland
Physical Weight 1.010kg
Rated Power Supply 24VDC, 30V/1A
Operating Temperature Range -20℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions 400mm×300mm×200mm
Digital Inputs Up to 64 Channels
Digital Outputs Up to 64 Channels
Analog Inputs 16 Channels
Analog Outputs 8 Channels
Communication Ports Ethernet Port, Serial Port
Supported Protocols CAN, LIN, MOST S, Ethernet, Modbus, Profibus, Hart
EFC Number 05 EFC
Material Number 26112292
Core Functions Bidirectional Conversion of Ethernet and Coaxial Fieldbus Signals, Multi-Protocol Adaptation, Data Transmission
Mounting Method Industrial Standard Mounting
Certification Standards Compliant with Current Industrial Communication Standards
Warranty Period 12 Months
Product Performance
Manufactured with advanced circuit design and high-quality components, it ensures the accuracy and reliability of signal conversion, realizes error-free bidirectional conversion between Ethernet signals and coaxial fieldbus signals, and guarantees the stability and real-time performance of data transmission.
Supports multiple mainstream industrial bus protocols and signal formats, including CAN, LIN, MOST S, Ethernet, Modbus, Profibus, Hart, etc., which can flexibly adapt to automation equipment and control systems from different manufacturers with extremely strong versatility.
It is compatible with two rated power supply specifications: 24VDC and 30V/1A, which can be seamlessly integrated into the power supply architecture of most industrial automation systems without additional modification of power supply modules, and is easy to install.
The operating temperature range covers -20℃ to +70℃, and the storage temperature range reaches -40℃ to +85℃. It can operate stably in harsh industrial environments such as high and low temperatures and humidity without performance degradation, and has extremely strong environmental adaptability.
It has excellent anti-electromagnetic interference performance, can resist complex electromagnetic interference in industrial fields, avoid data loss or errors during signal conversion, and ensure normal communication between control systems and on-site equipment.
It has a compact structure and light weight (only 1.010kg), adopts an industrial standard mounting method, is easy to integrate into existing industrial control systems, and can greatly reduce the complexity and cost of system upgrades.
It has good scalability, can adapt to various industrial control systems from small to large, and can flexibly expand configurations according to on-site operation needs to meet the use needs of different scale industrial scenarios.
Equipped with complete diagnostic and monitoring functions, it can real-time monitor the signal conversion status and equipment operation status, facilitating staff to timely detect and handle potential faults and reduce system downtime.
Compliant with current industrial communication standards and strong compatibility, it can realize seamless integration of Ethernet-based systems with legacy coaxial fieldbus networks, breaking the communication barrier between different bus systems.
It operates stably with a long service life, adopts strict manufacturing process control, can operate continuously for a long time without faults, reduces equipment maintenance costs, and improves the overall operation efficiency of industrial control systems.
