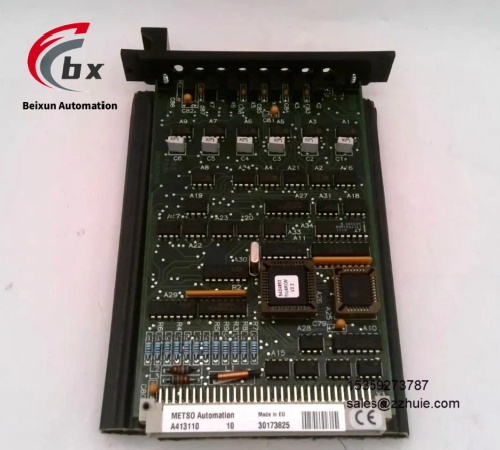

METSO A413110 Analog input module
Specific Parameters
Brand METSO (Metso, now part of Valmet Automation, Finnish original factory), Product Series Metso A4131 Series
Product Type Industrial-Grade 8-Channel Universal Analog Input Module, Industrial Automation Signal Acquisition Component, Process Control I/O Module, Original Authentic Spare Part
Model METSO A413110 (Variant Models A413110-01, A413110-IP65, Part Number A413110)
Country of Origin Finland (Produced by Metso original factory, now part of Valmet Automation system)
Compatible Devices Metso Damatic XD Control System, Valmet DNA Distributed Control System, Industrial Controllers, PLC Systems, Automated Production Line Equipment, Process Monitoring Equipment
Core Functions Multi-Type Analog Signal Acquisition, Analog Signal to Digital Signal Conversion, Cold Junction Compensation, Linearization Processing, Channel Isolation Protection, Open Circuit Detection, Comprehensive Self-Diagnosis, Stable Signal Transmission
Module Type 8-Channel Universal Analog Input Module, Differential or Single-Ended Input Optional via Software
Supported Signal Types Current: 0-20mA, 4-20mA (Input Impedance 50Ω); Voltage: 0-5V, 0-10V, ±5V, ±10V (Input Impedance >1MΩ); RTD: PT100, PT500, PT1000, Ni100 (2/3/4-wire); Thermocouple: J, K, T, E, N, R, S, B types (Internal/External CJC Cold Junction Compensation)
Resolution 16-bit (Δ∑ADC)
Measurement Accuracy ±0.1% of Full Scale (Typical) at 25℃, ±0.3% Over Full Temperature Range
Sampling Rate 10Hz/50Hz/100Hz per Channel (Optional via Software)
Isolation Level 1500V AC (1 Minute) Channel to Backplane, 500V DC Channel to Channel
Common Mode Rejection Ratio (CMRR) >120dB at 50/60Hz
Power Supply Voltage 24VDC±20% (External or Backplane Powered), Maximum 200mA
Operating Temperature Range -20℃ to +60℃ (Standard Type), -30℃ to +70℃ (IP65 Variant)
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing (Complies with IEC 60068-2-30 Standard)
Protection Class IP20 (Rack Module), IP65 (Field Mount Variant with M12 Connector)
Vibration and Shock Complies with IEC 60068-2-6 (10-500Hz, 5g)/IEC 60068-2-27 (30g, 11ms) Standards
Physical Dimensions Rack Version: Width 100mm × Height 60mm × Depth 30mm; IP65 Version: Width 150mm × Height 120mm × Depth 50mm
Physical Weight Approximately 0.4kg (Rack Version), 0.9kg (IP65 Version)
Mounting Method 35mm DIN Rail Mounting (Complies with EN 60715 Standard), IP65 Version Supports Panel Mounting
Connector Type Rack Version: Removable Screw Terminal Blocks (0.2-2.5mm²); IP65 Version: M12 Circular Connector
Diagnostic Function Each Channel Has Open Circuit Detection (4-20mA Loop), Over-Range/Under-Range Detection; Module-Level Power, Run, Fault Indicators, Continuous Self-Monitoring and Feedback of Health Status to Host System
Product Material Industrial-Grade High-Strength Enclosure, Conformal Coated PCB (Complies with IPC-CC-830B Standard), High-Temperature Resistant Insulation Material, Built-in Anti-Corrosion and Anti-Electromagnetic Interference Protection Components
Special Functions Each Channel Can Be Independently Configured for Signal Type Without External Signal Conditioner; Rack Version Supports Hot-Swapping, Module Can Be Replaced While Backplane Is Powered; Electromagnetic Interference Resistance Complies with IEC 61000-6-2 Standard, Adapts to Harsh Industrial Environments
Product Performance
METSO A413110 is an original Metso device with extremely strong adaptability, which can be perfectly matched with Metso Damatic XD and Valmet DNA automation platforms, compatible with various industrial controllers and PLC systems, seamlessly integrated into various scenarios such as process control and automated monitoring, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has extremely high acquisition precision, equipped with a 16-bit Δ∑ADC converter, the measurement accuracy reaches ±0.1% of full scale, supports the acquisition of various signal types, can meet the monitoring needs of different industrial scenarios, and the cold junction compensation and linearization processing functions ensure the accuracy and reliability of temperature measurement data. The product has outstanding reliability, adopts conformal coated PCB and industrial-grade high-quality components, has excellent anti-electromagnetic interference and anti-vibration impact capabilities, IP20/IP65 protection level can effectively resist dust and water vapor intrusion, can operate continuously and stably in a wide temperature environment of -20℃ to +60℃ and harsh working conditions such as dust and temperature-humidity fluctuations, and the mean time between failures (at 40℃) exceeds 1,000,000 hours. Built-in complete self-diagnosis and open circuit detection mechanisms, can real-time feedback operation abnormalities, avoid equipment damage and extend service life, hot-swapping function and convenient installation design facilitate maintenance and system expansion, can be put into use without complex commissioning, greatly improving operation and maintenance efficiency, and providing stable, efficient and precise signal acquisition support for industrial automation, process control and other scenarios.
