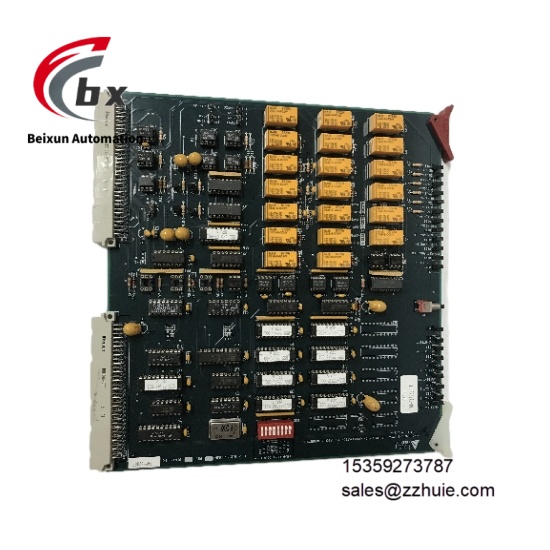

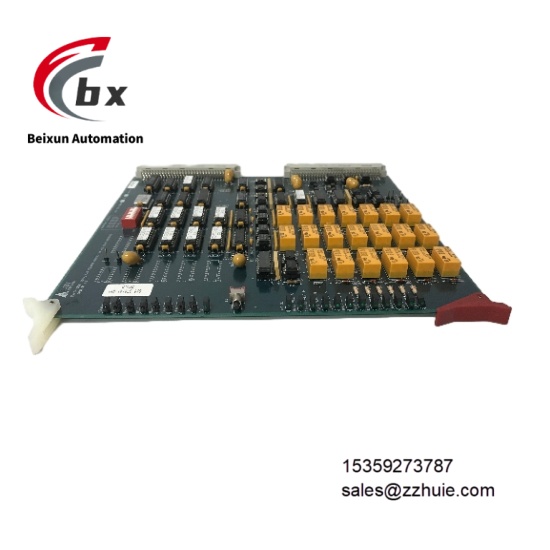

LAM 810-370141-001 Programmable control module

LAM 810-370141-001 Programmable control module

Specific Parameters​

Electrical Parameters​

Input Voltage Dual specifications of 5V DC and 120VAC, compatible with industrial standard power supply systems​

Output Voltage Dual output of 3.3V DC and 0-10VDC, meeting power supply needs of different loads​

Control Range 0-100% full range adjustment, supporting continuous precision control​

Power Consumption Adopting low-power design, power consumption ≤5W under rated load​

Communication Interfaces Standard SPI, RS-232 interfaces, supporting Ethernet, wireless and cellular communication expansion​

Communication Protocols Compatible with Modbus, Profibus and other fieldbus protocols as well as TCP/IP protocol​

Programming Support Equipped with dedicated programming tools, supporting logic control and process parameter customization programming​

Protection Functions Integrating overvoltage and overcurrent protection, with automatic power-off mechanism for load short circuit​

Mechanical Parameters​

Packaging Form Surface Mount Technology (SMD) packaging, adapting to high-density integration needs​

Mounting Method Supporting DIN rail mounting, compatible with standard industrial control cabinet layouts​

Interface Type On-board pin connector, supporting quick connection of SPI, RS-232 and power supply​

Housing Material Ceramic-based composite housing, with dual characteristics of insulation and heat dissipation​

Status Indication Equipped with Power (green), Run (yellow), Fault (red) LED indicators​

Dimension Specifications Compact design, length×width×height ≤50mm×30mm×10mm, adapting to narrow installation spaces​

Environmental Parameters​

Operating Temperature -40℃ to 85℃, no performance derating over the entire temperature range​

Storage Temperature -55℃ to 125℃, meeting extreme storage and transportation environment requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios​

EMC Compliance Complying with industrial EMI/EMC specifications, radiation disturbance ≤30dBμV/m​

Vibration Resistance Complying with IEC 60068-2-6 standard, 1g acceleration in 10-500Hz frequency range​

Product Performance​

High control precision, output voltage error ≤±0.1%, control range adjustment step ≤0.1%​

Strong integration capability, combining control module and etching component functions to achieve process-control integration​

Good communication expandability, multi-interface and multi-protocol support, meeting single-machine control and system networking needs​

Excellent adaptability, fully compatible with LAM series equipment, enabling direct integration without adapters​

Strong environmental tolerance, operating in -40℃ to 85℃ wide temperature range, withstanding extreme industrial temperature environments​

High operational stability, industrial-grade components and multiple protection designs, Mean Time Between Failures ≥1,000,000 hours​

High installation flexibility, adapting to both SMD packaging and rail mounting for different integration scenarios​

Good maintenance convenience, modular structure supporting quick replacement, LED status indicators simplifying fault location​
