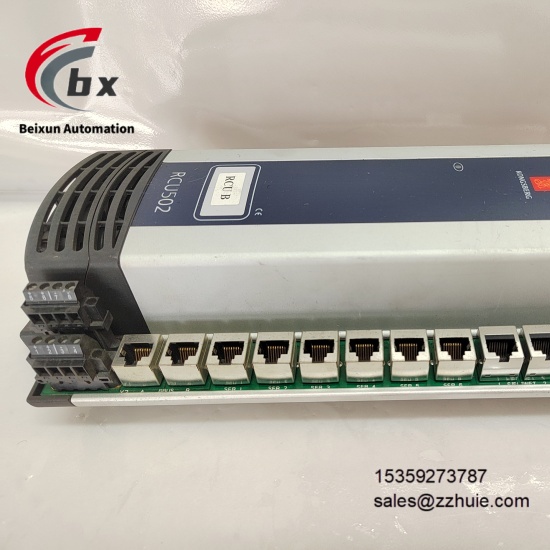

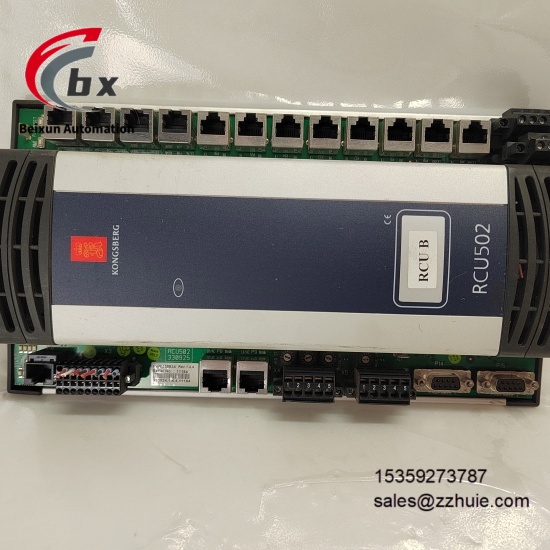

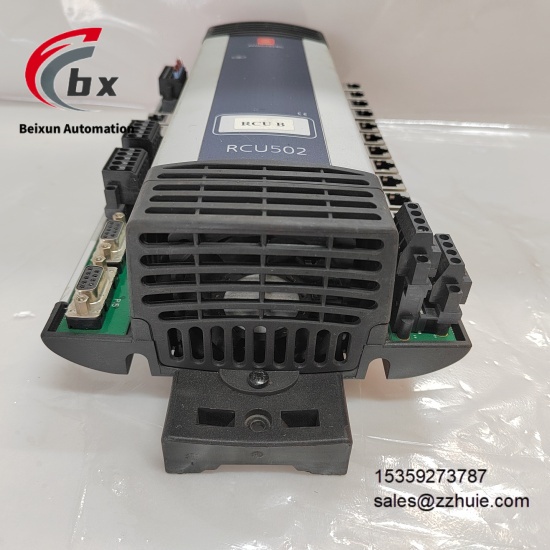

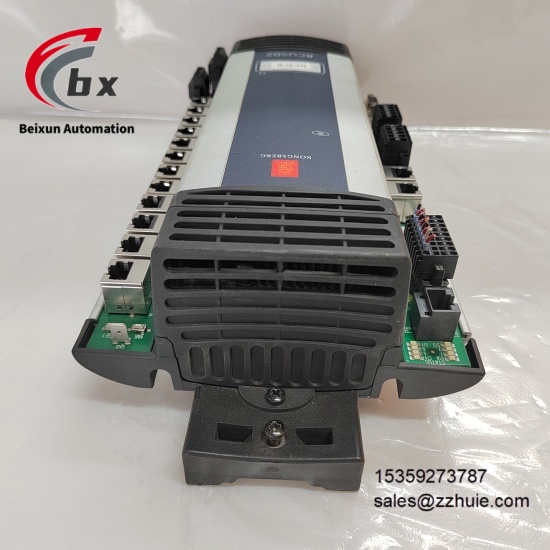

KONGSBERG RCU502 Remote control unit

KONGSBERG RCU502 Remote control unit

SPECIFIC PARAMETERS​

Brand KONGSBERG​

Product Series RCU Remote Control Unit Series​

Product Type Marine-grade Distributed Remote Control Unit​

Working Voltage 24VDC 110VDC​

Working Temperature -25℃ to 65℃​

Storage Temperature -40℃ to 85℃​

Number of Digital Input Channels 16​

Number of Digital Output Channels 8​

Number of Analog Input Channels 4​

Number of Analog Output Channels 2​

Communication Interface Ethernet 10/100BaseTX CANopen RS-485​

Protection Level IP67 Enclosure IP20 Module​

Classification Society Certification DNV GL ABS LR BV​

Safety Level SIL 2​

Processor Core 32-bit Marine-grade Industrial Processor​

Supported Protocols Modbus TCP/IP CANopen KONGSBERG Dedicated Maritime Communication Protocol​

Power Consumption 15W​

Size 180mm×120mm×80mm​

Weight 1.0kg​

MTBF 900000 hours​

Response Time Input ≤2ms Output ≤3ms​

Installation Method DIN Rail Mounting Wall-mounted Mounting​

Compatible System KONGSBERG K-Chief 700 KONGSBERG K-Sim​

PRODUCT PERFORMANCE​

Adopt marine-grade wide-temperature anti-corrosion components, which can operate stably in maritime environments with high salt spray, strong vibration and high-low temperature​

Integrate multiple types of I/O channels to realize integrated management and control of various sensors and actuators on ships and offshore platforms​

Support maritime-specific high-reliability communication protocols to achieve low-latency and anti-interference data interaction with the main control system​

Has module-level hot-swappable capability, which can complete module maintenance and replacement without interrupting system operation​

Built-in channel-level fault self-test and diagnosis function, which can achieve accurate fault location through LED indicators and main control system​

Output channels have overcurrent and short-circuit protection functions to effectively protect the module from damage caused by load abnormalities​

Passed certification from mainstream classification societies such as DNV GL, and fully complies with maritime equipment safety and reliability standards​

Support local logic operation function, which can execute preset emergency control strategies when the main control system communication is interrupted​

Has power-off data retention function to ensure that channel configuration and emergency logic parameters are not lost​

Adapt to all series of KONGSBERG maritime automation modules, and can flexibly expand the system control range​
