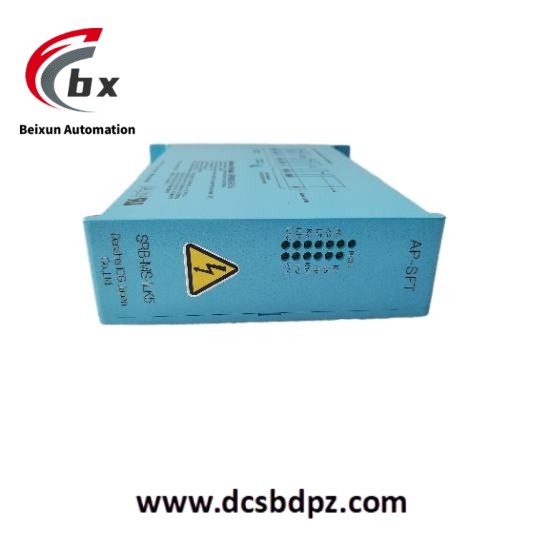

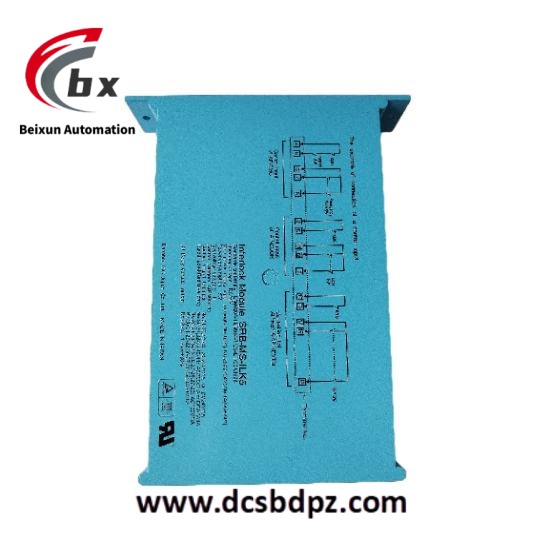

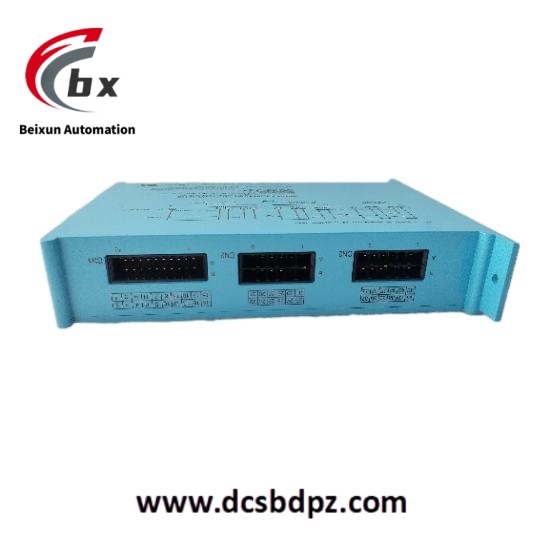

KOLLMORGEN SRB-MS-ILK5 Security interlock module

KOLLMORGEN SRB-MS-ILK5 Security interlock module

Specific Parameters

• Input Voltage Range: 24 VDC ±10%
• Output Type: Relay outputs (2 NO/NC contacts)
• Contact Rating: 250 VAC/30 VDC, 5 A
• Safety Level: Compliant with EN ISO 13849 PL d
• Response Time: Safe Torque Off ≤ 20 ms
• Communication Interface: Supports Profinet, EtherCAT (with optional communication module)
• Operating Temperature Range: -25°C to +70°C
• Protection Rating: IP20 (cabinet) / IP65 (machine-level)
• Dimensions: 120 mm × 60 mm × 100 mm
• Weight: 0.8 kg

Product Performance

1. Precise Safety Control: The Safe Torque Off function quickly cuts motor torque without powering down the entire system, preventing unexpected movement. The safe speed monitoring module continuously tracks equipment speed to ensure operation within safe limits4.
2. High Reliability Design: Redundant circuits and self-diagnostic mechanisms automatically detect internal faults and trigger safe states. Real-time status feedback via LED indicators minimizes downtime.
3. Flexible Deployment: Supports both cabinet and machine-level installation, compatible with multiple industrial communication protocols for seamless integration into existing automation systems, reducing retrofitting complexity.
4. Cost Optimization: Centralized safety logic management reduces wiring requirements compared to traditional distributed interlock systems, lowering hardware costs and installation time4.
