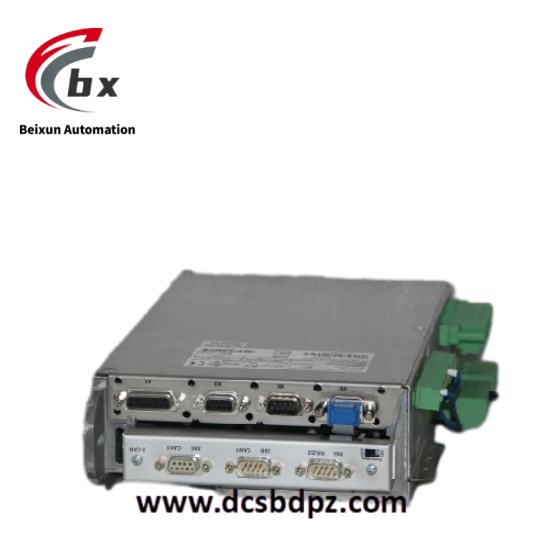

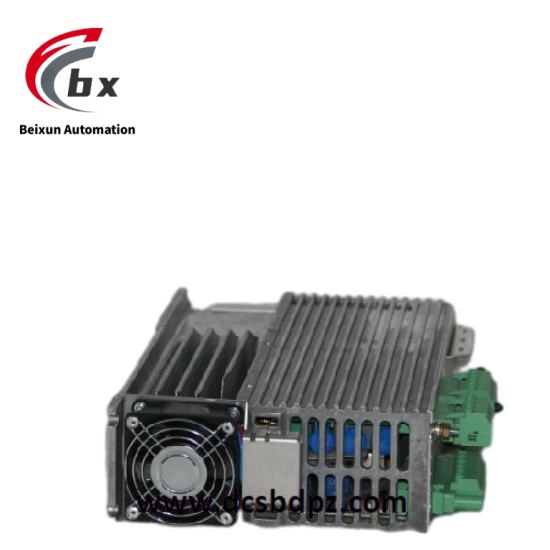

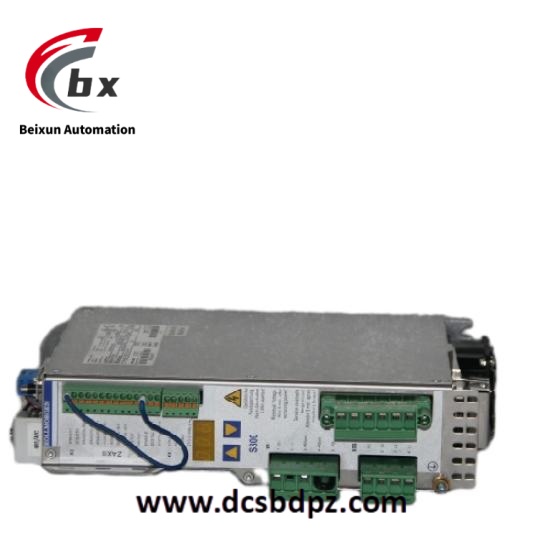

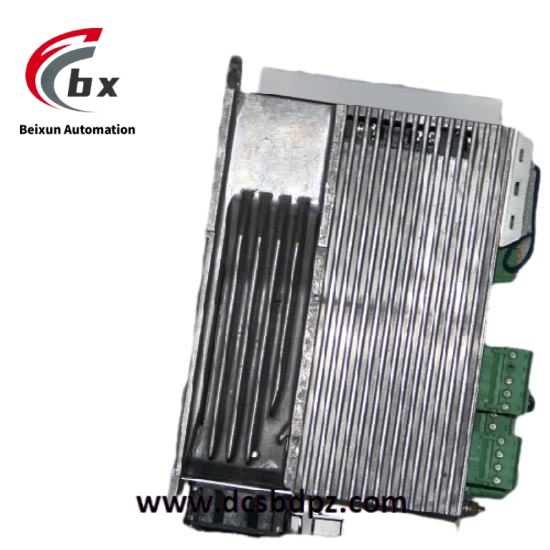

KOLLMORGEN SERVOSTAR 343 S3030 1-NA High performance servo drive

KOLLMORGEN SERVOSTAR 343 S3030 1-NA High performance servo drive

Specific Parameters​

• Rated Input Power: 2.5kVA​
• Input Power Supply: Three – phase 208 – 480VAC, frequency 47 – 63Hz​
• Rated Output Current: 3A RMS​
• Peak Output Current: 6A (for 1 second)​
• Control Modes: Supports speed control, torque control, and position control modes​
• Feedback Interface: Can be connected to common feedback devices such as incremental encoders and absolute encoders, and supports a variety of encoder protocols​
• Communication Interface: Equipped with RS – 232 and RS – 485 communication interfaces, and some models can be expanded with field – bus interfaces such as CANopen​
• Overload Capacity: 150% of rated current for 60 seconds; 200% of rated current for 3 seconds​
• Operating Temperature Range: 0°C to + 50°C​
• Storage Temperature Range: -25°C to + 70°C​
• Relative Humidity: 5% to 95%, non – condensing​
• Protection Level: IP20​
• Dimensions (Width × Height × Depth): 100mm×200mm×150mm​
• Weight: Approximately 2kg​

Product Performance​

1. High – Precision Motion Control: With advanced control algorithms, it can achieve high – precision positioning, speed, and torque control of motors. The positioning accuracy can reach ±1 pulse, meeting the extremely high requirements for motion accuracy in application scenarios such as precision machining and electronics manufacturing.​
2. Fast Response Characteristics: It has extremely short response times for the current loop, speed loop, and position loop, capable of quickly responding to control commands and rapidly adjusting the operating state of the motor. It can adapt to dynamic working conditions such as frequent start – stop and acceleration – deceleration, effectively improving production efficiency.​
3. Multi – mode Flexible Control: Supports three basic control modes: speed, torque, and position. Users can flexibly switch between these modes during operation according to different application requirements, and can also achieve combined control of multiple modes through programming, greatly enhancing the versatility and adaptability of the drive.​
4. Rich Communication and Feedback Interfaces: Through RS – 232, RS – 485, and expandable CANopen and other communication interfaces, it is convenient for data interaction and remote control with host computers, PLCs, and other devices. A variety of feedback interfaces can be adapted to different types of encoders, ensuring accurate position and speed feedback for closed – loop high – precision control.​
5. Reliable and Stable Operation: It adopts high – quality electronic components and optimized circuit design, and has complete over – current, over – voltage, and over – temperature protection functions. It can operate stably and reliably in harsh industrial environments, reducing equipment failure rates and extending equipment service life.​
6. Convenient Debugging and Maintenance: Equipped with special debugging software, users can perform parameter setting, operation status monitoring, and fault diagnosis through an intuitive interface. The software supports online parameter modification and real – time monitoring, greatly shortening the equipment debugging and maintenance time.​
