KOLLMORGEN S72402-NANANA-NA High performance servo drive

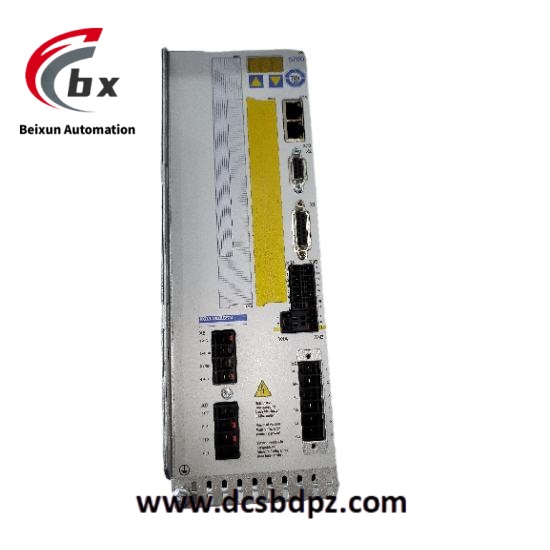

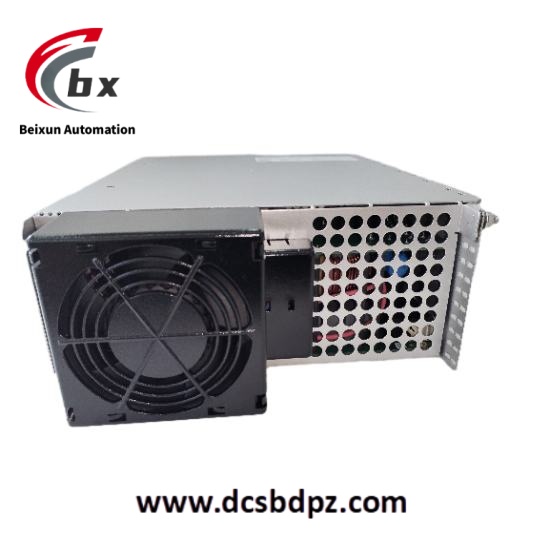

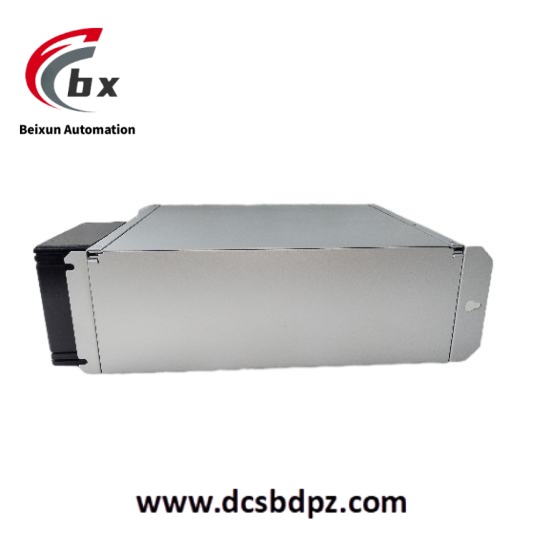

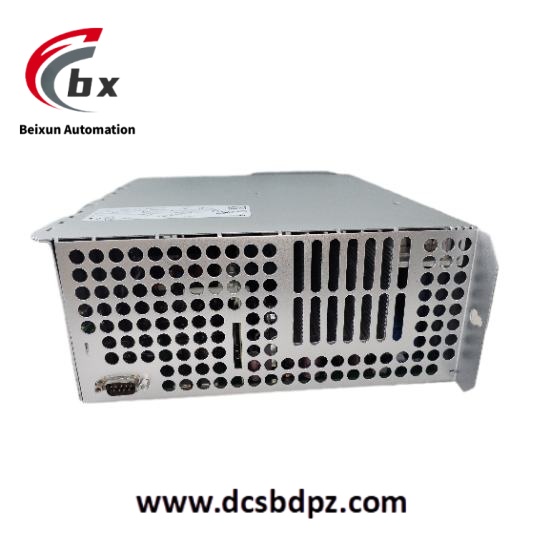

The KOLLMORGEN S72402 - NANANA - NA is a high - performance servo drive of the S700 series. Designed for precise control requirements in industrial automation, it ensures stable operation of equipment under complex working conditions by accurately regulating motor speed, torque, and position. With a compact design, it fits various installation spaces of industrial control cabinets. It is equipped with abundant communication and I/O interfaces, facilitating integration with devices such as PLCs and sensors to build a complete automated control system.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
KOLLMORGEN S72402-NANANA-NA High performance servo drive
Specific Parameters
- Input Voltage: Three – phase 380 – 480VAC, frequency 47 – 63Hz
- Output Power: Compatible motor power range: 15kW to 22kW
- Rated Output Current: 30A RMS
- Peak Output Current: 60A, duration 1 second
- Control Modes: Supports position control, speed control, torque control modes
- Feedback Interface: Compatible with incremental encoders and absolute encoders, supports feedback protocols such as Hiperface, EnDat 2.2
- Communication Interface: Standard RS – 232, CANopen interfaces, optional SERCOS III, EtherCAT communication modules
- Digital I/O: 8 configurable digital inputs, 8 configurable digital outputs
- Analog I/O: 2 analog inputs (±10V), 1 analog output (±10V)
- Minimum Inductance: 0.7mH
- Operating Temperature Range: 0°C to 40°C
- Storage Temperature Range: -25°C to 70°C
- Relative Humidity: 5% to 95% (non – condensing)
- Protection Level: IP20
- Dimensions (Width × Height × Depth): 150mm×300mm×200mm
- Weight: 5kg
- Noise Emission: Running noise 65dB(A)
- Vibration Class: Complies with IEC standard 3M1 vibration class
Product Performance
- High – Precision Motion Control: Using advanced servo control algorithms, in the position control mode, the positioning accuracy reaches ±1 pulse, ensuring precise mechanical movement and meeting the requirements of high – precision industries such as semiconductor manufacturing and precision machining.
- Fast Dynamic Response: The current loop response time is less than 125μs, and the speed loop response time is less than 1ms, enabling rapid tracking of control command changes. Under high – speed start – stop and frequent acceleration – deceleration conditions, it maintains stable equipment operation and improves production efficiency.
- Flexible Multi – mode Adaptation: Supports three control modes: position, speed, and torque. Users can freely switch according to production process requirements and also achieve combined control of modes through programming, suitable for diverse industrial automation application scenarios.
- Efficient Communication and Integration: Through communication protocols such as CANopen, SERCOS III, and EtherCAT, it enables high – speed data interaction with host computers and other drives. Abundant I/O interfaces can directly connect sensors and actuators, simplifying system wiring and improving integration efficiency.
- High – Reliability Design: Using industrial – grade electronic components, it has comprehensive protection functions against overcurrent, overvoltage, overheating, short – circuit, etc. Certified by international standards such as CE and UL, it ensures long – term stable operation of equipment in harsh environments such as high temperature, humidity, and electromagnetic interference.
- Convenient Debugging and Maintenance: Equipped with Servostar S7 debugging software, it supports fast parameter setting, real – time status monitoring, and fault diagnosis. It allows online parameter modification, shortening equipment debugging and maintenance time and reducing operation and maintenance costs.
