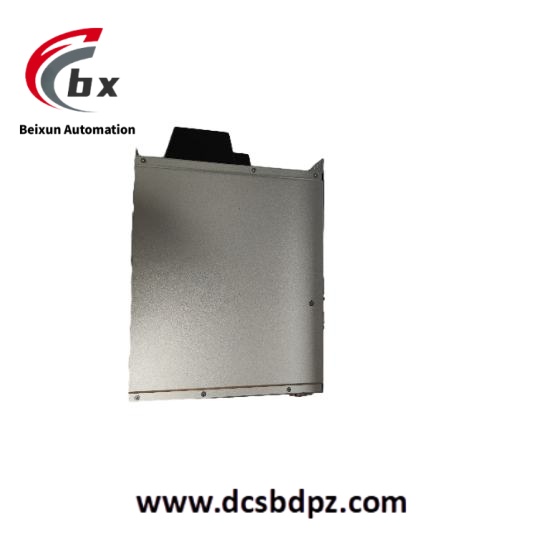

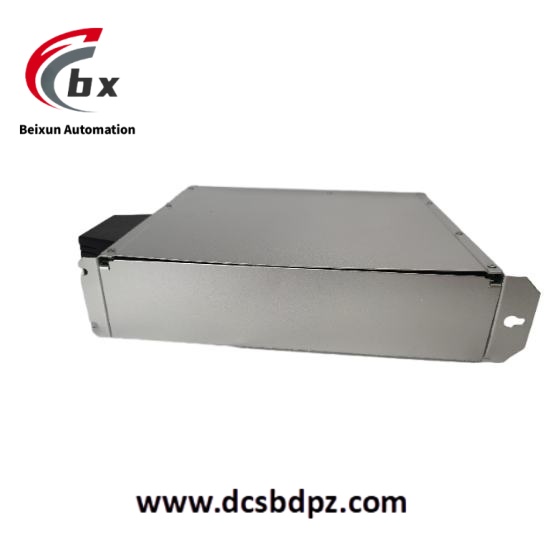

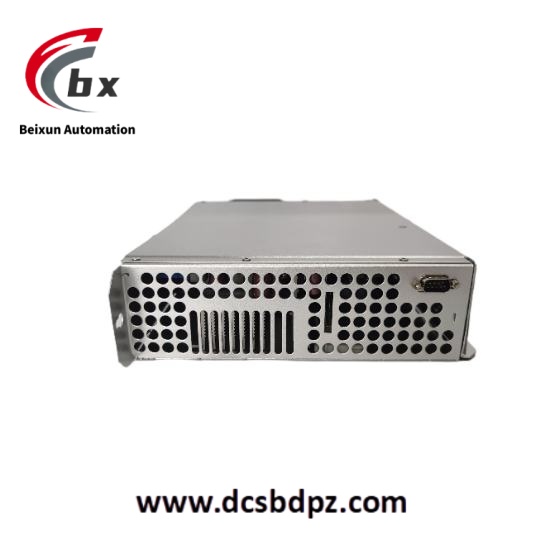

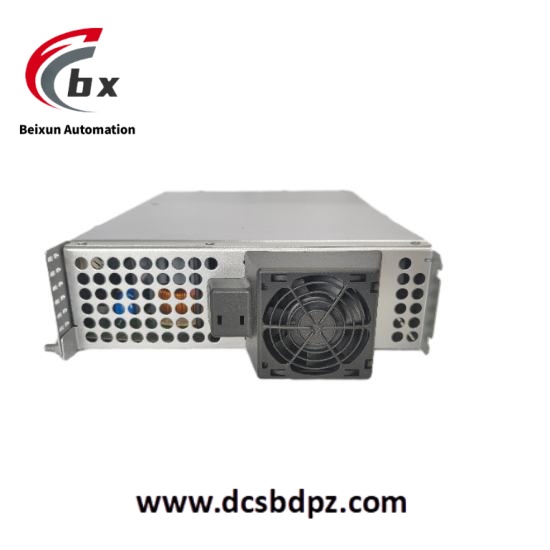

KOLLMORGEN S70602-NANANA High performance servo drive

Specific Parameters

Rated Input Power: 2.2kVA
Input Power Supply: Three – phase 208 – 480VAC, frequency 47 – 63Hz
Rated Output Current: 3A RMS
Peak Output Current: 6A (for 1 second)
Control Modes: Supports position control, speed control, torque control modes
Feedback Interface: Can be connected to incremental encoders and absolute encoders, and supports common encoder feedback protocols such as Hiperface and EnDat
Communication Interface: Standard RS – 232 interface for basic programming and debugging; equipped with CANopen communication interface to achieve communication with the host computer and other devices; some models can support high – speed communication protocols such as SERCOS and EtherCAT through expansion modules
Digital I/O: Multiple configurable digital input and output ports for connecting external sensors and actuators to achieve signal interaction and control
Analog I/O: Supports analog signal input and output, which can be connected to analog sensors or actuators to facilitate more precise control
Operating Temperature Range: 0°C to 40°C
Storage Temperature Range: -25°C to 70°C
Relative Humidity: 5% to 95%, non – condensing
Protection Level: IP20, which can effectively prevent dust and adapt to general industrial environments
Dimensions (Width × Height × Depth): 100mm×200mm×150mm
Weight: Approximately 2kg

Product Performance

High – Precision Motion Control: Using advanced control algorithms, in the position control mode, the positioning accuracy can reach ±1 pulse, meeting the needs of industries with extremely high requirements for motion accuracy, such as precision machining and electronics manufacturing. In terms of speed control, the speed fluctuation is extremely small, ensuring the stable operation of equipment.
Fast Response Characteristics: The current loop response time is usually less than 125μs, and the speed loop response time is less than 1ms. It can quickly respond to control commands and adjust the operating state of the motor in a timely manner. Under dynamic working conditions such as frequent start – stop and acceleration – deceleration, it can quickly follow the command changes, effectively improving production efficiency.
Multi – mode Flexible Control: Supports three basic control modes: position, speed, and torque. Users can flexibly switch control modes during operation according to different application scenarios and process requirements, and can also achieve combined control of multiple modes through programming, greatly improving the versatility and applicability of the drive and adapting to the control requirements of various industrial automation equipment.
Rich Communication and Feedback Interfaces: Through RS – 232, CANopen, and expandable SERCOS, EtherCAT and other communication interfaces, it is convenient for data interaction and remote control with host computers, PLCs, and other devices. Diverse feedback interfaces can be connected to different types of encoders to ensure accurate position and speed feedback for high – precision closed – loop control.
Reliable and Stable Operation: Adopts high – quality electronic components and optimized circuit design, and has complete over – current, over – voltage, and over – temperature protection functions. Even in harsh industrial environments, such as high electromagnetic interference and large temperature fluctuations, it can still operate stably and reliably, reducing equipment failure rates and extending equipment service life.
Convenient Debugging and Maintenance: Equipped with special debugging software, users can perform parameter setting, operation status monitoring, and fault diagnosis through an intuitive interface. The software supports online parameter modification and real – time monitoring of the drive operation status, greatly shortening the equipment debugging and maintenance time and reducing maintenance costs.
