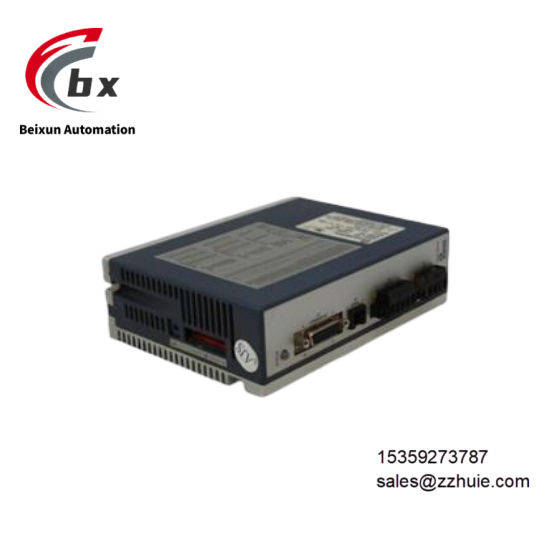

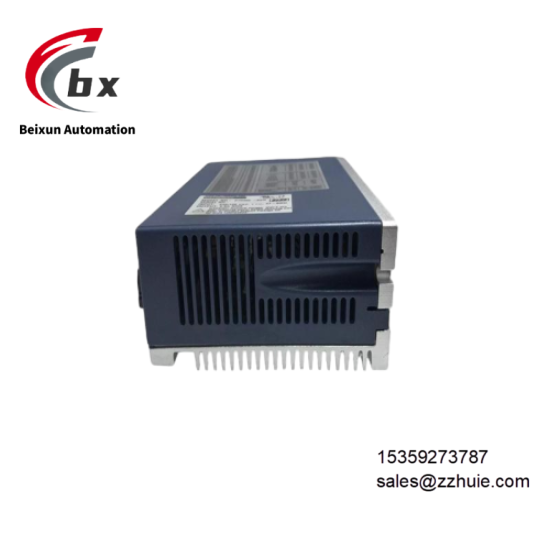

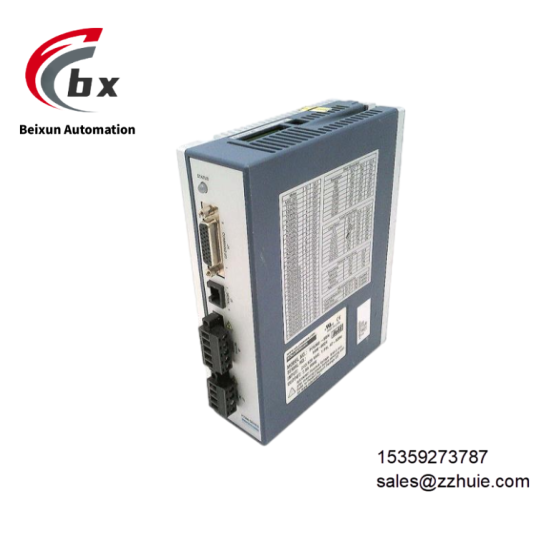

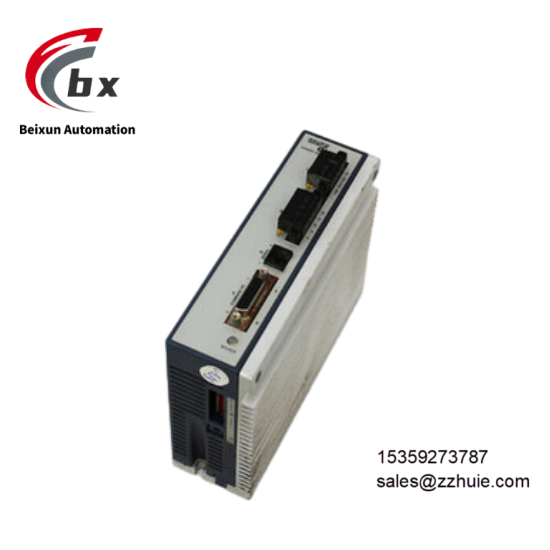

KOLLMORGEN P70360-SDN High performance micro stepper driver

KOLLMORGEN P70360-SDN High performance micro stepper driver

Specific Parameters

Brand KOLLMORGEN, Product Series Kollmorgen P7000 Series

Product Type Industrial-Grade Micro-Stepping Drive, Precision Motion Control Drive Component, Stepper Motor Drive Module, Original Authentic Spare Part

Model KOLLMORGEN P70360-SDN

Country of Origin The United States (Produced by KOLLMORGEN original factory)

Compatible Devices 2-Phase NEMA Stepper Motors (Recommended T2x/N3x/K3x Series), Industrial Controllers, Precision Manufacturing Equipment, Medical Equipment, Industrial Robots, Automated Production Line Equipment, CNC Equipment

Core Functions Stepper Motor Drive Control, Step/Direction Control, Dynamic Smoothing Control, Multi-Stepping Enhanced Filtering, Encoderless Stall Detection, Automatic Current Reduction, Fault Detection and Protection, Parameter Configuration via Software/Switch

Control Mode Supports Step/Direction Control Mode, Default General Input Configuration is Jog±/EOT±/Fault Reset

Patented Technologies Integrates Dynamic Smoothing™ Technology, Multi-Stepping™ Technology, Encoderless Stall Detection™ Technology

Communication and Control Interfaces Step/Direction Input Interface, 9 General Input Interfaces, 2 General Output Interfaces, No RS-485 Communication Interface (Basic Version Configuration)

Input Voltage 120/240 VAC (50/60 Hz), Corresponding DC Bus Voltage 320 VDC (Optional 160 VDC Bus)

Maximum Output Power 350 W (When Input is 240 VAC)

Output Current Maximum 2.5 A RMS (Peak 3.5 A RMS)

Stepping Resolution 200~50000 Steps per Motor Revolution, Configurable via S2-2~S2-4 Switches

Pulse Input Frequency Up to 2 MHz, Minimum Pulse Width 250 ns

Motor Inductance Range 320 VDC Bus: 50~200 mH; 160 VDC Bus: 7~30 mH

Motor Cable Length Maximum 20 m (24 AWG Cable)

Bus Voltage Protection Undervoltage Fault 130 VDC, Overvoltage Fault 440 VDC, Regenerative Voltage 420 VDC

Inrush Current Peak 30 A (Pulse Width 4 ms), Recommended Slow-Blow Fuse 7 A

I/O Characteristics Step/Direction Input Voltage 2.5~5.5 VDC, Current 5~20 mA; General Input Voltage 3.5~24 VDC, Current 10 mA, Response Time ≤250 μs; General Output Maximum Voltage 30 VDC, Maximum Current 10 mA, Response Time ≤250 μs

Operating Temperature Range 0℃ to 40℃

Storage Temperature Range -20℃ to 70℃

Relative Humidity 90%, Non-Condensing

Altitude ≤1500 m (5000 ft)

Pollution Degree Class II

Protection Class IP20 (Needs to Be Installed in the Cabinet)

Physical Dimensions Length 170.18 mm, Width 132.21 mm, Height 52.324 mm (Version Without RS-485)

Physical Weight Approximately 0.7kg

Mounting Method Panel Mounting, Must Be Fixed on a Cold Plate (Aluminum Recommended), Mounted Vertically (Heat Sink Fins Facing Left), with At Least 25.4 mm Heat Dissipation Space Around

Diagnostic Function Equipped with LED Indicators for Power, Operation Status and Fault Alarm, Fault Diagnosis Can Be Performed Through Front Panel LED, Built-in Fault Detection Circuits for Stall, Overcurrent, Overvoltage, Undervoltage, Overheating, etc.

Product Material Industrial-Grade Reinforced Flame-Retardant Plastic Enclosure, High-Temperature Resistant Insulation Material, Built-in Electrical Isolation Components

Special Functions The motor automatically reduces the current to 75% of the rated value 100 ms after standing still (the ratio and delay can be adjusted via software); Dynamic Smoothing technology can reduce motion impact and mechanical resonance; Multi-Stepping technology can smooth low-resolution input into micro-stepping output

Product Performance

KOLLMORGEN P70360-SDN is an original Kollmorgen device with extremely strong adaptability, which can perfectly match 2-phase NEMA stepper motors, especially Kollmorgen T2x/N3x/K3x series stepper motors, compatible with various industrial controllers, seamlessly integrated into various high-precision motion control equipment such as precision manufacturing, medical equipment and industrial robots, no additional adaptation components required, greatly reducing system integration complexity. The product has extremely high control precision, supports adjustable stepping resolution of 200~50000 steps per motor revolution, maximum 2 MHz pulse input frequency, combined with patented technologies such as Dynamic Smoothing and Multi-Stepping, which can realize high-precision, low-noise and stable motion control, effectively reduce mechanical resonance and extend the mechanical service life of the equipment. The product has outstanding reliability, adopts industrial-grade high-quality components and integrated power module design, built-in complete fault protection circuits such as overcurrent, overvoltage, undervoltage, overheating and stall, has excellent anti-electromagnetic interference ability, can operate continuously and stably in a temperature environment of 0℃ to 40℃ and harsh working conditions such as dust and strong electromagnetic interference, and the inrush current protection design further improves the safety of equipment operation. The compact panel mounting design facilitates installation, maintenance and system expansion, basic parameters can be quickly configured through switches, and refined debugging can also be performed through P7000Tools software without complex programming, greatly improving operation and maintenance efficiency, and providing stable, efficient and precise drive support for various high-precision motion control scenarios.
