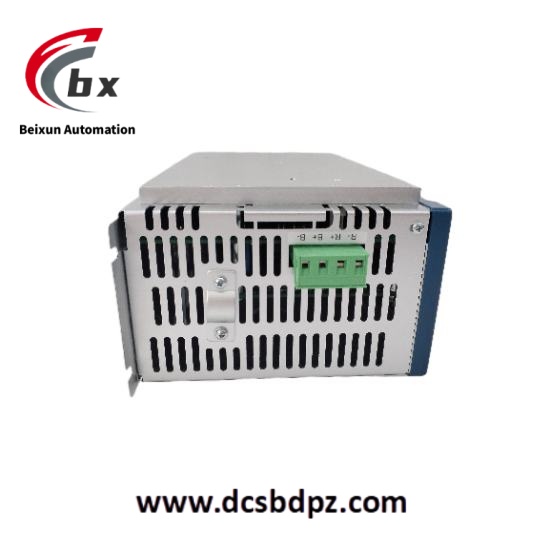

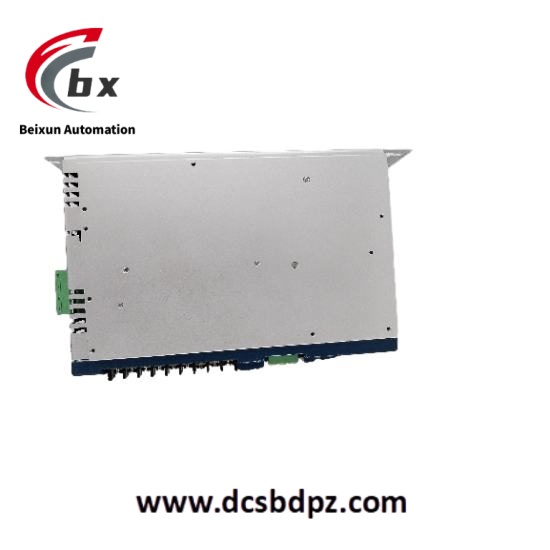

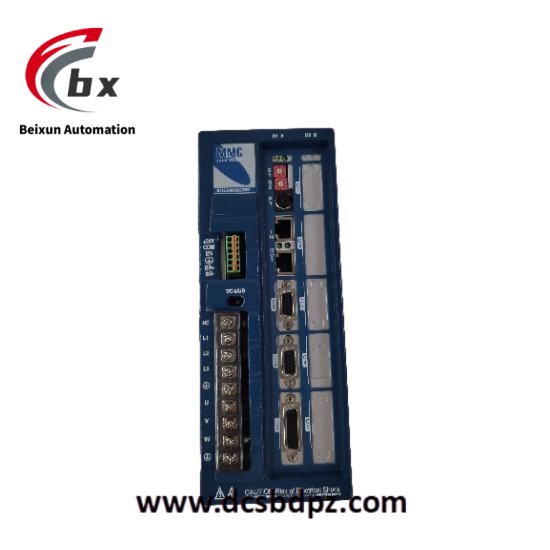

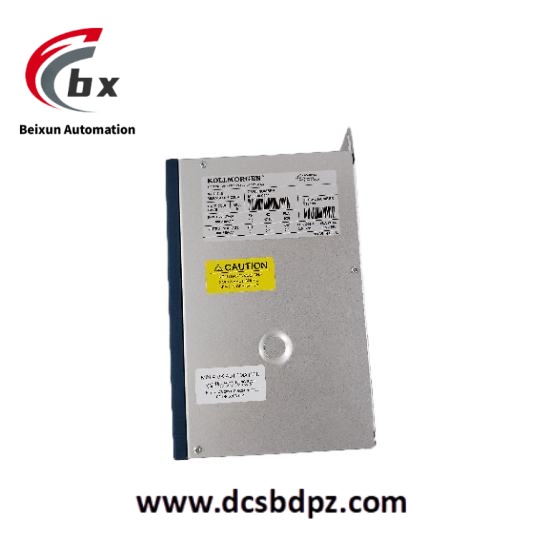

KOLLMORGEN MMC-SD-0.5-230-D Compact servo motor

The KOLLMORGEN MMC-SD-0.5-230-D is a compact servo motor utilizing a frameless design, engineered for high dynamic response and power density. The rotor integrates directly into the mechanical load shaft, enabling continuous torque output via forced air cooling. Designed for precision motion systems with space constraints, it is natively compatible with Kollmorgen AKD drives and supports EtherCAT real-time communication.

Tag：KOLLMORGEN MMC-SD-0.5-230-D

KOLLMORGEN MMC-SD-0.5-230-D Compact servo motor

Technical Specifications

Rated Torque: 0.5 Nm (continuous), 1.5 Nm (peak)
Rated Speed: 6000 rpm (max 12000 rpm)
Rated Power: 314 W @ 6000 rpm
Voltage Rating: 230 V AC (3-phase)
Thermal Management: Forced air cooling (airflow ≥0.3 m³/min)
Insulation Class: Class F (155°C)
Feedback System: 20-bit high-resolution encoder (single-turn absolute)
Protection Rating: IP65 (rotor assembly), IP20 (stator assembly)
Weight: 1.2 kg (stator + rotor only)

Performance Characteristics

Dynamic Response: Rotor inertia 0.06 kg·cm², bandwidth ≥500 Hz
Efficiency: Energy efficiency >90% (rated conditions)
Torque Linearity: ±0.5% F.S. (full temperature range)
Axial Load Capacity: Max 50 N axial force (reinforced bearings)
Vibration Class: Compliant with ISO 10816-3 Class A (precision balanced rotor）
