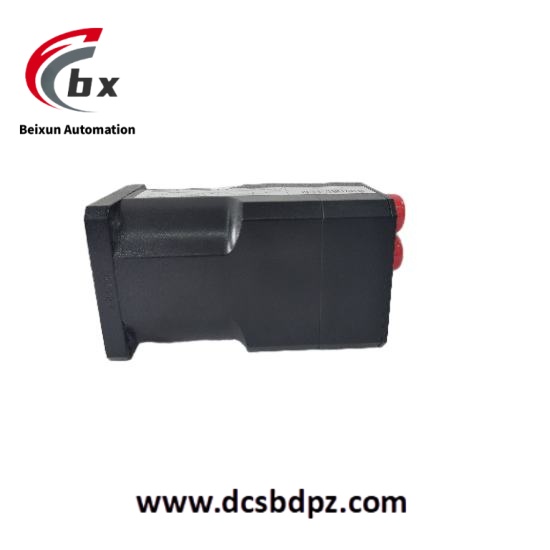

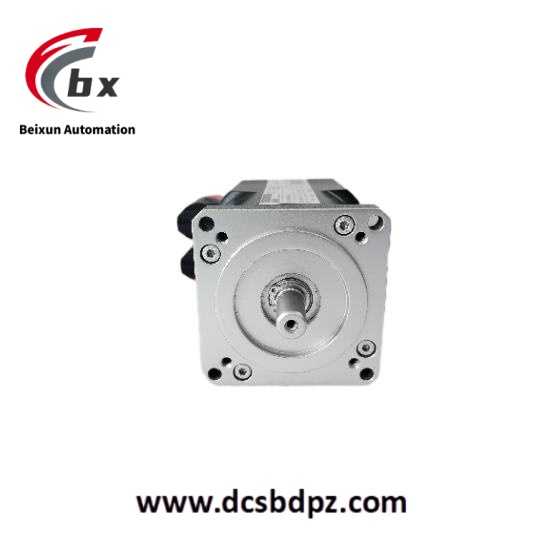

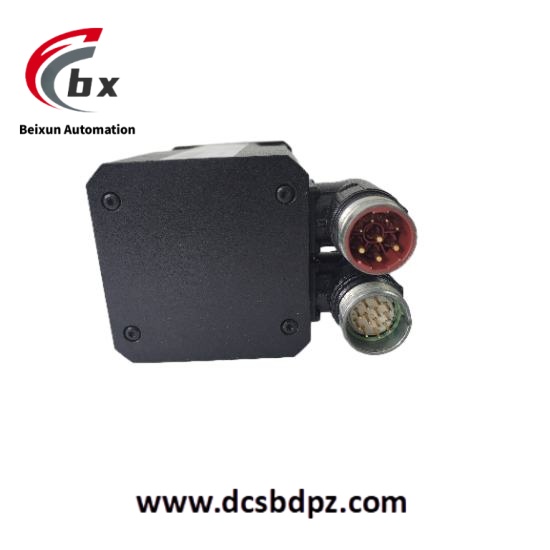

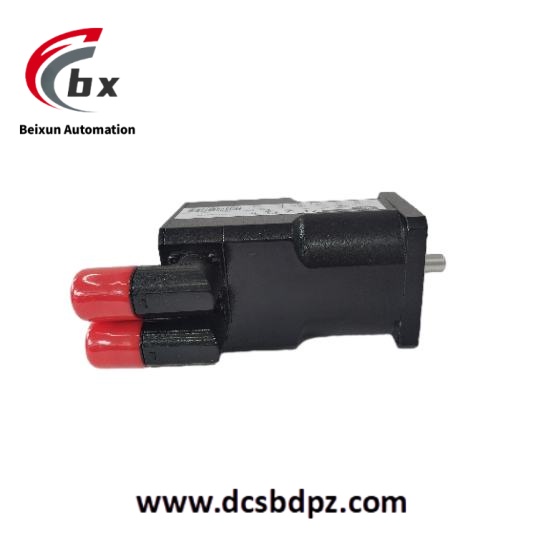

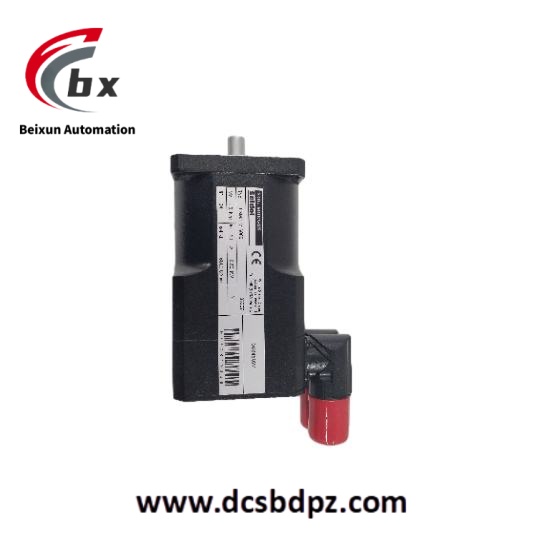

KOLLMORGEN 6SM37M-6000 Synchronous Servo motor

KOLLMORGEN 6SM37M-6000 Synchronous Servo motor

Specific Parameters​

• Rated Power: 0.8kW​

• Stall Torque: 0.5Nm​

• Rated Torque: 0.8Nm (at 6000rpm)​

• Peak Torque: 4.0Nm​

• Rated Speed: 6000rpm​

• Stall Current: 1.5A​

• Protection Class: IP64​

• Insulation Class: Class F​

• Motor Weight: 2.18kg​

• Motor Flange Size: 75mm square​

• Shaft Diameter: 11mm (with keyway)​

• Locating Spigot Diameter: 60mm​

• Pitch Circle Diameter of Mounting Holes: 90mm (with four mounting holes)​

• Total Motor Length: 190mm​

Product Performance​

1. High – Speed and High – Torque Output: It can stably output a rated torque of 0.8Nm at a high speed of 6000rpm, and the peak torque can reach 4.0Nm, which can meet the operation requirements of equipment that needs high – speed and high – torque output.​

2. Precise Control: The built – in resolver provides accurate position feedback for the motor. Combined with a high – performance driver, it can achieve precise speed and position control, meeting the strict requirements for motion control accuracy in applications.​

3. Good Voltage Adaptability: The motor winding can adapt to a bus voltage of up to 600V DC, and it can also operate at a speed of 3000 rpm at 300V DC, showing good voltage adaptability and facilitating use under different power supply conditions.​

4. Reliable Protection: The IP64 protection class makes it dust – proof and splash – proof. It can operate stably in industrial environments with some dust and occasional splashing water, ensuring the service life and operational reliability of the motor.
