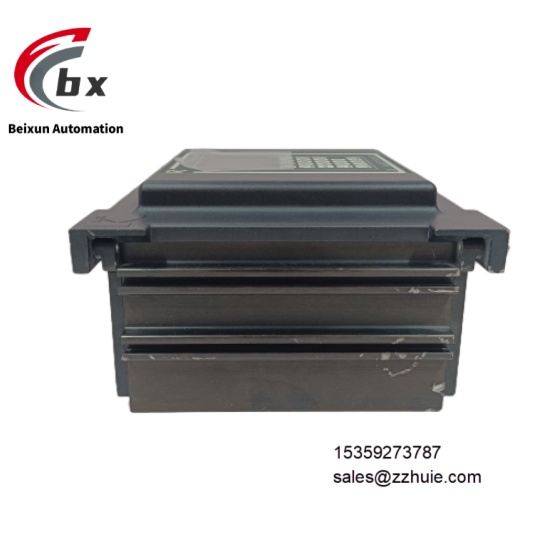

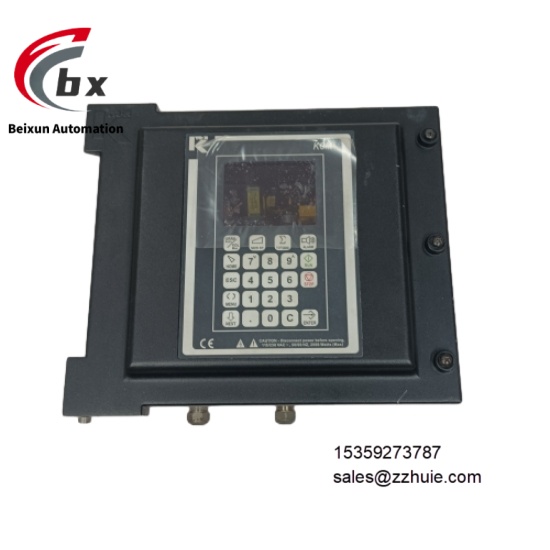

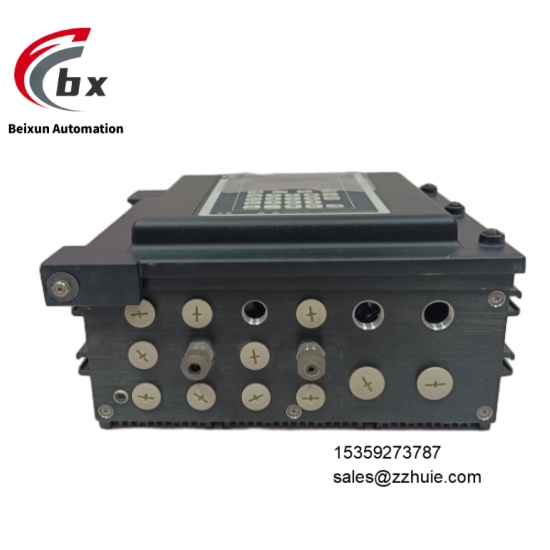

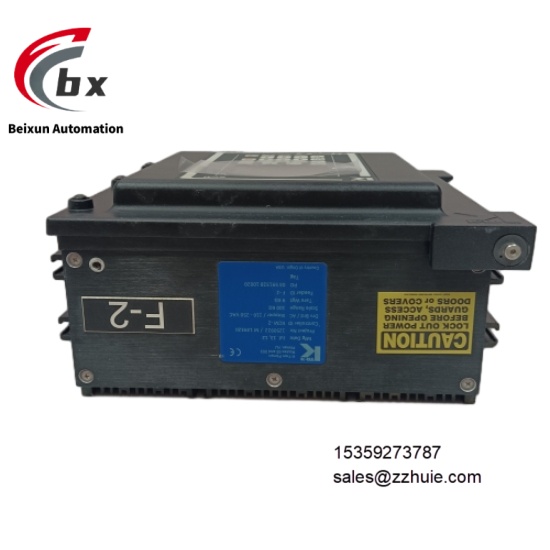

K-Tron KCM-2 Material conveying and control unit

Specific Parameters

Electrical Parameters
Power Supply Voltage: 24V DC ±10%, supporting 115/230V AC 50/60Hz external power module
Communication Protocol: Supports Modbus RTU, AB-DF1 protocols, equipped with 2 K-Port communication interfaces
Digital I/O: 8-channel digital input (dry contact), 6-channel digital output (relay contact, capacity 5A/250V AC)
Analog I/O: 4-channel analog input (4-20mA/0-10V), 2-channel analog output (4-20mA)
Frequency Input: Supports 0-10kHz pulse signal acquisition for speed feedback
Isolation Level: 2.5kV AC between power supply and signal circuit (1 minute), optoelectronic isolation for communication interface
Explosion-Proof Rating: II 3D Ex tc IIIC T 65°C (dust explosion-proof), II 2G Ex ib IIB T4 (gas explosion-proof)
Power Consumption: ≤30W under normal operation, maximum power consumption ≤45W
Environmental Parameters
Operating Temperature: -10°C to 65°C, continuous operation without condensation
Storage Temperature: -40°C to 85°C
Relative Humidity: 10% to 95% (non-condensing)
EMC Immunity: Complies with EN 61000-4-2/3/4 standards, ESD protection ±15kV contact discharge
Protection Class: IP65 (standard type), IP67 (hygienic type)
Dust Protection: Tolerates dust environment with particle size ≥0.1μm, adapting to Zone 22 dust explosion-proof area
Mechanical Parameters
Dimensions: 280mm (L) × 180mm (W) × 120mm (H), compatible with standard equipment control cabinet installation
Mounting Method: Wall-mounted or rail-mounted, compatible with DIN 35mm guide rail
Interface Type: Phoenix terminals (power and I/O), DB9 pin interface (programming and communication)
Housing Material: Die-cast aluminum alloy with epoxy resin coating (standard type); 316 stainless steel (hygienic type)
Weight: Approximately 3.2kg (standard type), 3.8kg (hygienic type)
Indicators: Power (PWR, green), running (RUN, green), fault (ERR, red), communication (COM, yellow)

Product Performance

Adopting a 32-bit high-performance CPU with an operation speed ≥80MIPS, the material flow control accuracy is ≤±0.2% FS, supporting 100ms-level data refresh and adjustment response. Integrated with an adaptive PID regulation algorithm, it can dynamically adjust control parameters according to material characteristics, adapting to the conveying needs of materials with different densities and fluidities.

The explosion-proof structure design can operate stably in Zone 22 dust explosion-proof area and Zone 1 gas explosion-proof area, and the housing protection capability ensures no performance degradation in humid and dusty industrial environments. The multi-protocol communication function supports seamless connection with PLC and DCS systems, with data interaction delay ≤5ms, realizing centralized production management and control.

The fault diagnosis system can real-time monitor 16 types of fault states such as power abnormality, communication interruption and sensor failure, with fault response time ≤10ms, and simultaneously trigger relay output alarm and information reporting. The device supports online programming and parameter configuration, and program upgrade and function expansion can be completed through the DB9 port without disassembling the device.
