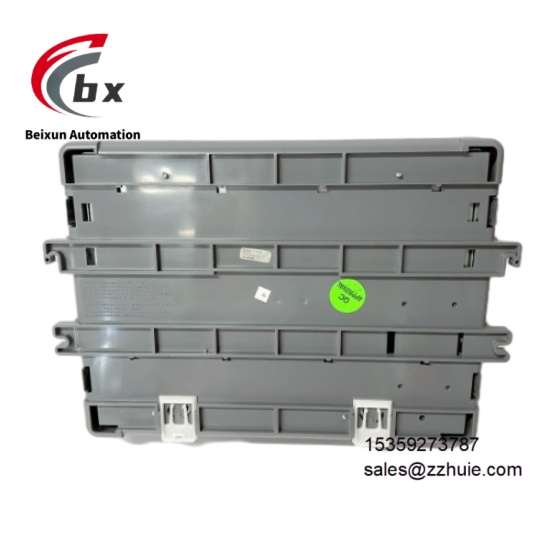

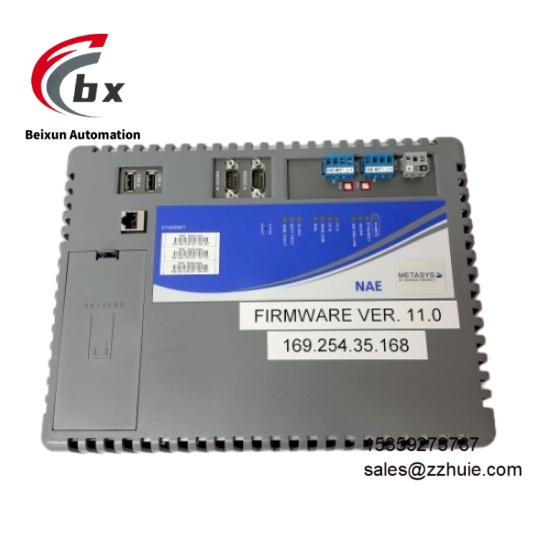

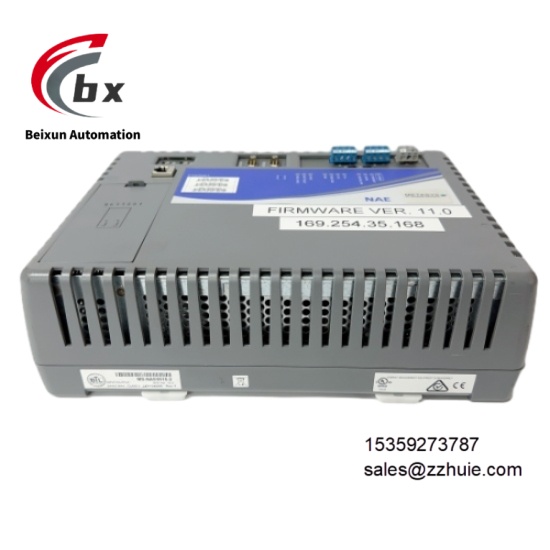

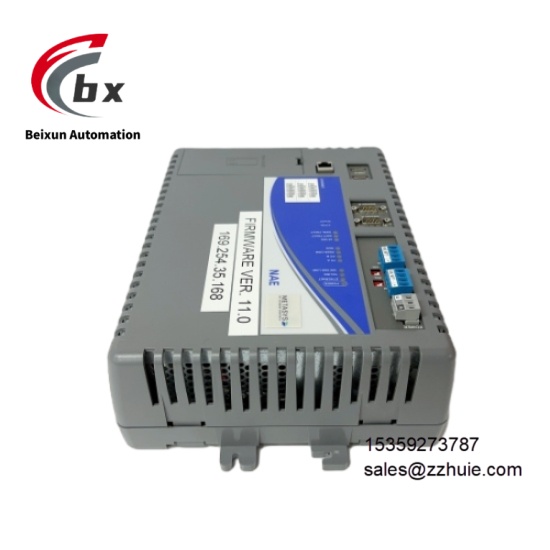

JOHNSON MS-NAE5510-2 Network Automation Engine Module

JOHNSON MS-NAE5510-2 Network Automation Engine Module

Specific Parameters​

Electrical and Performance Parameters​

Operating Voltage 24V AC/DC, adapting to 20-30V AC wide voltage range (50/60Hz)​

Power Consumption 50VA, operating power 12W​

Processor Advanced multi-core processor, supporting real-time processing of complex tasks​

Memory Configuration 1GB SDRAM, built-in 8GB flash memory, supporting local data storage and historical query​

Management Capacity Up to 2000 BACnet objects manageable​

Response Time 1 second, realizing real-time feedback of equipment status and fast execution of control commands​

Communication Protocols Supports BACnet/IP, BACnet MS/TP, N2 bus protocols, compatible with LonWorks and Modbus​

Certification Standards Complies with CE, ROHS, UL international standards​

Interface and Connection Parameters​

Ethernet Interfaces 2 10/100Mbps adaptive Ethernet ports, supporting network redundancy​

Serial Interfaces 2 RS-485 interfaces, 2 RS-232-C ports, supporting dual N2 or BACnet MS/TP trunks​

USB Interfaces 2 USB serial ports, used for local configuration and data transmission​

Expansion Interfaces Supports I2C interface, adapting to external equipment expansion​

Bus Support Integrates N2 bus, realizing efficient networking of field devices​

Mechanical and Environmental Parameters​

Overall Dimensions 229mm×133mm×44mm, compact design saves installation space​

Weight 0.5kg, lightweight structure facilitates installation and maintenance​

Mounting Method Supports wall-mounted installation and DIN rail installation​

Protection Rating IP30, with basic dust-proof capability​

Operating Temperature 0℃ to 50℃, no performance derating over the entire temperature range​

Storage Temperature -20℃ to 70℃, meeting storage and transportation requirements​

Humidity Range 0% to 100%, adapting to high-humidity environments​

Air Pressure Range 300hpa to 1100hpa, adapting to different altitude scenarios​

Product Performance​

Strong integration capability, compatible with multi-brand building equipment and sensors, breaking system information silos​

High control precision, 1-second response time with real-time clock, ensuring accurate collaborative operation of equipment​

Excellent communication efficiency, multi-interface and protocol support, realizing high-speed data transmission and stable network connection​

High operational reliability, redundant power supply and network design, long mean time between failures​

Good energy optimization, adjusting equipment status through data collection and analysis, reducing building operation energy consumption​

High management convenience, built-in web server and visual interface, supporting remote monitoring and configuration​

Comprehensive security protection, with traffic filtering, intrusion detection and firewall functions, ensuring network security​

Wide environmental adaptability, wide temperature and humidity operating range, tolerating complex industrial and building environments​
