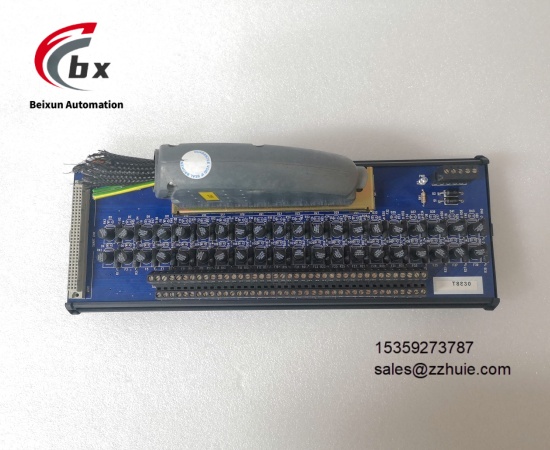

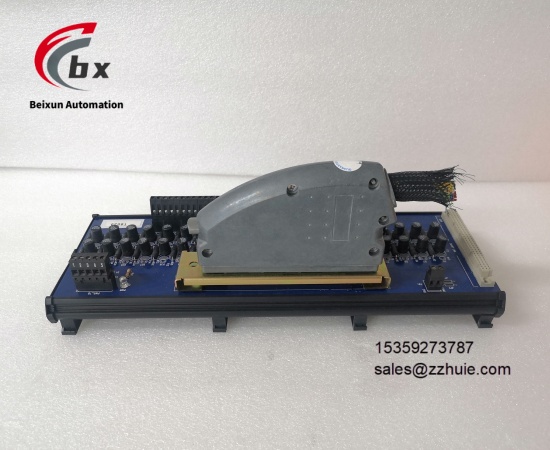

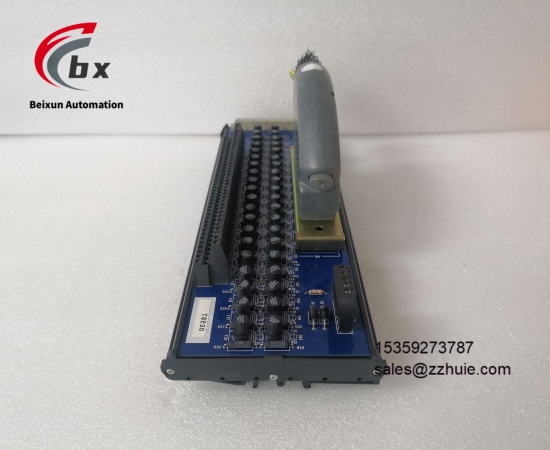

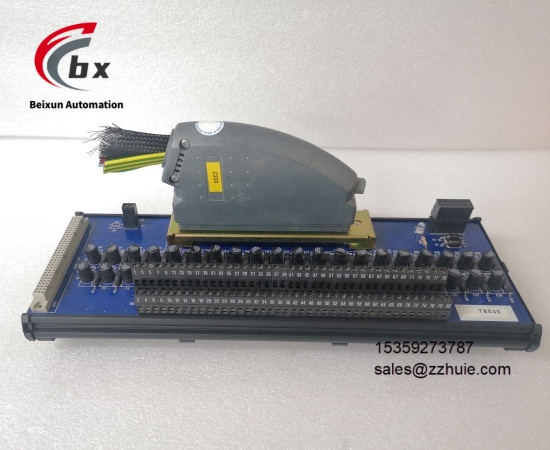

Ics Triplex T8830 Analog input module
Specific Parameters
Brand ICS Triplex (American Brand, a Subsidiary of Honeywell Process Solutions)
Product Series Trusted TMR Series
Product Type 40-Channel Analog Input FTA (Field Termination Assembly)
Model T8830
Number of Input Channels 40 Analog Input Channels
Input Signal Types Supports 4-20mA, 0-10V Analog Signals
Supply Voltage Dual 24VDC Power Supply
Per Channel Protection Each Channel Equipped with 50mA Fuse for Fault Isolation
Connection Method Industry-Standard 2-Wire On-Site Connection, SmartSlot Connection, 96-Pin Socket Interface
Indicators On-Board LED Indicators for Field Power Integrity
Mounting Method DIN Rail Mount
Physical Dimensions 16cm×16cm×12cm (Width×Height×Depth)
Physical Weight 0.8kg
Operating Temperature Range -40℃ to +85℃
Storage Temperature Range -40℃ to +85℃
Protection Level IP65 (Inside Cabinet)
Certification Standards Complies with IEC 61508 SIL 3 (External Barrier) Safety Level
Adaptable Architecture Adapts to Trusted TMR Triple Modular Redundancy (TMR) Architecture, Supports 3-2-0 Fault-Tolerant Operation
Compatible Modules Adapts to Trusted TMR Analog Input Modules (e.g., T8431)
Product Performance
Adopting a 40-channel high-density analog input design, it supports 4-20mA and 0-10V analog signal collection, which can meet the terminal connection needs of large-scale on-site analog signals and improve system integration efficiency.
Each channel is equipped with a 50mA fuse, which can effectively achieve fault isolation, avoid the impact of a single channel fault on the entire module operation, and ensure the safety and stability of signal collection.
Adapting to the Trusted TMR triple modular redundancy architecture and complying with the IEC 61508 SIL 3 (external barrier) safety level, it can still maintain normal signal transfer function in case of any single-point hardware failure, meeting the needs of high-safety and high-fault-tolerance industrial scenarios.
Supports SmartSlot connection function, which can realize “one-to-many” hot replacement of modules, making module replacement convenient and fast, greatly reducing system downtime costs and improving operation and maintenance efficiency.
On-board LED indicators provide real-time feedback on field power integrity, facilitating on-site staff to quickly troubleshoot power abnormalities and reduce fault handling time.
Adopting a dual 24VDC power supply design, the power supply is stable and reliable, which can effectively avoid module outage caused by single-channel power supply failure and ensure continuous system operation.
Adopting a DIN rail mounting design, it is compact in size and convenient to install, which can flexibly adapt to the layout of various industrial control cabinets and save installation space.
The operating temperature range covers -40℃ to +85℃, and the protection level reaches IP65, which has excellent ability to resist harsh environments and can operate stably for a long time in harsh scenarios such as offshore platforms, high-temperature chemical workshops and extremely cold mines.
Adopting industry-standard 2-wire on-site connection, it is seamlessly compatible with Trusted TMR series analog input modules and on-site sensors, and can be integrated into the existing control system without additional modification, with extremely strong compatibility.
