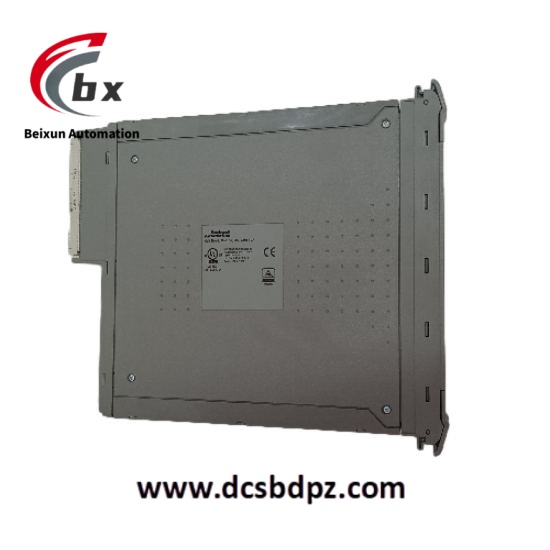

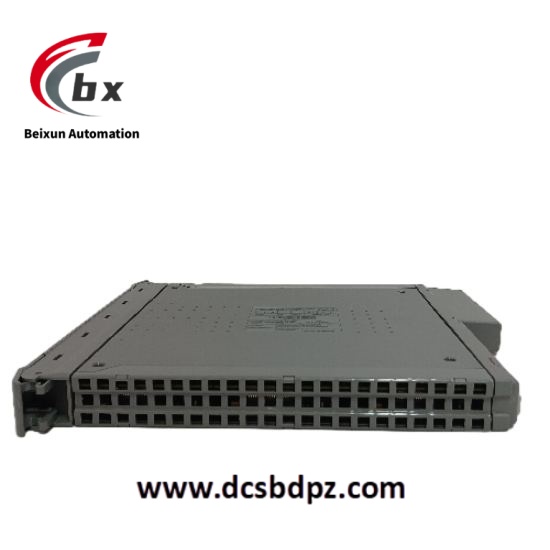

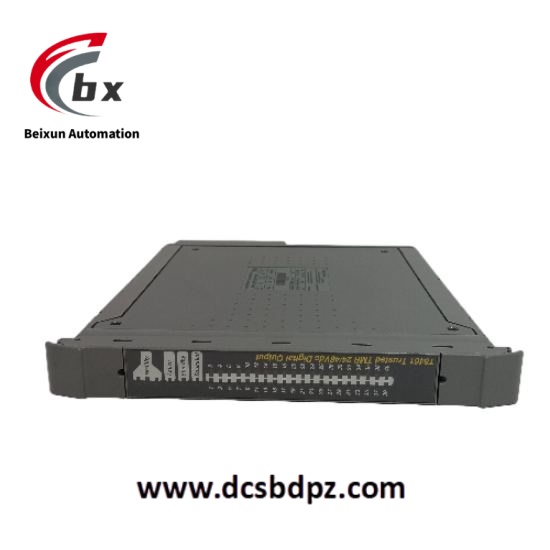

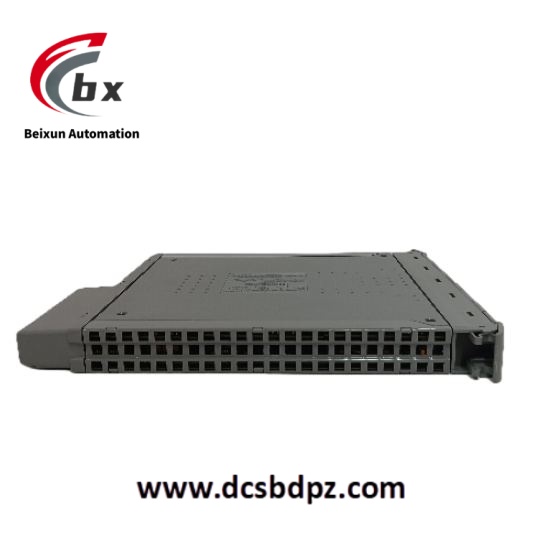

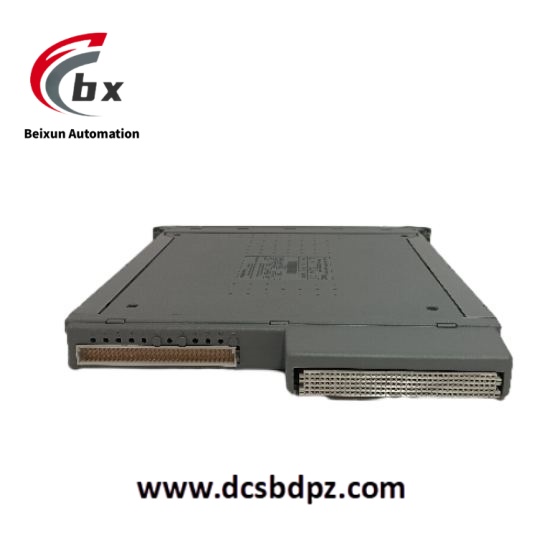

Ics Triplex T8461 High performance digital output module

Power supply voltage: The system power supply voltage range is 20 to 32V dc, and the working output/field voltage range is 18 to 60V dc.
Output channels: It has 40 output channels, divided into 8 independent power supply groups, with 5 outputs per group.
Output characteristics: The measurement range of output voltage is 0 to 32V DC, with a high tolerance of -1 to 40V DC. The rated output current (continuous) is 2A per channel of each power pack (limited to 8A). The output closed state resistance is 33 Ω, and the output open state resistance is 0.5 Ω.
Protection function: It has output short-circuit protection (electronic locking) and a 2500V pulse withstand photoelectric isolation barrier.
Working environment: The working temperature is -5 ℃ to 60 ℃, and the working humidity is 5-95% RH non condensing.
Size and weight: The size is 30cm × 3cm × 24.1cm, and the weight is approximately 1.13 kilograms.

Product Performance
High reliability: Adopting reliable circuit design and technology, with automatic overcurrent protection, no need for external fuses, and photoelectric isolation barriers, it can operate stably in industrial environments.
Strong diagnostic function: providing comprehensive and automatic diagnostic and self checking functions, each channel can automatically monitor the circuit, detect faults such as open and short circuits, and also support 1ms resolution airborne event sequence reports, making it easy to quickly locate problems.
Good flexibility: It includes multiple independent power packs to meet the power needs of different devices, and supports multiple input and output configurations. It can flexibly set parameters and programming according to application requirements.
High maintainability: The module supports online hot swapping and can be configured using dedicated adjacent slots or SmartSlot, reducing system downtime and improving maintenance efficiency.
