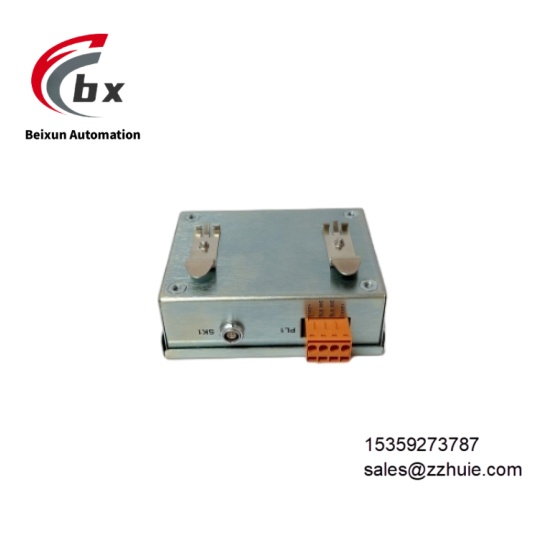

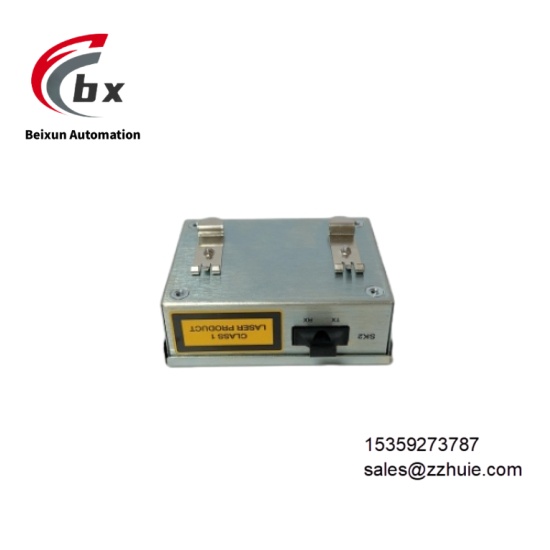

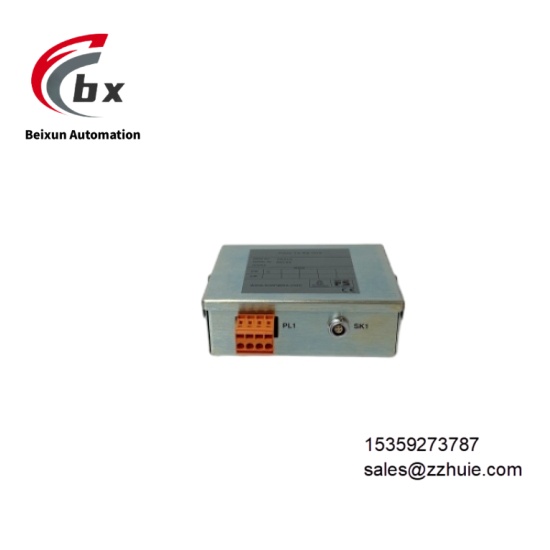

Ics Triplex T8314 Fiber optic transmission/reception unit

Ics Triplex T8314 Fiber optic transmission/reception unit

Specific Parameters​

Electrical Parameters​

Operating Voltage Dual 24VDC diode redundant power supply, input range 18-32VDC​

Maximum Power Consumption 1.7W, low-power design reduces energy consumption​

Transmitter Power Minimum -15dBm, meeting long-distance transmission requirements​

Receiver Sensitivity -28dBm, ensuring stable reception of weak signals​

Propagation Time Difference Maximum 80ns, ensuring synchronous signal transmission​

Communication Protocol Compatible with Trusted expander bus protocol​

Connection Interface Equipped with SC-type fibre optic connectors, including transmitter (TX) and receiver (RX) dual interfaces​

Protection Features Built-in reverse power protection, overcurrent protection, short circuit protection​

Mechanical Parameters​

Overall Dimensions 84mm×110mm×40mm, compact structure suitable for industrial cabinets​

Weight Approximately 0.5kg, lightweight design facilitating deployment​

Mounting Method Supports 35mm DIN rail mounting with convenient installation process​

Housing Material Industrial-grade high-strength metal shell with impact resistance and electromagnetic shielding performance​

Connection Method Fibre optic SC interface + plug-in electrical terminals, compatible with standard cables​

Protection Rating IP20, suitable for indoor industrial control cabinet environments​

Status Indication Equipped with power, communication, fault LED indicators to feedback working status in real time​

Environmental Parameters​

Operating Temperature -20℃ to 60℃, no performance derating over the entire temperature range​

Storage Temperature -25℃ to 70℃, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), suitable for high-humidity industrial scenarios​

Vibration Resistance Complies with IEC 60068-2-6 standard, withstanding conventional operation vibrations​

Shock Resistance Complies with IEC 60068-2-27 standard, withstanding installation and transportation shocks​

EMC Compliance Complies with industrial EMC standards, meeting anti-external electromagnetic interference requirements​

Product Performance​

Excellent transmission distance: Supports 10km long-distance communication via single-mode fibre, meeting remote equipment interconnection needs​

Reliable redundant design: Dual power supply redundancy + independent communication channels, avoiding communication interruption caused by single-point failure​

Accurate signal conversion: Bidirectional conversion between differential signals and fibre optic signals without distortion, propagation time difference controlled within 80ns​

Strong environmental adaptability: Wide temperature operating range and high humidity tolerance, adapting to harsh industrial working conditions​

Outstanding anti-interference ability: Fibre optic transmission medium effectively isolates electromagnetic interference, ensuring stable signal transmission​

Convenient installation and maintenance: DIN rail mounting + modular design, supporting online maintenance and replacement​

High operational stability: Industrial-grade metal shell and multiple electrical protections ensure long mean time between failures​

Wide compatibility: Seamlessly adapts to Trusted series control systems, enabling integration without additional configuration​
