Ics Triplex T8312-4C Expansion interface adapter module

Ics Triplex T8312-4C Expansion interface adapter module

Specific Parameters

Brand ICS Triplex (affiliated to Rockwell Automation), Product Series ICS Triplex Trusted TMR (Triple Modular Redundancy) Series

Product Type Expander Interface Adapter Module, Industrial Communication Module, ICS Triplex Original Spare Part

Model ICS Triplex T8312-4C

Country of Origin United States (Produced by ICS Triplex original factory)

Compatible Devices ICS Triplex Trusted Series Controllers, SCXI Systems, Expander Chassis, SCXI Digital I/O Modules, Analog Input/Output Modules

Core Functions Controller and Expander Chassis Interconnection, SCXI Module Control and Data Acquisition, EMC Shielding, High-Reliability Connection

Redundancy Design Compatible with Triple Modular Redundancy (TMR) Configuration

Interconnection Capacity Supports Connection of 4 Expander Chassis

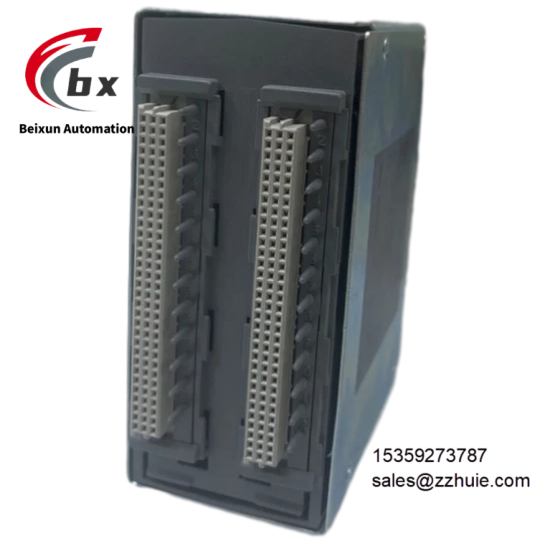

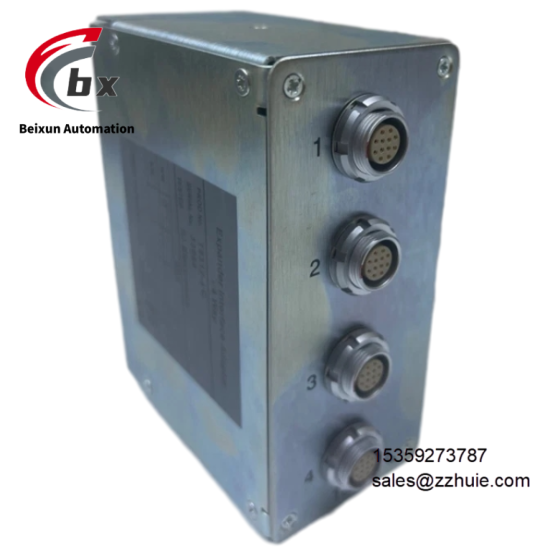

Connector Specification 4 x 12-pin ODU Connectors, 1 x 96-pin C-type DIN 41612 Dual Connector

Electromagnetic Compatibility Fully Shielded Design, Complies with EMC Relevant Standards

Power Supply Voltage 24V DC

Power Consumption 50W

Operating Temperature Range -40℃ to 85℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20

Physical Dimensions 300mm×200mm×100mm

Physical Weight Approximately 5kg

Mounting Method Clip-on Installation, Directly Fixed on the Rear Connector of the Controller Chassis

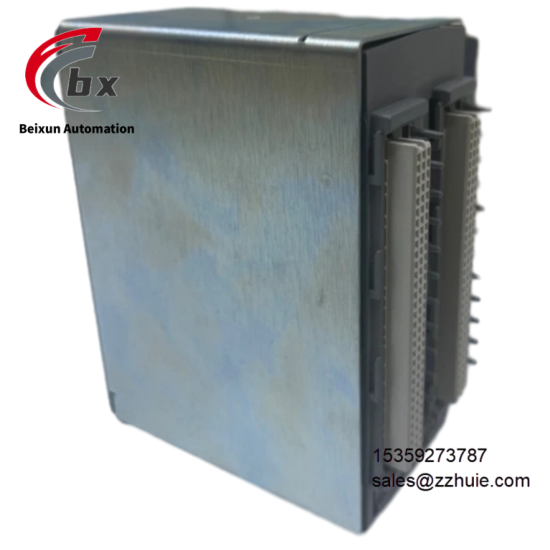

Structural Design Metal Enclosure Package, Equipped with Release Button for Easy Disassembly

Protection Functions Short-Circuit Protection, Overcurrent Protection

Product Material Industrial-Grade Reinforced Metal Enclosure, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with IEC, EMC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

ICS Triplex T8312-4C is an original ICS Triplex device with strong adaptability, which can be seamlessly integrated into ICS Triplex Trusted TMR Series redundant control systems and SCXI systems, with convenient installation and maintenance. The clip-on design with release button facilitates quick installation and disassembly, and the modular structure is conducive to later expansion and troubleshooting. The product has outstanding reliability, adopts a fully shielded design to effectively suppress electromagnetic interference, and the locking connectors ensure stable connection, avoiding poor contact caused by vibration in industrial environments. The metal enclosure package improves structural robustness. The product is compatible with triple modular redundancy configuration, supports efficient interconnection between the controller and multiple expander chassis, with stable data transmission, and can operate continuously and stably in a wide temperature range of -40℃ to 85℃. It has complete overcurrent and short-circuit protection functions, provides efficient and reliable support for redundant control and data acquisition of industrial systems, and ensures long-term stable operation of the system.
