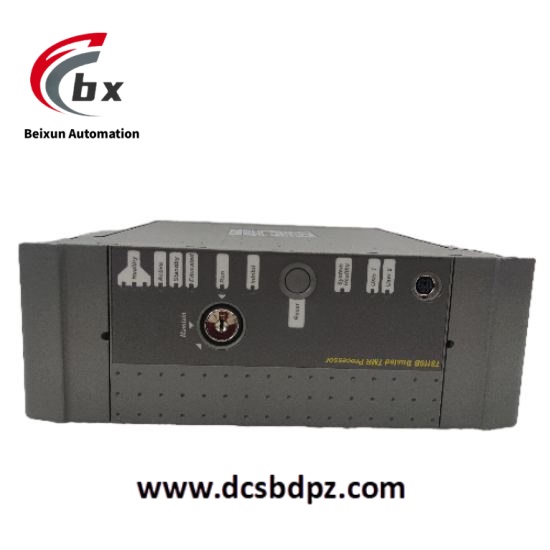

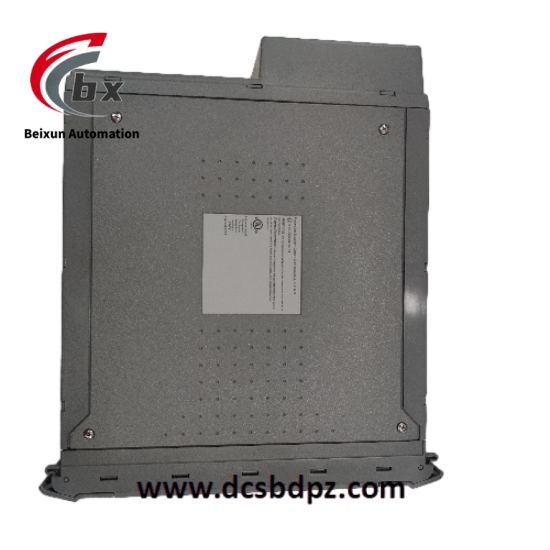

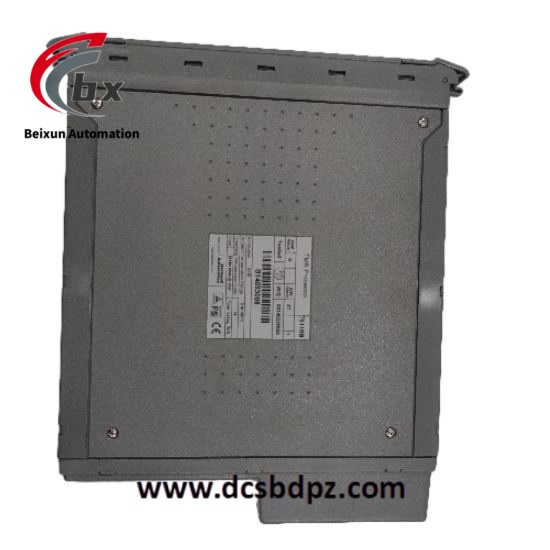

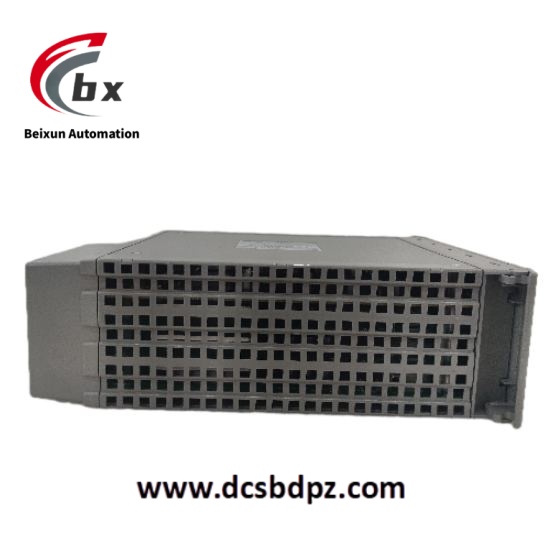

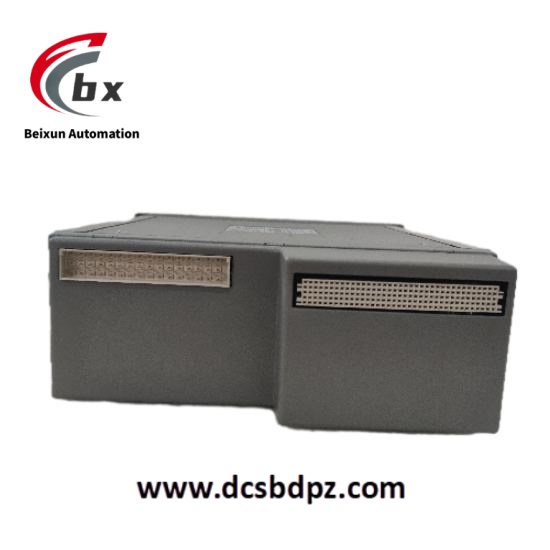

Ics Triplex T8110B High reliability fault-tolerant controller

Specific parameters:
Voltage range: 20Vdc to 32Vdc
Maximum load: 80W
Heat dissipation: 80W
Processor frequency: 100MHz
Memory: 16MB DRAM (60ns), 512KB EPROM, 2MB Flash, 128KB NVRAM
I/O interface: redundant triple module interface
Working temperature: 0 ° C to 60 ° C (32 ° F to 140 ° F)
Non operating temperature: -20 ° C to 70 ° C (-13 ° F to 158 ° F)
Relative humidity range: 10% -95%, non condensing
Dimensions: Height 266mm (10.5 inches), Width 93mm (3.6 inches), Depth 303mm (12.0 inches)
Weight: 2.94kg (6.48 pounds)

Product performance:
Strong fault tolerance: Adopting triple modular redundancy (TMR) architecture and fault-tolerant hardware architecture (HIFT), it has automatic fault control function, does not require invasive alarms, and can quickly detect and respond to faults.
Flexible programming: Supports a full set of IEC 61131-3 programming languages to meet the programming needs of different users.
Convenient diagnosis: The front panel has module health and status indicator lights, making it easy for users to quickly understand the operation of the module; There is also an RS232 front panel serial troubleshooting port available for monitoring, configuration, and programming.
Time synchronization function: Supports IRIG-B 002 and 122 time synchronization signals (only available in T810B), which helps the system to accurately time and coordinate operation.
