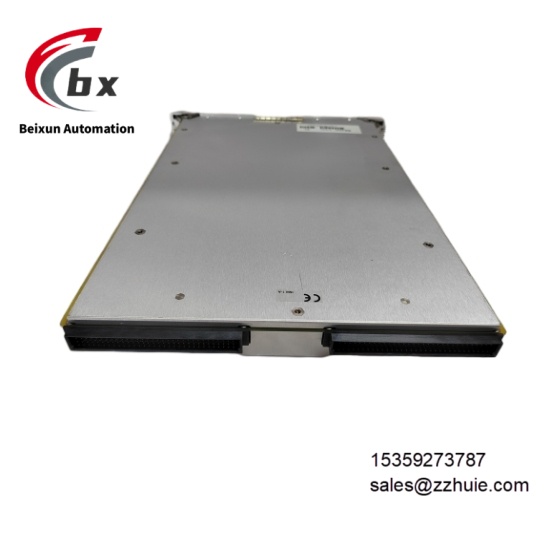

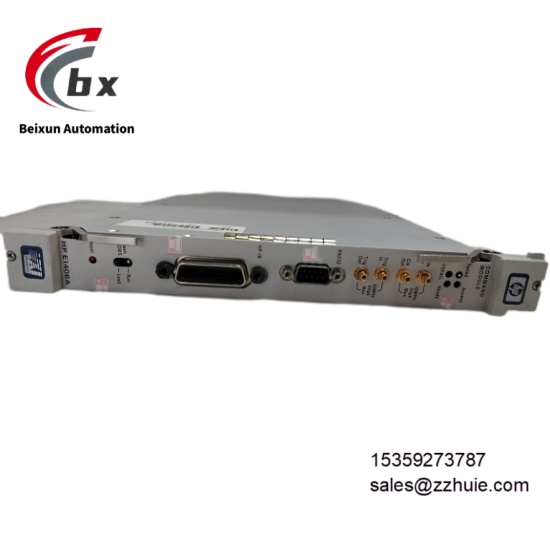

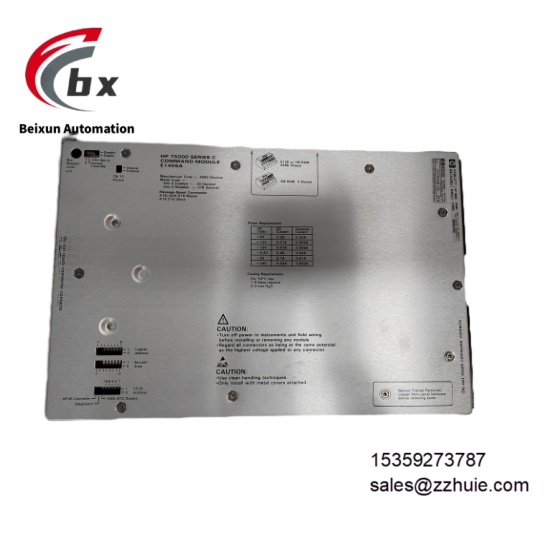

HP E1406A GPIB Command Module

HP E1406A GPIB Command Module

SPECIFIC PARAMETERS​

Brand HP (Keysight/Agilent)​

Product Series VXI Bus Test and Measurement Module Series​

Product Type C-size Single-slot VXI GPIB Command Module​

Working Voltage 18-32VDC Dual Redundant Input​

Working Temperature -20℃ to +60℃​

Storage Temperature -40℃ to +70℃​

Memory Configuration 512KB RAM 1.25MB Flash Optional Upgrade to 1MB RAM 1.75MB Flash​

Communication Interface GPIB IEEE-488 RS-232 VXI Backplane Bus MXIbus Expansion Interface​

Maximum GPIB Transfer Rate 1.5Mbps​

MXIbus Throughput 170Mbyte/s​

Backplane Clock 10MHz Support External TTL Signal Synchronization​

Trigger Interface TTL TRG0-7 ECL TRG0-1 SMB External Trigger​

Protection Level IP30​

Safety Certification CE FCC Class A​

Vibration Resistance 10-2000Hz@5g RMS​

Shock Resistance 100g@11ms Pulse​

Size 3U Height 233.4mm Depth C-size VXI Chassis Slot Specification​

Weight 1.2kg​

Supported Protocols SCPI MXIbus VXI Plug-and-Play VPP IEEE 488.2​

Backup Battery Life 10 Months Maintain Clock and Non-volatile RAM Data​

Power Consumption 15W​

PRODUCT PERFORMANCE​

Adopt industrial-grade PCB design, pass 1000-hour salt spray test and wide-temperature cycle test, and can operate stably in high-humidity and strong electromagnetic interference environments​

Built-in full-module self-test function, perform self-test every 10 seconds, and real-time feedback power communication ready status through panel indicators​

Support hot-swappable operation, which can complete module replacement and maintenance without interrupting system operation​

Equipped with dual redundant power supply input to ensure that the system measurement and control tasks are not interrupted when the power supply link is interrupted​

10MHz backplane clock can be synchronized with external TTL signals to ensure the timing accuracy of multi-module collaborative work​

Compatible with traditional GPIB instruments, can directly connect to devices such as HP 34401A to protect users’ existing investments​

Support online firmware upgrade, which can expand the adaptability to new industrial protocols​

NiCad backup battery can maintain configuration data for 10 months to ensure that system parameters are not lost after power failure​

Has efficient protocol conversion capability, can realize transparent data transmission between GPIB and VXI bus​

Adapt to multi-host high-throughput systems to meet the needs of high-density data acquisition and complex measurement and control command execution​
