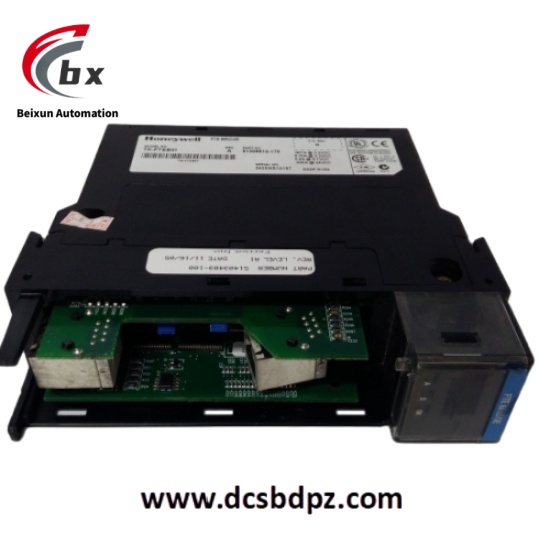

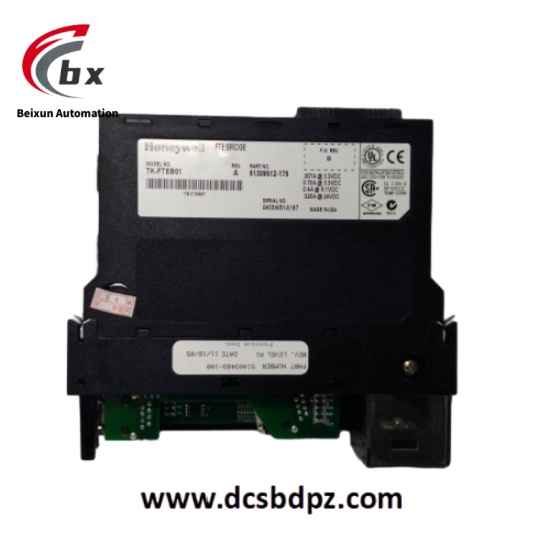

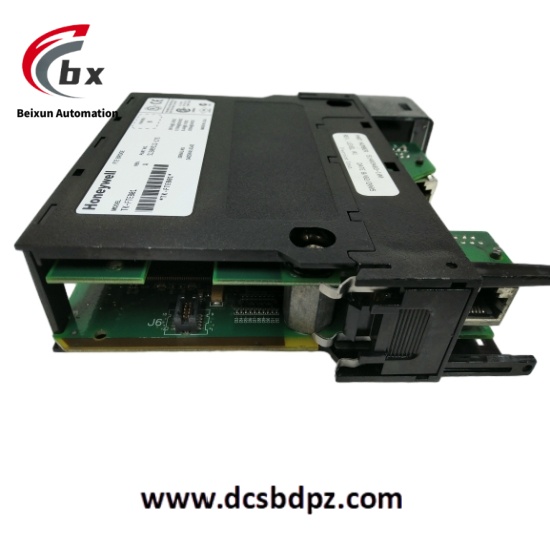

Honeywell TK-FTEB01 51309512-175 Ethernet (FTE) Bridge Module

Honeywell TK-FTEB01 51309512-175 Ethernet (FTE) Bridge Module

Specific Parameters

• Power supply voltage: 18-30V DC
• Power consumption: ≤3W
• Communication protocols: Supports Modbus RTU, IEEE 802.3 standard Ethernet
• Fiber types: Single-mode fiber (15km), multi-mode fiber (2km)
• Data rate: 100Mbps
• Dimensions: 120mm×80mm×40mm
• Weight: 0.28kg
• Operating temperature range: -20°C to +60°C
• Storage temperature range: -40°C to +85°C
• Supported I/O modules: Up to 64 I/O modules per link
• Redundancy architecture: Dual independent communication links, supports C300 controller redundancy

Product Performance

• High-reliability redundant communication: Dual fiber/copper link design ensures uninterrupted data transmission during single-point failures, with redundancy switching time ≤1 second and network availability >99.9%.
• Fast data processing: 100Mbps full-duplex communication rate combined with low latency design (≤5ms) meets real-time control command transmission requirements.
• Intelligent diagnostic function: Built-in status indicators and self-diagnostic mechanisms monitor link status, power voltage, and communication errors in real time, automatically triggering redundancy switching and alarm outputs in case of abnormalities.
• Flexible topology support: Supports star, ring, and other network topologies, with single-mode fiber transmission distance up to 15km, adapting to large-scale industrial site deployment.
• Hot-swap design: Supports online module replacement without system interruption, reducing mean time to repair (MTTR) to within 10 minutes
