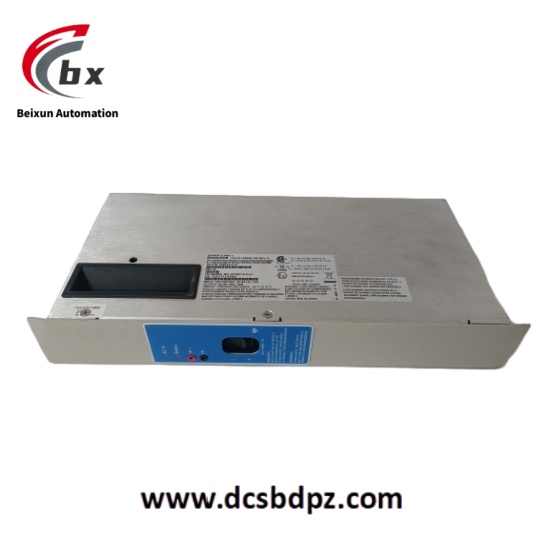

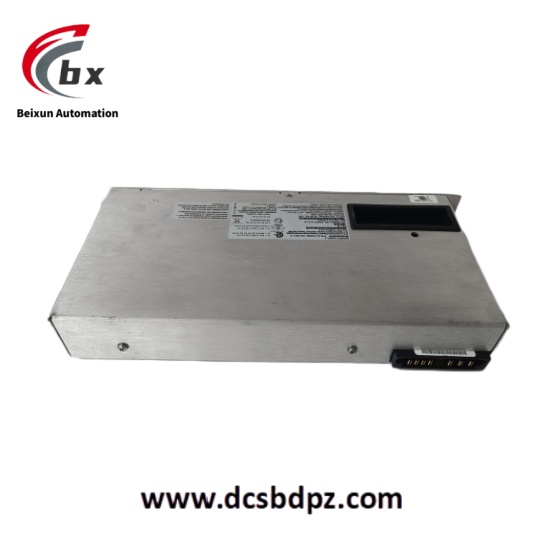

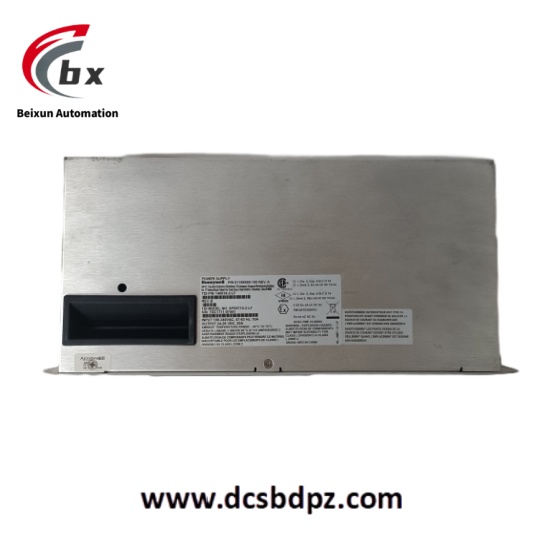

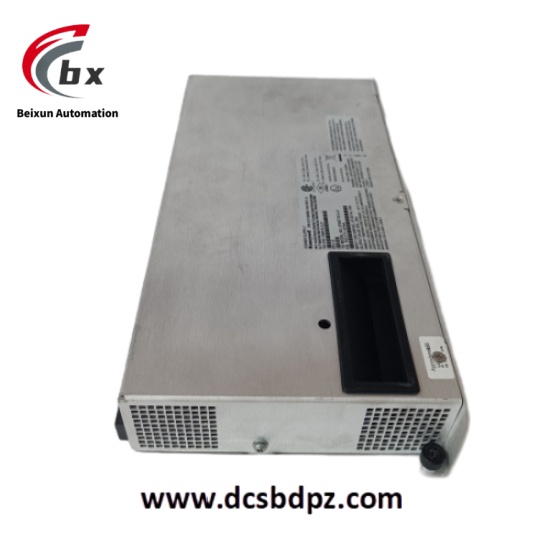

Honeywell SPS5710-2-LF 51198685-100 Programmable System Module
Honeywell SPS5710-2-LF 51198685-100 is an industrial-grade low-power safety programmable system module, designed for safety instrumented systems (SIS) with core functions of executing safety interlock logic and emergency shutdown control. The module adopts dual modular redundancy (2oo2) architecture, supports interaction of multiple safety input and output signals, complies with international safety standards, and is suitable for high-risk industrial scenarios with strict restrictions on power consumption and space. It can effectively reduce process risks and prevent expansion of hazardous events.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell SPS5710-2-LF 51198685-100 Programmable System Module
Specific Parameters
- Power supply voltage: 24V DC±10%
- Maximum power consumption: 18W (typical 12W)
- Safety input channels: 12 channels (supports PNP safety signals, compatible with 0-24V)
- Safety output channels: 6 channels (relay output, 3A per channel, 2NO+1NC)
- Safety level: SIL 2 (IEC 61508), PLd (EN ISO 13849-1)
- Response time: ≤15ms
- Processor specification: 32-bit dual-core safety processor
- Storage capacity: 64MB Flash, 32MB RAM
- Communication interfaces: 1×Safety Bus, 1×Modbus RTU (RS485)
- Operating temperature range: -10°C to +55°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Physical dimensions: 150mm×120mm×50mm
- Module weight: 0.8kg
- Certification standards: TÜV Rheinland certification, IEC 61508, UL 508
Product Performance
- Low-power redundant control: 2oo2 architecture ensures single fault does not cause system failure, with power consumption 30% lower than the basic model of the same series, suitable for scenarios with limited control cabinet space, and safety failure fraction (SFF) ≥95%.
- Reliable safety response: Completes the whole process from signal acquisition to output driving within 15ms, with emergency shutdown command transmission delay ≤5ms, meeting safety control requirements of small and medium-sized devices.
- Flexible signal adaptation: 12 inputs are compatible with emergency stop buttons, safety light curtains and other devices; 6 relay outputs can directly drive valves and contactors without additional power amplification modules.
- Stable environment adaptation: Maintains logic operation accuracy within -10°C to +55°C, vibration resistance complies with IEC 60068-2-6 standard, adapting to general industrial workshop environments.
- Convenient operation and maintenance design: Supports online hot-swap, module status is displayed in real time through two-color LED (running/fault), and diagnostic logs can be viewed remotely with safety configuration tools, reducing fault troubleshooting time to within 15 minutes.
