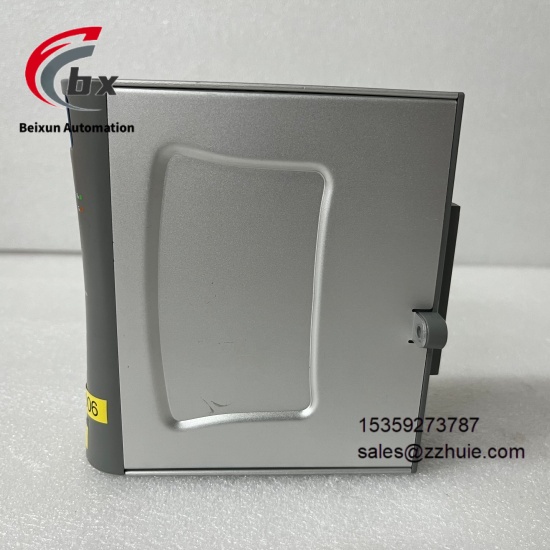

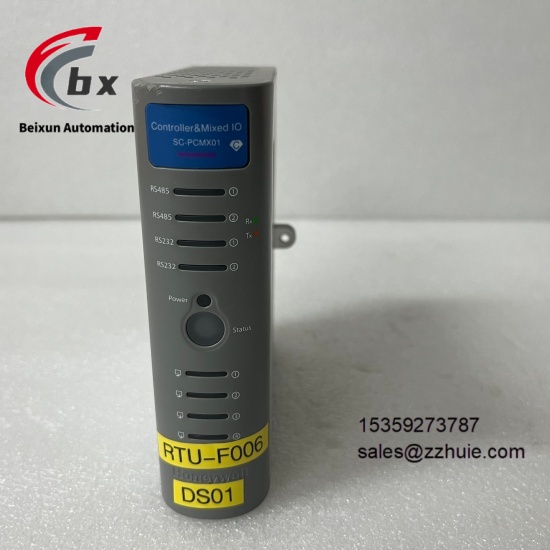

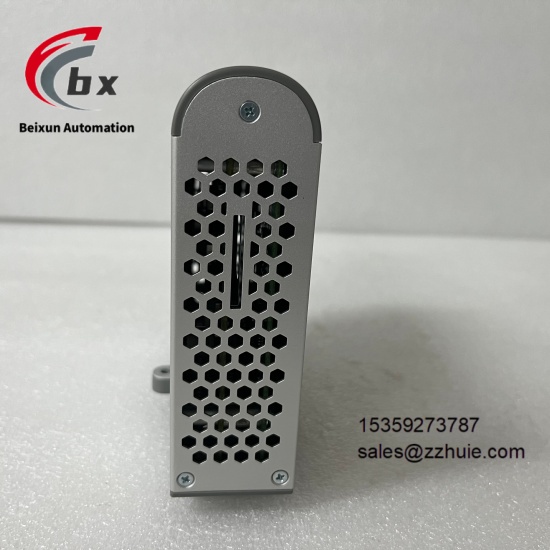

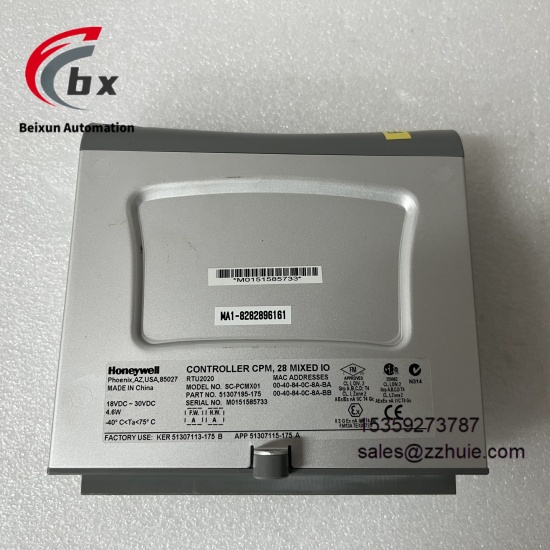

Honeywell SC-PCMX01 51307195-175 Core module of process controller
Specific Parameters
Brand Honeywell
Product Series Experion PKS Series
Product Type Industrial-grade Process Controller Core Module
Model SC-PCMX01 51307195-175
Processor Multi-core industrial-grade processor, main frequency 1.8GHz
Memory 4GB DDR4 RAM, 16GB Flash
Communication Interfaces 2 Gigabit Ethernet interfaces, 4 RS-485 interfaces, 2 USB 3.0 interfaces
Supported Communication Protocols Modbus TCP/IP, OPC UA, Profibus DP, EtherNet/IP
I/O Expansion Capability Supports up to 32 expansion I/O modules, maximum I/O points 2048
Operating Voltage DC 24V ±10%
Operating Temperature Range 0℃ – 60℃
Storage Temperature Range -40℃ – 85℃
Relative Humidity 5% – 95% Non-condensing
Protection Level IP20 (Module-level)
Installation Method Experion PKS standard rack mounting
Dimensions 177mm×267mm×100mm (L×W×H)
Weight Approximately 2.5kg
Power Consumption Typical 35W, Maximum 50W
Safety Integrity Level SIL 3 (complies with IEC 61508 standard)
Certification CE, UL, ATEX, IEC 61508
Redundancy Functions Supports controller redundancy, power supply redundancy, communication redundancy
Response Time ≤1ms
Product Performance
Adopts a multi-core industrial-grade processor with a main frequency of 1.8GHz, which has strong data processing capability and can efficiently execute complex control logic and large-scale data operations
Supports multiple types of redundancy designs (controller, power supply, communication), seamless switching in case of failure, ensuring uninterrupted system operation and improving control reliability
Compatible with multiple mainstream industrial communication protocols and rich communication interfaces, enabling high-speed data interaction with upper computers and on-site equipment, with high system integration flexibility
Has strong I/O expansion capability, supports large-scale I/O point expansion, adapting to the needs of large-scale industrial control scenarios
Complies with the IEC 61508 standard SIL 3 Safety Integrity Level, which can meet the control needs of industrial scenarios with high safety requirements
Comprehensive full-life cycle self-diagnostic functions, real-time monitoring of module operation status, communication links and expansion module status, with accurate and efficient fault location
Wide operating temperature range of 0℃-60℃, combined with industrial-grade anti-electromagnetic interference design, capable of long-term stable operation in harsh industrial environments
Deeply compatible with the Experion PKS control system, supporting online configuration, debugging and program upgrading, simplifying system maintenance and upgrading processes
High-reliability design, MTBF ≥3,000,000 hours, meeting the 24-hour continuous operation needs of industrial sites
Equipped with data encryption and secure communication functions to ensure the security and integrity of control data transmission
