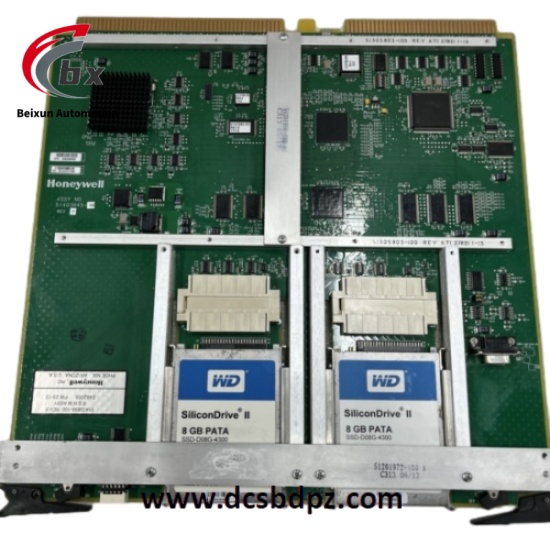

Honeywell SBHM 51403645-100 Driver module
Honeywell SBHM 51403645-100 is an industrial-grade driver module designed for Honeywell distributed control systems (DCS), with core functions of converting control signals into drive signals required by actuators to achieve precise control of process variables. The module adopts industrial-grade components and modular design, supports driving various types of actuators, and can cooperate with other I/O modules to form a complete control loop, suitable for industrial automation scenarios with high requirements for reliability and control accuracy.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell SBHM 51403645-100 Driver module
Specific Parameters
- Power supply voltage: 24V DC±10%
- Maximum power consumption: 8W
- Number of output channels: 4 channels (independently isolated)
- Output signal types: 4-20mA, 0-10V, dry contact (passive)
- Driving capacity: Maximum load 2A@24V DC per channel
- Isolation voltage: 2500V AC between channels, 2500V AC between channels and power supply
- Operating temperature range: -40°C to +70°C
- Storage temperature range: -40°C to +85°C
- Protection class: IP20
- Physical dimensions: 170mm×110mm×50mm
- Module weight: 1.2kg
- Communication interface: Connected to DCS controller via system bus
- Certification standards: UL 508, IEC 61010-1
Product Performance
- High-precision drive control: Output signal accuracy reaches ±0.1% full scale, combined with dynamic response compensation technology, which can achieve precise adjustment of process variables such as valve opening and motor speed, with control deviation ≤0.5%.
- Multi-type actuator adaptation: Supports 4-20mA analog output and digital dry contact output, and can directly drive pneumatic control valves, electric actuators, solenoid valves and other equipment without additional conversion modules.
- Strong anti-interference ability: 2500V AC isolation design effectively suppresses electromagnetic interference in industrial sites, improves signal transmission stability by more than 95%, and maintains stable output in strong vibration environments.
- Wide-temperature stable operation: Maintains drive performance unchanged within -40°C to +70°C, with no performance attenuation in 5%-95% humidity (non-condensing) environment, adapting to extreme industrial environments such as refineries and chemical plants.
- Convenient maintenance design: Supports online hot-swap replacement, LED indicators on the module surface display power, communication and channel status in real time, and with system diagnostic functions, fault location time is reduced to within 10 minutes.
