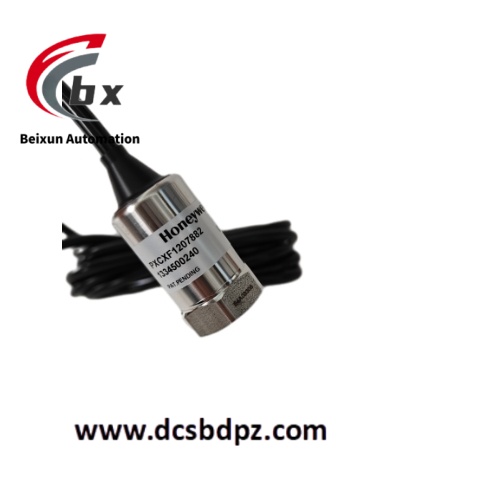

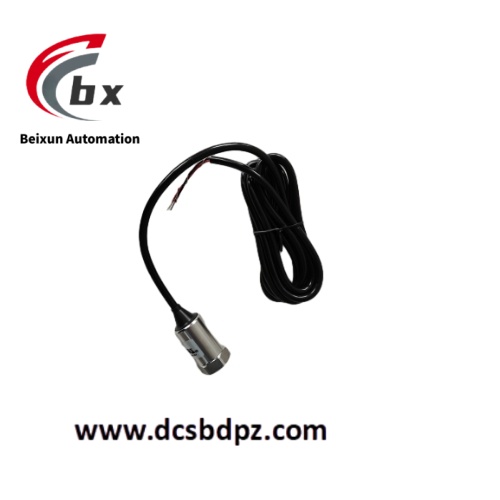

Honeywell PXCXF1207882 Pressure sensor

Specific Parameters

Operating environment temperature: Ranging from -10°C to 55°C, with a humidity range of 5% to 95% relative humidity, it can operate stably under various normal industrial environment temperature and humidity conditions.
Storage environment temperature: From -40°C to 65°C, with 5% to 95% relative humidity, ensuring that the product’s performance is not affected under different storage conditions.
Maximum working medium temperature: Can reach up to 130°C, suitable for industrial scenarios involving high – temperature media.
Input signals: Supports voltage inputs, including 0 – 10VDC and 2 – 10VDC, with an input impedance > 100KΩ; supports current inputs, including 0 – 20mA and 4 – 20mA, with an input impedance < 0.125KΩ, and can be adapted to a variety of signal sources.
Feedback signals: The feedback signals are diverse, covering 0 – 10VDC, 2 – 10VDC, 0 – 20mA, and 4 – 20mA, facilitating efficient docking with various control systems.
Upper cover material: Made of PC plastic, with good protection performance and durability.
Shell material and bearing capacity: The plastic shell can withstand 600N of external force, and the cast – aluminum shell can withstand 1800N of external force, ensuring sufficient mechanical strength for the product in different application scenarios.
Bracket material: Cast – aluminum material is selected to ensure stable structure.
Terminal block specification: The terminal block specification is 1.5mm², meeting the wiring requirements of industrial standards.
Cable interface: Equipped with a PG13.5 cable interface, and PG13.5 and PG9 interfaces are reserved, facilitating the connection of different – sized cables and enhancing installation flexibility.
Electrical protection class: Reaches Class III (EN60730 – 1), providing reliable electrical safety protection.
Protection class: The protection class is IP54 (EN60730), effectively preventing dust and water splashing and adapting to harsh industrial environments.

Product Performance

High – precision measurement: It has excellent pressure measurement accuracy, capable of accurately capturing pressure changes, providing reliable pressure data for industrial production processes, ensuring the stability and accuracy of the production process, and effectively avoiding production problems caused by pressure data deviation.
High environmental adaptability: It has a wide operating temperature range, being able to work normally from -10°C to 55°C, and a storage temperature range from -40°C to 65°C. It can also adapt to an environment with a relative humidity of 5% to 95%, maintaining stable performance under various complex climatic and storage conditions. The maximum working medium temperature can reach 130°C, meeting the requirements of medium temperature in a variety of industrial scenarios.
Reliable signal transmission: It supports a variety of common input signal types, and its input impedance meets industrial standards, enabling stable connection with various signal sources. The rich feedback signals facilitate accurate information interaction with the control system, ensuring that pressure data is transmitted to the control center in a timely and accurate manner.
Robust and durable: The PC plastic upper cover, different shell materials with bearing capacities, and the cast – aluminum bracket jointly ensure the mechanical strength and durability of the product. It can withstand certain external impacts, reducing the risk of damage caused by external forces. The cable interface design and the IP54 protection class can effectively prevent dust and water splashing, ensuring the safety of the internal circuit in a complex industrial environment, reducing the probability of failure, and improving the reliability and service life of the product.
