Honeywell LG1093AC01 High performance flame detector

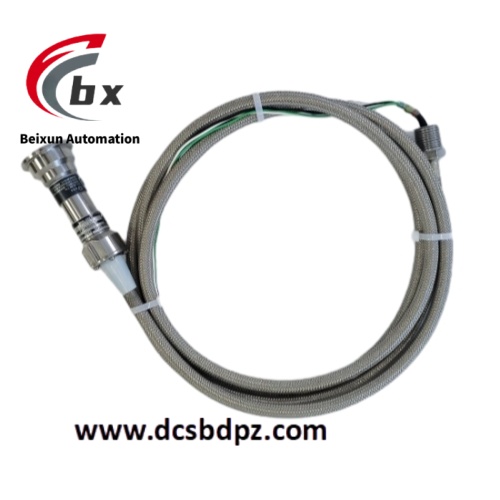

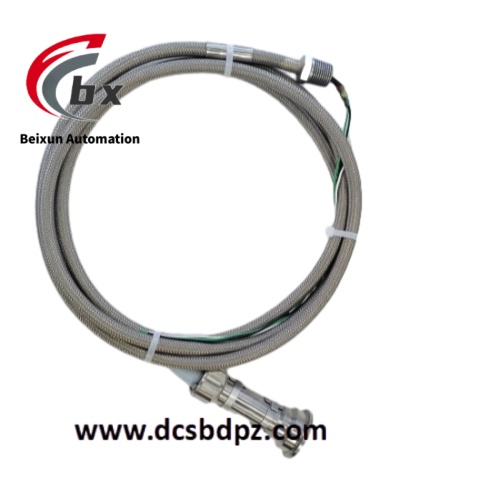

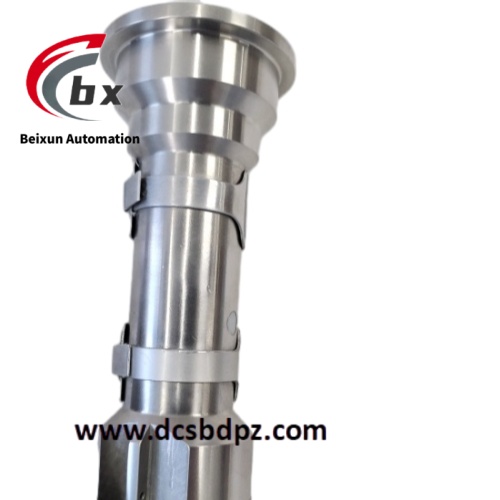

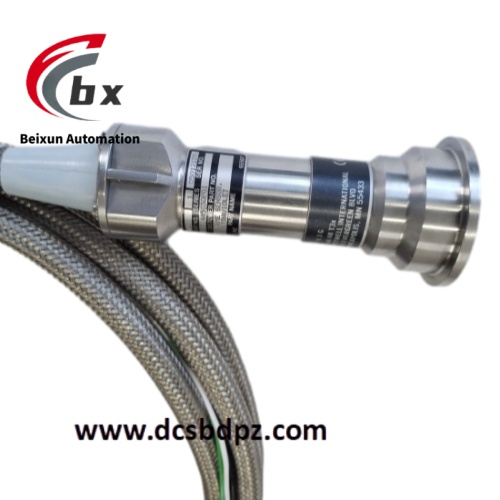

The Honeywell LG1093AC01 is a high - performance flame detector specifically designed for Honeywell's gas turbine flame monitoring system. It is equipped with a Geiger Mueller - type sensor phototube, which can accurately detect the ultraviolet (UV) radiation emitted by hydrocarbon flames in the 180 - 260nm spectral range, thus reliably indicating the presence or absence of a flame in complex industrial environments. The product has a compact structure, with a 1.73 - inch outer diameter flange and a 0.14 - inch wide viewing window, and comes with a 9 - foot (2.7 - meter) armored cable for easy installation and use.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
Honeywell LG1093AC01 High performance flame detector
Specific Parameters
- Detection technology: Uses a Geiger Mueller – type sensor phototube to detect UV radiation in the 180 – 260nm range, has solar – blind characteristics and is tolerant to black – body radiation.
- Hardware output: Compatible with EG 1033 amplifier modules. For example, EG 1033 AA has a transistor open – collector output; EG 1033 AB and EG 1033 AC have relay contacts (SPDT) output.
- Flame present response time: The typical value is 0.1 seconds, with a rapid response.
- Flame loss response time: Up to 0.2 seconds.
- Power supply voltage: Supports multiple voltage requirements such as 28VDC, 20 – 35VDC and 115VAC.
- Operating temperature range: -40°C to 176°C.
- Operating distance from sensor to amplifier: Up to 330m (1000ft).
- Shelf – life: Two years.
- Mean Time Between Failures (MTBF): 10000 hours.
- Protection certifications: Has the European CE certification, meeting the requirements of EMC 89/336/EEC and LVD 73/23/EEC directives, as well as ATEX explosive atmosphere 94/9/EC certification (Eex d IIA T3 or Eex d IIC T3, Zone 1 and 2); also has the Factory Mutual (FM) approval for explosive atmospheres (Class I, Division 1 and 2, Groups B, C and D) in the United States.
Product Performance
- High sensitivity and fast response: It is extremely sensitive to changes in flame status. The typical flame present response time is only 0.1 seconds, and the maximum flame loss response time is 0.2 seconds. It can quickly and accurately capture changes in flame status, providing timely early warnings for the safe operation of gas turbines and greatly reducing safety risks caused by abnormal flames.
- Wide voltage adaptability: It supports a variety of commonly used industrial power supply voltages, can be flexibly adapted to different power supply systems, reduces installation and usage problems caused by power supply incompatibility, and improves the product’s versatility in different scenarios.
- Long – distance signal transmission: The operating distance between the sensor and the amplifier can reach up to 330m. Even in large – scale gas turbine equipment or complex industrial layouts, it can ensure stable signal transmission and accurately feedback flame detection information, guaranteeing the integrity and reliability of the monitoring system.
- High reliability and stability: It has a shelf – life of two years and a MTBF of 10000 hours. It has also passed a number of strict protection certifications, and can operate stably in harsh industrial environments and complex electrical environments, reducing equipment maintenance frequency and lowering operating costs.
- Resistant to harsh environments: Designed for industrial environments, with an operating temperature range of -40°C to 176°C, it can withstand high temperatures, vibrations, and other harsh conditions, ensuring normal operation under various complex working conditions.
