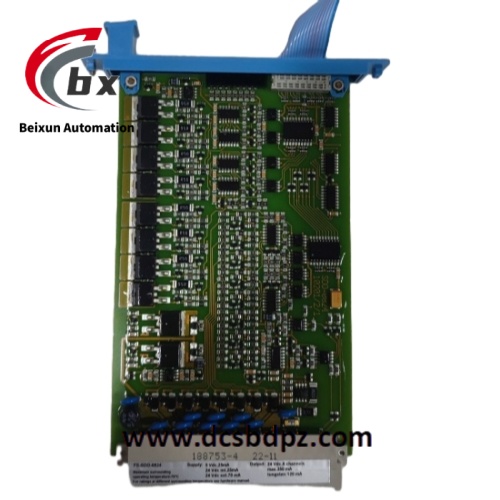

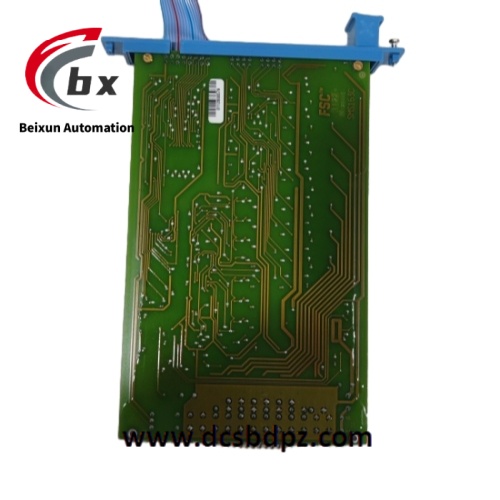

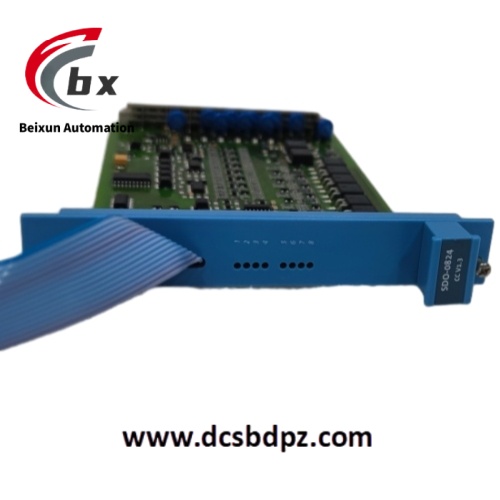

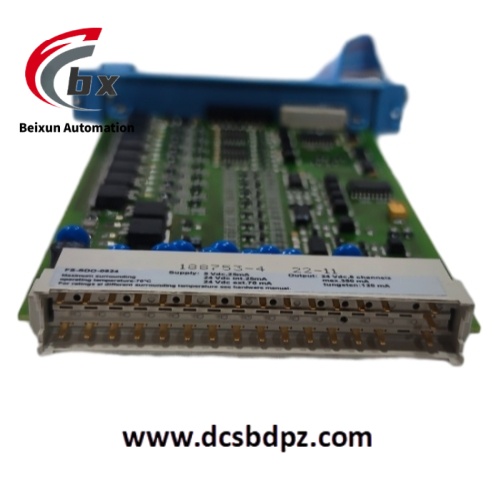

Honeywell FS-SDO-0824 Secure Digital Output Module

The Honeywell FS-SDO-0824 is a safe digital output module specifically designed for industrial automation and control systems. This module features 8 output channels, each capable of providing 24Vdc voltage and 550mA current, and can drive loads up to 13W. It is suitable for driving resistive elements such as lamps or inductive devices like solenoids. To ensure the safe operation of inductive loads, each output is equipped with a suppression diode, and all outputs and suppression diodes have passed safety application tests. The module is equipped with a watchdog timer. If no valid signal is received within a specific time, it will reset the output to ensure system stability and reliability. It is compatible with a variety of Honeywell safety controllers, such as Safety Manager 4000, Safety Manager 5000, and Safety Manager 6000, and also supports third-party safety controllers compliant with EN61508 SIL2 or SIL3 standards, making it convenient to integrate into existing automation systems. The module adopts a solid metal housing with a protection level of NEMA 4X and IP66, capable of withstanding dust, moisture, and other harmful substances in harsh industrial environments. It uses a DIN rail mounting method, which is simple and quick for installation and maintenance.

Tag：Honeywell FS-SDO-0824

Honeywell FS-SDO-0824 Secure Digital Output Module

Specific Parameters

Supply voltage: 24Vdc internally with a current of 25mA; 24Vdc externally with a current of 70mA when there is no output load.
Output channels: 8.
Output specification: 24Vdc solid-state power supply with short-circuit protection.
Maximum current: 550mA (limited to 350mA at 70°C).
Maximum lamp load: 120mA (2.9W).
Maximum load capacitance: 1µF.
Voltage drop: Less than 2.0Vdc at 500mA.
Watchdog input current: 8mA.
Dimensions: 120mm×76mm×32mm.
Operating temperature: -20°C to +70°C.
Protection level: NEMA 4X and IP66.
Installation method: DIN rail mounting.

Product Performance

Powerful driving ability: It can provide stable power output for a variety of industrial equipment, meet different load requirements, and ensure the normal operation of equipment.
High reliability: The watchdog timer and perfect output protection mechanism can effectively deal with problems such as abnormal signals and load failures, ensuring the stable operation of the system.
Good compatibility: It is compatible with many Honeywell and third-party safety controllers, facilitating system integration and upgrading, and reducing system construction costs.
Strong environmental adaptability: The solid housing and high protection level enable it to work stably in harsh environments, reducing the impact of environmental factors on the module performance.
Convenient installation and maintenance: The DIN rail mounting method makes the installation process simple, convenient for daily maintenance and troubleshooting, and reduces downtime.
