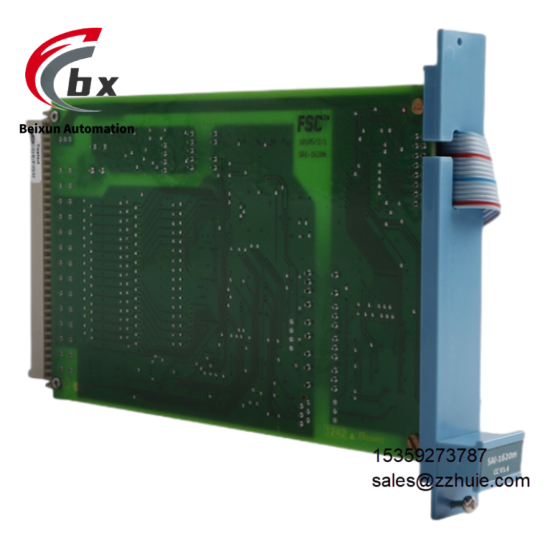

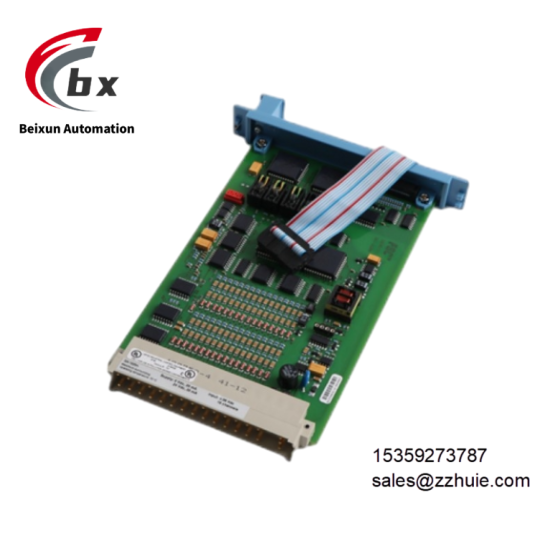

Honeywell FS-SAI-1620m Analog input module
Specific Parameters
Brand Honeywell
Product Series Honeywell SIS (Safety Instrumented System) Product Line
Product Type Safe High-Density Analog Input Module, 16-Channel I/O Module, Industrial Control Module, Original Spare Part
Model Honeywell FS-SAI-1620m
Country of Origin USA (Produced by Honeywell original factory)
Compatible Devices Honeywell TPS DCS Systems, Safety Controllers, Various Analog Sensors, Industrial Automation Control Equipment
Number of Input Channels 16 Universal Analog Input Channels, Channels Can Be Independently Configured
Input Type Configurable Voltage, Current, Resistance Signals, Supporting 0-4.1V Input Range
Input Resistance ＞1MΩ
A/D Converter 12-bit, Conversion Accuracy ±1LSB
Module Inaccuracy ＜0.25%
Absolute Maximum Input Signal ±36VDC
Cross Talk Between Channels ＞60dB
Leakage Current per Point Typical: 2.5mA, Maximum: 3.3mA
Supply Voltage 5VDC, 24VDC, Both 35mA
Rated Power Consumption 100VA
Operating Temperature Range -40℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions Conforms to 4TE, 3HE (4HP, 3U) Standard Dimensions
Physical Weight Approximately 3kg-5kg
Mounting Method 19-inch Standard Rack Mounting, DIN Rail Mounting
Status Indication On-board Blown-Fuse Indicator, Lights Up When Fault Occurs
Core Functions Analog Signal Acquisition, Signal Conditioning, Independent Channel Protection, Fault Indication
Product Material Industrial-Grade Metal Housing, Flame-Retardant Circuit Board
Customizable No
Certification Standards Complies with CE, TUV, UL, CSA, FM Certification Standards, Complies with IEC 62443 Industrial Network Security Standard
Warranty Period 12 Months
Product Performance
Honeywell FS-SAI-1620m is an original Honeywell module with strong adaptability. It can be seamlessly integrated into Honeywell TPS DCS systems and safety instrumented systems, with convenient installation, independent channel configuration, and can stably realize accurate acquisition and conditioning of 16 channels of analog signals.
Equipped with a 12-bit high-precision A/D converter, it has high module accuracy and low channel crosstalk, can accurately collect various analog signals. Each channel is protected by a fuse, and with the blown-fuse indicator, it can quickly locate fault channels, making operation and maintenance convenient.
It has strong wide temperature adaptability, can operate stably in harsh industrial environments from -40℃ to +70℃ for a long time, excellent anti-electromagnetic interference and anti-vibration capabilities, industrial-grade metal packaging design, good dustproof and moisture-proof performance, and high operational reliability.
It has reasonable power consumption, compact structure, supports both rack and rail mounting methods, is compatible with various industrial scenarios, can be directly connected to various analog sensors, provides stable and accurate signal support for industrial control and safety monitoring, and reduces operation and maintenance costs.
